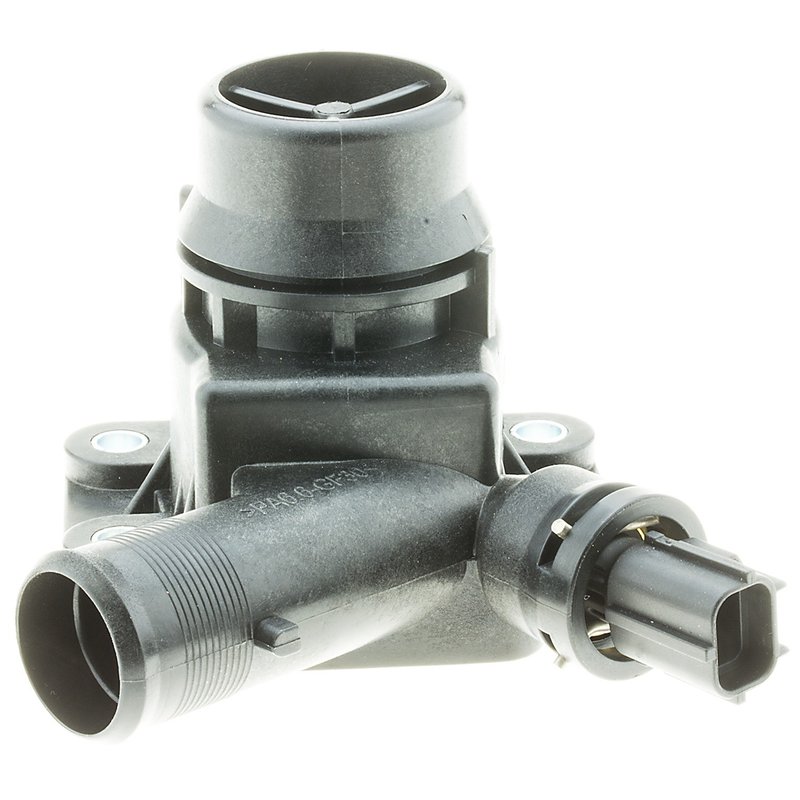

Motorad 711-195 Engine Coolant Thermostat Housing Assembly

Overview of Motorad Integrated Housing Thermostat 711-195

The Motorad Integrated Housing Thermostat 711-195 is designed for precise engine temperature regulation in select Land Rover and Volvo models. This engine coolant thermostat housing assembly ensures reliable cooling system performance with a 195°F opening temperature.

• Compatible with Land Rover LR2 and Volvo S60, S80, V60, V70, XC60, XC70, XC90
• Integrated Housing Thermostat product line for streamlined installation
• Constructed from plastic, stainless steel, and copper for durability
• Includes one rubber gasket/seal for secure sealing
• Four bolt holes for stable mounting
• Two outlet ports with diameters of 1.66 inches and 0.99 inches
• Does not include bolts, hardware, jiggle pin, or installation tools

Product Line Details: Integrated Housing Thermostat

The Motorad Integrated Housing Thermostat line combines the thermostat and housing into a single assembly, simplifying replacement and reducing potential leak points. This design is engineered to meet OEM specifications, providing consistent temperature control at 195 degrees Fahrenheit. The integrated approach supports efficient coolant flow and helps maintain optimal engine operating temperatures in compatible Land Rover and Volvo vehicles.

Technical Description and Features

The 711-195 thermostat housing assembly features a robust construction using plastic, stainless steel, and copper materials to withstand engine heat and pressure. It includes a single rubber gasket to ensure a tight seal between the housing and engine block, preventing coolant leaks. The assembly has four bolt holes for secure attachment and two outlet ports sized at 1.66 inches and 0.99 inches to accommodate coolant flow. The thermostat starts to open at 195°F, regulating engine temperature effectively without a bleeder hole or jiggle pin.

Common Applications and Problem Resolution

• Replacement for faulty or leaking thermostat housings in Land Rover LR2 and Volvo S60, S80, V60, V70, XC60, XC70, XC90
• Resolves engine overheating caused by thermostat failure
• Prevents coolant leaks due to worn or damaged seals
• Addresses inconsistent engine temperature regulation
• Eliminates issues related to cracked or warped thermostat housings

Installation Notes and Tips

• Ensure engine is cool before beginning installation to avoid burns
• Use the included rubber gasket for proper sealing; do not reuse old gaskets
• Torque bolts evenly across the four mounting holes to manufacturer specifications
• Verify outlet port connections match existing coolant hoses
• Check for leaks after installation and during initial engine operation

Quality Assurance and Warranty

The Motorad Integrated Housing Thermostat 711-195 is manufactured to meet industry standards for durability and performance. While hardware and installation tools are not included, the assembly is designed for straightforward replacement. Warranty coverage details should be confirmed with the original equipment provider or distributor.
