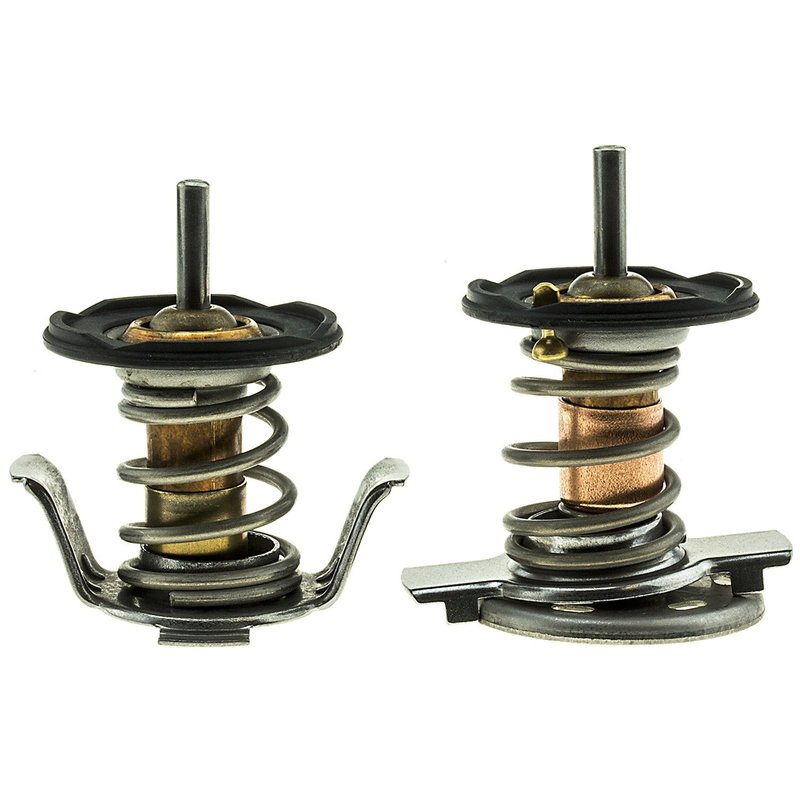

Motorad 716-200 Engine Coolant Thermostat
| Brand | Motorad 716-200 |
|---|---|
| Gasket Or Seal Included | Yes |
| Gasket/Seal Material | Rubber |
| Gasket/Seal Material | Rubber |
| Installation Tool Included | No |
| Jiggle Pin Weep Hole | Yes |
| Number Of Seals | 1 |
| Sealing Flange Outside Diameter | 0.94 |
| Temperature | 200 Deg. F |
| Temperature (Degree) | 200 |
| Product line | Heavy Duty Thermostat |
| Fits | Ford · 6 vehicles |
OE supplier quality. Built with OEM materials and manufacturing standards.
Rapid response. Copper case and wax compound react quickly to coolant temperature changes.
Seal included. Rubber gasket or seal is included for installation.
Cross-references Dayco 71600, Motorad 716-200 and Stant 49200 for the same application. See all 17.
Heavy Duty Cooling Control
Motorad Heavy Duty Thermostat 716-200 is an engine coolant thermostat built for demanding cooling systems. It uses OEM-quality materials and OE-supplier manufacturing processes to deliver consistent temperature control in Ford Super Duty applications.
This thermostat is specified at 200 Deg. F and includes a rubber gasket/seal, a jiggle pin weep hole, and an offset design with air relief valve features where applicable. The copper case and wax compound are engineered for quick reaction to coolant temperature changes.
Key Features
- Engine coolant thermostat for heavy-duty cooling service
- 200 Deg. F temperature rating
- Copper case and wax compound for responsive temperature regulation
- Offset design with air relief valve where applicable
- Rubber gasket/seal included
- Jiggle pin weep hole for air bleeding during service
- OEM specifications and processes used in manufacturing
Application Details
Compatible with 2008-2010 Ford F-250 Super Duty and 2008-2010 Ford F-350 Super Duty. Fits 2008-2010 Ford F-250 Super Duty, N/A. Fits 2008-2010 Ford F-350 Super Duty, N/A. This Motorad 716-200 thermostat is also cross-referenced to Stant 49200 for the same application.
The Heavy Duty Thermostat product line is aimed at vehicles that need stable coolant control under load. For Ford F-250 Super Duty and Ford F-350 Super Duty service, Motorad 716-200 supports OE-specified temperature control with a housing seal and thermostat insert style noted in the fitment data.
What It Helps Address
- Engine running too cool or too hot due to thermostat wear
- Delayed coolant flow regulation after warm-up
- Air trapped in the cooling system after service
- Temperature fluctuation under towing or heavy-duty operation
- Cooling system service on Ford Super Duty trucks
Installation Notes
Verify the OE-specified temperature and housing style before installation. The fitment notes indicate thermostat insert use and housing seal inclusion where applicable. Clean the sealing surfaces thoroughly and confirm the rubber seal is seated correctly before reassembly. The jiggle pin weep hole should be oriented to help purge trapped air during filling.
Quality Assurance
Manufactured by an OE supplier using OEM-quality materials and OEM specifications. The copper case, wax compound, and sealing design are selected to meet the demands of automotive cooling systems.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2010 | Ford | F-250 Super Duty | 6.4L | V8 | N/A | Temperature 192F & 203F; Includes thermostat insert, and housing seal; Insert Only; OE Specified Temperature; Heavy Duty Thermostat |
| 2010 | Ford | F-350 Super Duty | 6.4L | V8 | N/A | Temperature 192F & 203F; Includes thermostat insert, and housing seal; Insert Only; OE Specified Temperature; Heavy Duty Thermostat |
| 2009 | Ford | F-250 Super Duty | 6.4L | V8 | N/A | Temperature 192F & 203F; Includes thermostat insert, and housing seal; Insert Only; OE Specified Temperature; Heavy Duty Thermostat |
| 2009 | Ford | F-350 Super Duty | 6.4L | V8 | N/A | Temperature 192F & 203F; Includes thermostat insert, and housing seal; Insert Only; OE Specified Temperature; Heavy Duty Thermostat |
| 2008 | Ford | F-250 Super Duty | 6.4L | V8 | N/A | Temperature 192F & 203F; Includes thermostat insert, and housing seal; Insert Only; OE Specified Temperature; Heavy Duty Thermostat |
| 2008 | Ford | F-350 Super Duty | 6.4L | V8 | N/A | Temperature 192F & 203F; Includes thermostat insert, and housing seal; Insert Only; OE Specified Temperature; Heavy Duty Thermostat |
