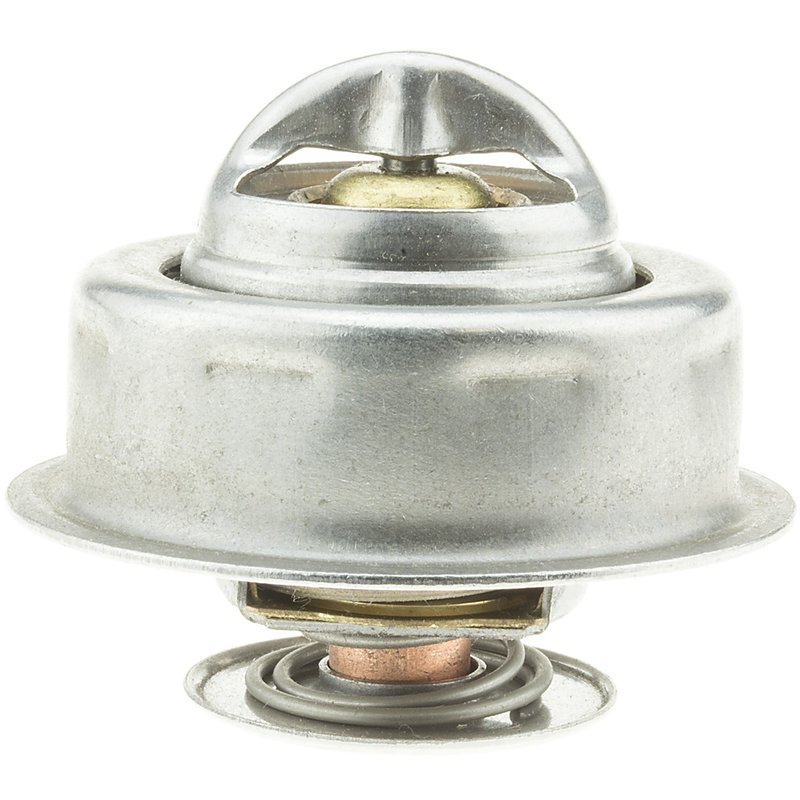

Motorad 7216-192 Engine Coolant Thermostat

Motorad Fail-Safe Thermostat for Volvo Cooling Systems

The Motorad Fail-Safe Engine Coolant Thermostat, part number 7216-192, is built for Volvo cooling system service where OE temperature control matters. It opens at 192°F and uses a copper case with wax compound for quick reaction to coolant temperature changes.

Motorad’s Fail-Safe line is engineered to lock open if overheating occurs, helping maintain coolant flow in critical conditions. This makes the 7216-192 a direct-fit thermostat choice for select Volvo 240, 740, 760, 780, 745, 940, DL, and GLE applications.

Key Features

• Engine coolant thermostat with a 192°F opening temperature
• Fail-Safe design locks open during overheating events
• Copper case and wax compound for responsive temperature control
• Manufactured to OEM specifications and processes
• Offset design with air relief valve where applicable
• OEM-style seals included where applicable
• Sealing flange outside diameter: 2.13 in
• Bypass diameter: 1.16 in
• Bypass length: 0.55 in
• Flange thickness: 0.068 in

Product Details

Motorad 7216-192 is an OE-style thermostat for Volvo cooling system maintenance, including 1991-1995 Volvo 940, 1990-1993 Volvo 240, 1985-1992 Volvo 740, 1989-1991 Volvo 780, 1984-1990 Volvo 760, 1985 Volvo 745, 1984 Volvo DL, and 1984 Volvo GLE. The 192-degree calibration matches OE-specified operating temperature requirements for these applications.

This part cross-references Dayco 71692 for the same application.

What It Helps Address

• Engine running too cool or too warm due to thermostat wear
• Delayed coolant flow control during warm-up
• Temperature instability in the Volvo cooling system
• Overheating protection needs in demanding driving conditions
• Replacement of a thermostat that no longer opens at the correct temperature

Installation Notes

Verify the 192°F temperature rating and match the bypass dimensions, flange diameter, and flange thickness before installation. This thermostat does not include a gasket or seal, and no installation tool is included. Inspect the housing, sealing surfaces, and coolant condition during service, and replace any worn seals or related cooling components as needed.

Quality Assurance

Motorad manufactures this thermostat with OEM-quality materials and safety standards as an OE supplier. The Fail-Safe design, copper case, and wax compound are built to meet OEM specifications for Volvo cooling system service.
