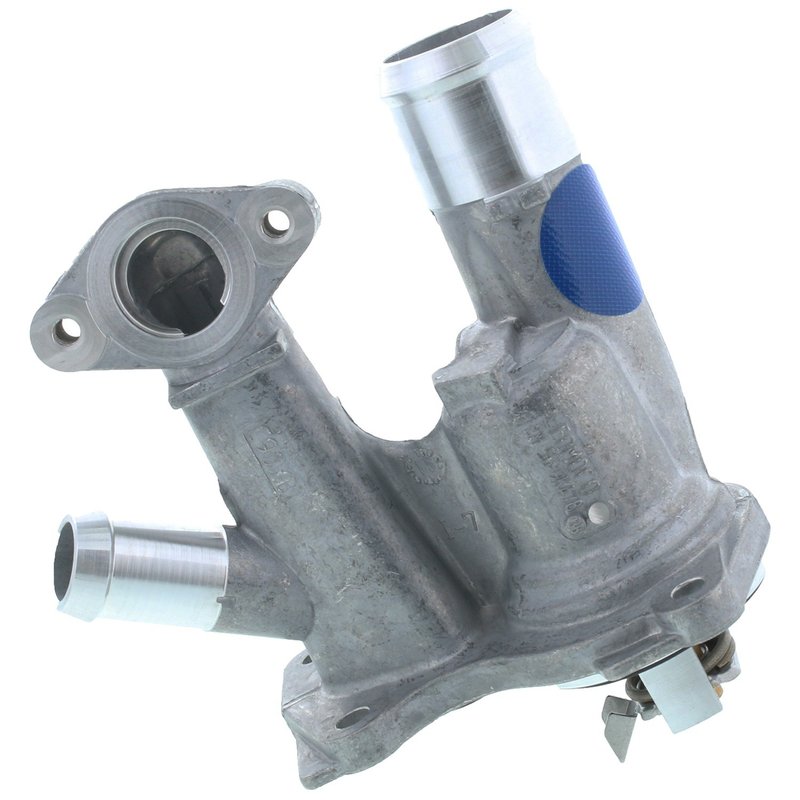

Motorad 736-180 Engine Coolant Thermostat Housing Assembly

Overview of Motorad Integrated Housing Thermostat 736-180

The Motorad Integrated Housing Thermostat 736-180 is designed for reliable engine temperature regulation in select Ford vehicles. This engine coolant thermostat housing assembly ensures precise temperature control to maintain optimal engine performance and prevent overheating.

• Flange dimensions: 4.22 inches length and width, 0.33 inches thickness
• Constructed from durable metal with a silver finish
• Includes two rubber gaskets/seals for secure sealing
• Features 4 bolt holes for stable mounting (bolts not included)
• Three outlet ports with diameters of 1.30 in, 0.80 in, and 0.90 in
• Thermostat opens at 180°F to regulate coolant flow
• Compatible with Ford Escape, Fiesta, Fusion, and Transit Connect models

About the Integrated Housing Thermostat Product Line

The Motorad Integrated Housing Thermostat line combines the thermostat and housing into a single assembly, simplifying installation and improving reliability. This design reduces potential leak points by integrating the thermostat directly within the metal housing, which is engineered to withstand engine heat and pressure. The 736-180 part number represents this integrated approach, providing a precise 180°F opening temperature suitable for maintaining consistent engine coolant flow in compatible Ford vehicles.

Detailed Product Description

This engine coolant thermostat housing assembly is crafted from metal with a silver finish, ensuring durability and corrosion resistance. The flange measures 4.22 inches in both length and width, with a thickness of 0.33 inches, providing a secure mounting surface. It includes two rubber gaskets to create a tight seal and prevent coolant leaks. The assembly features four bolt holes for mounting, though bolts and other hardware are not included. The thermostat integrated within the housing opens at 180 degrees Fahrenheit, allowing coolant to circulate once the engine reaches optimal operating temperature. Three outlet ports with varying diameters accommodate different coolant flow paths, making it suitable for specific Ford models such as the Escape, Fiesta, Fusion, and Transit Connect.

Common Applications and Issues Addressed

• Regulates engine temperature to prevent overheating
• Replaces faulty or leaking thermostat housings
• Restores proper coolant flow in Ford Escape, Fiesta, Fusion, and Transit Connect
• Eliminates coolant leaks caused by worn seals or gaskets
• Ensures consistent engine warm-up and efficient cooling system operation

Installation Notes and Tips

• Ensure engine is cool before beginning installation to avoid burns
• Use the included rubber gaskets to prevent leaks; do not reuse old seals
• Torque bolts evenly across the four mounting holes to manufacturer specifications
• Check coolant levels and refill as necessary after installation
• Verify thermostat operation by monitoring engine temperature after installation

Quality Assurance and Warranty

The Motorad Integrated Housing Thermostat 736-180 is manufactured to meet OEM standards for fit and function. The metal housing and rubber seals are designed for durability under typical engine operating conditions. While specific warranty details are not provided, Motorad products generally adhere to industry quality controls to ensure reliable performance in Ford Escape, Fiesta, Fusion, and Transit Connect vehicles.
