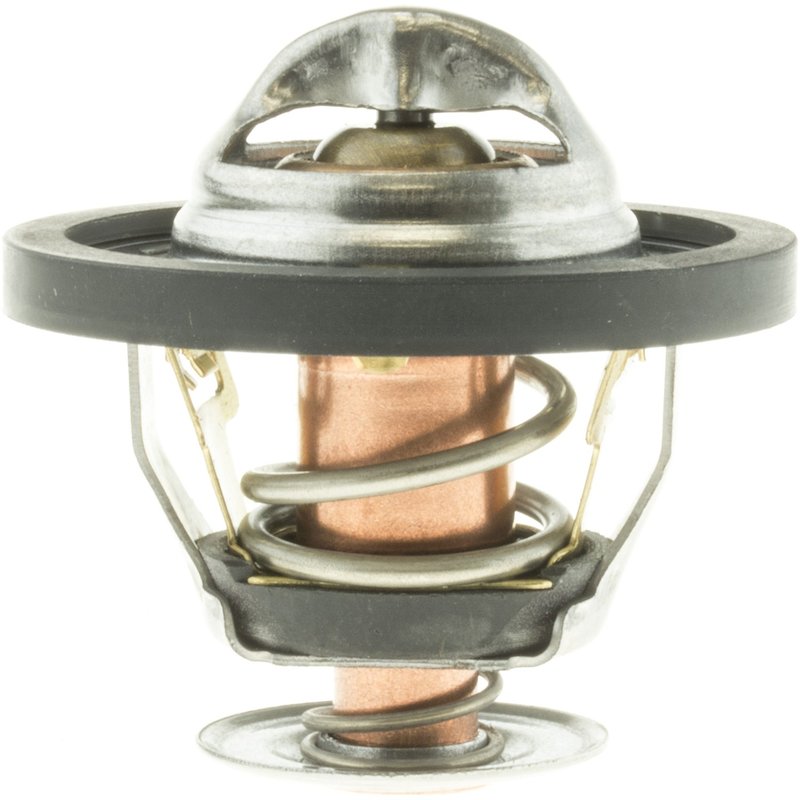

Motorad 7441-170 Engine Coolant Thermostat
| Brand | Motorad 7441-170 |
|---|---|
| Sealing Flange Outside Diameter | 1.97 |
| Gasket Or Seal Included | Yes |
| Jiggle Pin Weep Hole | Yes |
| Bypass Diameter | 1.09 in |
| Bypass Length | 1.25 in |
| Flange Thickness | 0.05 in |
| Gasket/Seal Material | Rubber |
| Gasket/Seal Material | Rubber |
| Installation Tool Included | No |
| Number Of Seals | 1 |
| Temperature | 170 deg. f |
| Temperature (Degree) | 170 |
| Product line | Fail-Safe |
| Fits | Nissan · 7 vehicles |
OE supplier quality. Made with OEM materials and processes for dependable cooling performance.
Copper case. Wax compound responds quickly to coolant temperature changes.
Seal included. Rubber gasket or seal is included where applicable.
Cross-references Motorad 7441-170, 74470 and 97441170 for the same application. See all 6.
Motorad Fail-Safe Thermostat for Sentra
Motorad Fail-Safe 7441-170 is a 170 degree engine coolant thermostat built for 2000-2006 Nissan Sentra applications. It uses OEM-quality materials, a copper case, and a wax compound for quick reaction to coolant temperature changes, with an OE-style seal and air relief features where applicable.
Key Features
- 170 degree Fahrenheit thermostat for OE-specified temperature control
- Fail-Safe design locks open during overheating events to keep coolant flowing
- Copper case and wax compound for responsive temperature regulation
- Includes rubber gasket/seal and jiggle pin weep hole
- Offset design with air relief valve and OEM-style seals where applicable
- Sealing flange outside diameter: 1.97 in; flange thickness: 0.05 in
- Bypass diameter: 1.09 in; bypass length: 1.25 in
Detailed Description
Motorad Fail-Safe 7441-170 is an engine coolant thermostat engineered for Nissan Sentra cooling system service from 2000 through 2006. The Fail-Safe line is designed to remain open after an overheating event, helping maintain coolant circulation when the engine has been pushed beyond normal operating temperature. This thermostat is manufactured to OEM specifications and processes, and the included rubber seal supports a proper housing seal during replacement. This part cross-references 74470 and P7441-170 for the same application.
Common Cooling Issues It Can Address
- Engine running too cool or too warm due to thermostat wear
- Delayed coolant flow after cold start
- Overheating caused by a thermostat that sticks closed
- Temperature fluctuation from a weakened wax element
- Coolant seepage at the thermostat housing seal
Installation Notes and Tips
Compatible With 2000-2006 Nissan Sentra, N/A. Confirm the OE-specified 170 degree thermostat requirement before installation. Inspect the housing, sealing surfaces, and coolant condition during service, and replace the thermostat only after the cooling system has been properly drained and air bled according to factory procedure. The jiggle pin weep hole and air relief features help with air management during refill.
Quality Assurance
Motorad manufactures this thermostat with OEM-quality materials and safety standards as an OE supplier. The Fail-Safe 7441-170 is built to meet OEM specifications for the Nissan Sentra cooling system and to provide consistent temperature control under demanding operating conditions.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2006 | Nissan | Sentra | 1.8L | L4 | N/A | "The patented Fail-Safe (R) thermostat is the only thermostat on the market designed to lock in the open position, allowing coolant to continue to flow in the event of overheating."; Temperature 170F; Includes seal; OE Specified Temperature; Fail-Safe |
| 2005 | Nissan | Sentra | 1.8L | L4 | N/A | "The patented Fail-Safe (R) thermostat is the only thermostat on the market designed to lock in the open position, allowing coolant to continue to flow in the event of overheating."; Temperature 170F; Includes seal; OE Specified Temperature; Fail-Safe |
| 2004 | Nissan | Sentra | 1.8L | L4 | N/A | "The patented Fail-Safe (R) thermostat is the only thermostat on the market designed to lock in the open position, allowing coolant to continue to flow in the event of overheating."; Temperature 170F; Includes seal; OE Specified Temperature; Fail-Safe |
| 2003 | Nissan | Sentra | 1.8L | L4 | N/A | "The patented Fail-Safe (R) thermostat is the only thermostat on the market designed to lock in the open position, allowing coolant to continue to flow in the event of overheating."; Temperature 170F; Includes seal; OE Specified Temperature; Fail-Safe |
| 2002 | Nissan | Sentra | 1.8L | L4 | N/A | "The patented Fail-Safe (R) thermostat is the only thermostat on the market designed to lock in the open position, allowing coolant to continue to flow in the event of overheating."; Temperature 170F; Includes seal; OE Specified Temperature; Fail-Safe |
| 2001 | Nissan | Sentra | 1.8L | L4 | N/A | "The patented Fail-Safe (R) thermostat is the only thermostat on the market designed to lock in the open position, allowing coolant to continue to flow in the event of overheating."; Temperature 170F; Includes seal; OE Specified Temperature; Fail-Safe |
| 2000 | Nissan | Sentra | 1.8L | L4 | N/A | "The patented Fail-Safe (R) thermostat is the only thermostat on the market designed to lock in the open position, allowing coolant to continue to flow in the event of overheating."; Temperature 170F; Includes seal; OE Specified Temperature; Fail-Safe |
