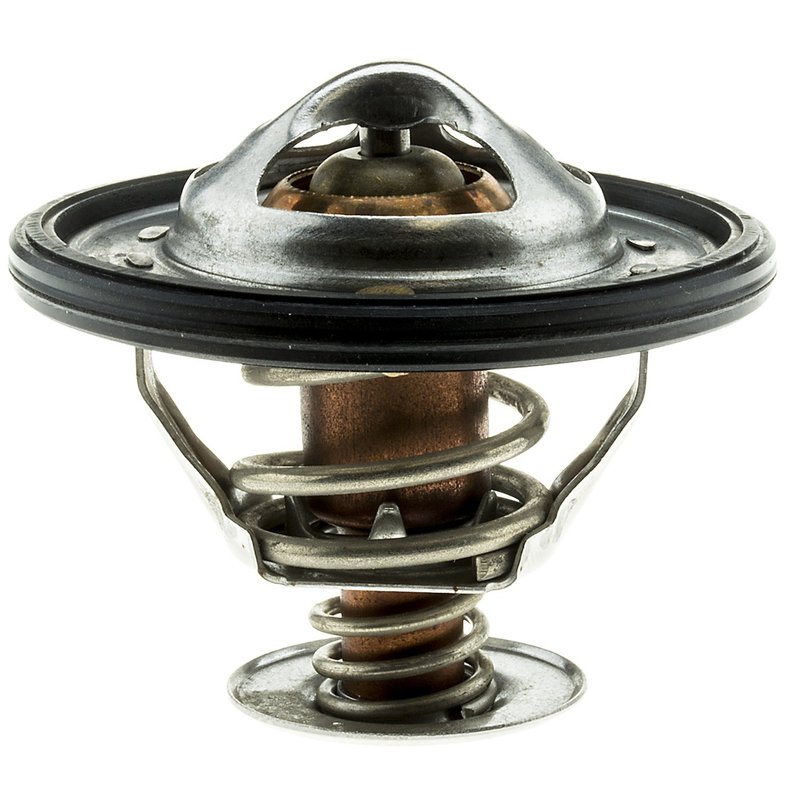

Motorad 762-192 Engine Coolant Thermostat - Lower

Overview of Motorad Standard Engine Coolant Thermostat 762-192

The Motorad Standard Engine Coolant Thermostat 762-192 is designed to regulate engine temperature efficiently in select Mitsubishi, Scion, Subaru, and Toyota vehicles. This thermostat ensures optimal engine performance by maintaining the correct coolant flow at a precise opening temperature.

• Sealing flange outside diameter: 2.21 inches
• Height between flanges: 1.5 inches
• Standard type thermostat with a 2.14-inch height
• Includes rubber gasket/seal with O-ring seal type
• Jiggle pin weep hole for proper coolant circulation
• Start to open temperature: 189°F
• Bypass diameter: 1.14 inches and bypass length: 1.42 inches
• Flange thickness: 0.05 inches
• One seal included; installation tool not included

Detailed Product Description

The Motorad Standard line offers reliable engine cooling components designed to meet OEM specifications. This 762-192 engine coolant thermostat is engineered to open at 189 degrees Fahrenheit, allowing coolant to flow through the engine and radiator to maintain optimal operating temperature. The thermostat features a sealing flange with a 2.21-inch outside diameter and a height of 2.14 inches, ensuring a precise fit within the cooling system. The included rubber gasket with an O-ring seal type provides a secure, leak-free installation. Additionally, the jiggle pin weep hole helps prevent air pockets, promoting consistent coolant circulation.

Compatible Vehicles and Applications

This thermostat is compatible with a range of Mitsubishi, Scion, Subaru, and Toyota models, including the Mitsubishi Lancer, Outlander, Outlander PHEV, Outlander Sport, and RVR; Scion FR-S; Subaru BRZ, Crosstrek, Forester, Impreza, Legacy, Outback, and XV Crosstrek; and Toyota 86 and GR86. It is designed specifically for these vehicles to ensure proper engine temperature regulation and cooling system performance.

Common Issues Addressed by This Thermostat

• Engine overheating due to thermostat failure
• Erratic engine temperature fluctuations
• Coolant leaks caused by worn seals or gaskets
• Poor heater performance from improper coolant flow
• Engine running too cold, affecting fuel efficiency and emissions

Installation Notes and Tips

Before installation, ensure the engine is cool and the cooling system is depressurized. Replace the old thermostat and gasket with the Motorad Standard 762-192 thermostat, making sure the jiggle pin is positioned correctly to allow air to escape. Use the included rubber gasket and verify the O-ring seal is properly seated to prevent leaks. No special installation tool is included, so standard hand tools are sufficient for this replacement. Always refill and bleed the cooling system after installation to remove air pockets.

Quality Assurance and Warranty

Motorad's Standard product line is manufactured to meet or exceed OEM standards, providing dependable performance and durability. This thermostat includes a high-quality rubber gasket and O-ring seal to ensure a secure fit and leak-free operation. While specific warranty details are not provided, Motorad products typically come with manufacturer-backed quality assurance to support reliable engine cooling system function.
