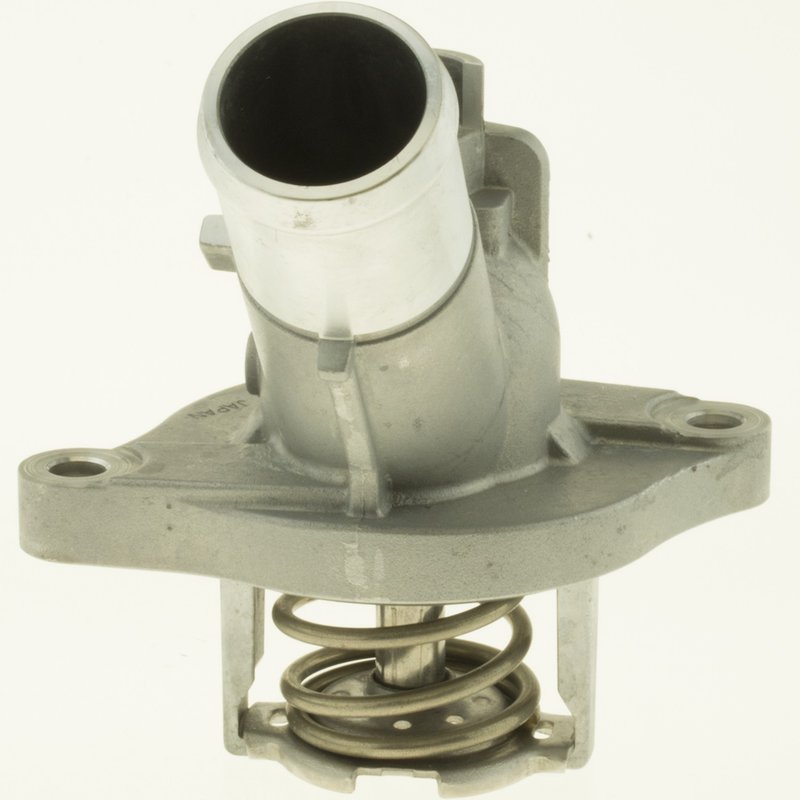

Motorad 922-182 Engine Coolant Thermostat Housing Assembly

Integrated thermostat housing for GM cooling systems

Motorad 922-182 is an integrated engine coolant thermostat housing assembly built for OE-style cooling system service. It combines the thermostat, housing, and seal in one replacement part for select Chevrolet, GMC, Buick, and Cadillac applications, including Camaro, Malibu, Equinox, and Terrain models.

The Motorad Integrated Housing Thermostat line is focused on direct-fit cooling system service with OEM specifications and processes. This 922-182 assembly uses aluminum and steel construction, a silver finish, a 182°F opening temperature, and a copper case with wax compound for responsive coolant temperature control.

Key features

• Engine coolant thermostat housing assembly with integrated thermostat and housing design
• 182°F thermostat temperature for OE-specified cooling control
• Aluminum and steel construction with silver finish
• Gasket or seal included; bleeder hole and jiggle pin included
• 2 mounting holes and 1 outlet port
• New part manufactured to OEM quality materials and safety standards

Detailed product information

Motorad 922-182 is engineered for direct replacement service on GM vehicles that use an integrated thermostat housing. It is a strong match for drivers searching for a thermostat housing assembly for 2018-2020 Chevrolet Equinox, 2018-2020 GMC Terrain, 2017-2021 GMC Acadia, or 2016-2021 Chevrolet Camaro cooling system repair. It also fits additional applications such as 2013-2021 Chevrolet Malibu, 2014-2019 Cadillac CTS, and 2016-2020 Buick Envision.

This part cross-references Dorman - OE Solutions 902-2089 for the same application. The Motorad 922-182 thermostat housing assembly is built to OE specifications so it can replace a worn or leaking housing while maintaining the correct 182°F operating temperature.

Common issues this part can address

• Coolant leaks at the thermostat housing or seal area
• Engine running too cool or too warm due to thermostat wear
• Temperature fluctuation from a sticking thermostat
• Service issues caused by a cracked or deteriorated housing
• Bleeding concerns after cooling system repair when the original housing is damaged

Installation notes and tips

Verify the OE-specified thermostat temperature and housing style before installation. This assembly includes a gasket or seal, but mounting hardware is not included. Clean the mating surfaces thoroughly, inspect the coolant passages, and follow the vehicle service procedure for refilling and bleeding the cooling system. Confirm fitment by year, make, and model before ordering, especially on Chevrolet Camaro, Chevrolet Malibu, and GMC Terrain applications.

Quality assurance

Motorad manufactures this integrated housing thermostat using OEM-quality materials and processes as an OE supplier. The copper case and wax compound are used to support quick response to coolant temperature changes, and the part is built for demanding automotive cooling system service.
