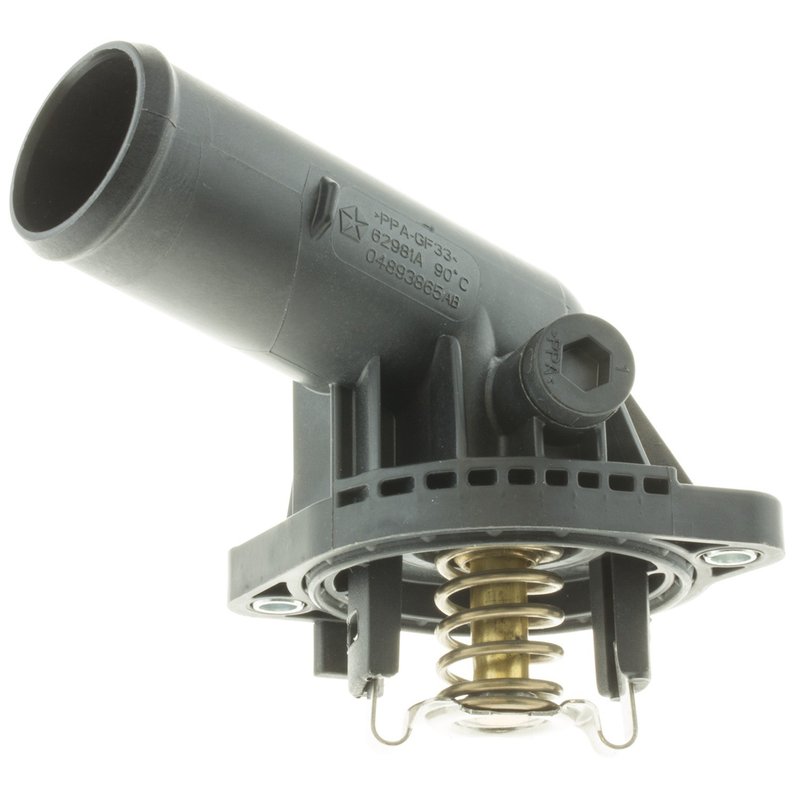

Motorad 953-194 Engine Coolant Thermostat Housing Assembly
| Brand | Motorad 953-194 |
|---|---|
| Bleeder Hole | Yes |
| Color | Black |
| Gasket Or Seal Included | Yes |
| Gasket Type | O-Ring |
| Gasket/Seal Material | Rubber |
| Gasket/Seal Material | Rubber |
| Grade Type | Regular |
| Installation Tool Included | No |
| Material | Plastic, Steel, Copper |
| Mounting Hardware Included | No |
| Number Of Bolt Holes | 2 |
| Number Of Outlet Ports | 1 |
| Number Of Seals | 1 |
| Outlet Diameter | 1.51 in |
| Temperature | 194 Deg. F |
| Temperature (Degree) | 194 |
| Product line | Integrated Housing Thermostat |
| Fits | Ram · 13 vehicles |
OE supplier quality. Built with OEM materials and processes for dependable cooling performance.
Copper case. Wax compound responds quickly to coolant temperature changes.
Integrated housing design. Combines thermostat and housing in one assembly for a simpler repair.
Cross-references Dorman - OE Solutions 902-3115, Motorad 953-194 and 59539 for the same application. See all 12.
Integrated thermostat housing for Ram cooling systems
Motorad 953-194 is an engine coolant thermostat housing assembly built with OEM-quality materials and OE-supplier manufacturing standards. It is specified at 194°F and uses a copper case with wax compound for quick response to coolant temperature changes.
Compatible with Ram 1500 and Ram 1500 Classic applications, this integrated housing thermostat is built for direct replacement service in the cooling system.
Key features
- Integrated housing thermostat assembly for engine coolant control
- 194°F temperature rating for OE-specified applications
- Plastic, steel, and copper construction
- Black finish
- Gasket or seal included with rubber O-ring seal
- Bleeder hole included for coolant service
- 2 bolt holes and 1 outlet port
- 1.51 in outlet diameter
Product details
The Motorad Integrated Housing Thermostat line focuses on thermostat and housing assemblies engineered to OE specifications and processes. Part number 953-194 combines the thermostat, housing, and seal in one service part, helping restore proper coolant flow control in Ram 1500 and Ram 1500 Classic cooling systems. The copper case and wax compound support fast reaction to coolant temperature shifts, while the integrated design simplifies replacement of the thermostat housing assembly.
This part cross-references Dorman OE Solutions 902-3115 for the same application.
Common issues this part can address
- Engine running hotter than normal due to thermostat control problems
- Coolant leaks at the thermostat housing or seal area
- Delayed coolant temperature regulation after warm-up
- Service issues caused by a worn housing or degraded O-ring seal
- Cooling system performance concerns on Ram 1500 and Ram 1500 Classic models
Installation notes and tips
Verify the 194°F temperature specification and outlet diameter before installation. Inspect the mating surfaces, replace damaged coolant as needed, and confirm the bleeder hole is positioned correctly during fill and bleed procedures. Mounting hardware and installation tools are not included.
Quality assurance
Manufactured by an OE supplier using OEM-quality materials and safety standards, this thermostat housing assembly is built to meet OEM specifications for cooling-system service.
Fits 2013-2019 Ram 1500, N/A. Fits 2019-2020 Ram 1500 Classic, N/A. Fits 2021-2024 Ram 1500 Classic, N/A.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2024 | Ram | 1500 Classic | 3.6L | V6 | N/A | Includes thermostat, housing, and seal; Integrated Housing Thermostat |
| 2023 | Ram | 1500 Classic | 3.6L | V6 | N/A | Includes thermostat, housing, and seal; Integrated Housing Thermostat |
| 2022 | Ram | 1500 Classic | 3.6L | V6 | N/A | Includes thermostat, housing, and seal; Integrated Housing Thermostat |
| 2021 | Ram | 1500 Classic | 3.6L | V6 | N/A | Includes thermostat, housing, and seal; Integrated Housing Thermostat |
| 2020 | Ram | 1500 Classic | 3.6L | V6 | N/A | Temperature 194F; Includes thermostat, housing, seal; OE Specified; Integrated Housing Thermostat |
| 2019 | Ram | 1500 | 3.6L | V6 | N/A | Temperature 194F; Includes thermostat, housing, seal; OE Specified; Integrated Housing Thermostat |
| 2019 | Ram | 1500 Classic | 3.6L | V6 | N/A | Temperature 194F; Includes thermostat, housing, seal; OE Specified; Integrated Housing Thermostat |
| 2018 | Ram | 1500 | 3.6L | V6 | N/A | Temperature 194F; Includes thermostat, housing, seal; OE Specified; Integrated Housing Thermostat |
| 2017 | Ram | 1500 | 3.6L | V6 | N/A | Temperature 194F; Includes thermostat, housing, seal; OE Specified; Integrated Housing Thermostat |
| 2016 | Ram | 1500 | 3.6L | V6 | N/A | Temperature 194F; Includes thermostat, housing, seal; OE Specified; Integrated Housing Thermostat |
| 2015 | Ram | 1500 | 3.6L | V6 | N/A | Temperature 194F; Includes thermostat, housing, seal; OE Specified; Integrated Housing Thermostat |
| 2014 | Ram | 1500 | 3.6L | V6 | N/A | Temperature 194F; Includes thermostat, housing, seal; OE Specified; Integrated Housing Thermostat |
| 2013 | Ram | 1500 | 3.6L | V6 | N/A | Temperature 194F; Includes thermostat, housing, seal; OE Specified; Integrated Housing Thermostat |
| No rows match your filter. | ||||||
