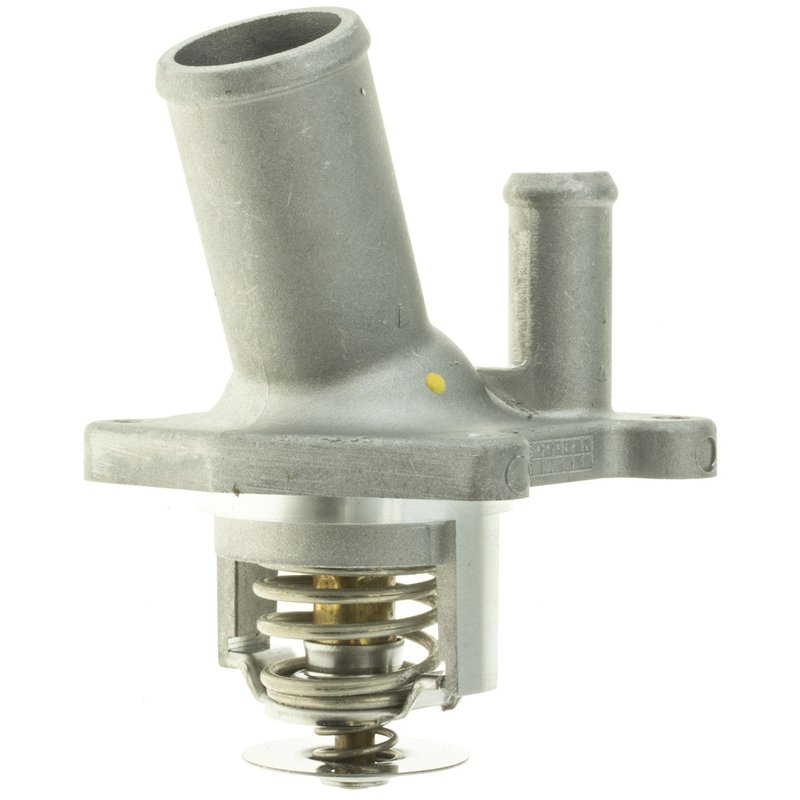

Motorad 961-180 Engine Coolant Thermostat Housing Assembly

Overview of Motorad Integrated Housing Thermostat 961-180

The Motorad Integrated Housing Thermostat 961-180 is designed specifically for Suzuki Verona models, providing reliable engine temperature regulation. This engine coolant thermostat housing assembly ensures efficient coolant flow and temperature control to maintain optimal engine performance.

• Constructed from durable aluminum, steel, and copper materials
• Silver finish for corrosion resistance and durability
• Includes a bleeder hole for air removal
• Bypass diameter of 1.52 inches and bypass length of 1.90 inches
• Two outlet ports with diameters of 0.72 inches and 1.33 inches
• Operates at a temperature of 180 degrees Fahrenheit
• Features four bolt holes for secure mounting

Details on the Integrated Housing Thermostat Product Line

The Motorad Integrated Housing Thermostat line focuses on combining the thermostat and housing into a single assembly, simplifying installation and improving reliability. This design reduces potential leak points and streamlines the cooling system components, making it a practical choice for maintaining consistent engine temperatures in Suzuki Verona vehicles.

Product Description and Specifications

The 961-180 thermostat housing assembly is engineered with a combination of aluminum, steel, and copper to provide strength and heat resistance. Its silver color finish helps resist corrosion over time. The assembly includes a bleeder hole to facilitate the removal of trapped air in the cooling system, which can improve coolant circulation and prevent overheating. The housing features two outlet ports with different diameters (0.72 inches and 1.33 inches) to accommodate specific coolant flow requirements. With a bypass diameter of 1.52 inches and a bypass length of 1.90 inches, this thermostat housing supports proper coolant bypass flow. The thermostat is calibrated to open at 180 degrees Fahrenheit, ensuring the engine reaches and maintains optimal operating temperature. The assembly mounts securely with four bolt holes, though mounting hardware and gaskets or seals are not included.

Common Applications and Problem Solving

• Replacement for faulty or leaking thermostat housing assemblies on Suzuki Verona
• Resolves engine overheating caused by thermostat failure
• Addresses coolant leaks due to cracked or damaged housing
• Improves coolant flow and temperature regulation in the cooling system
• Prevents air pockets in the cooling system with built-in bleeder hole

Installation Notes and Tips

Installation of the Motorad 961-180 thermostat housing assembly requires removal of the old housing and thermostat. Since mounting hardware and gaskets are not included, ensure you have the correct bolts and a compatible gasket or seal before beginning installation. The bleeder hole should be used to purge air from the cooling system after installation. No special installation tools are provided, so standard automotive tools are necessary. Follow vehicle-specific service manual instructions for torque specifications and coolant refilling procedures.

Quality Assurance and Warranty

Motorad manufactures the 961-180 thermostat housing assembly to meet industry standards for durability and performance. While no specific warranty information is provided, Motorad products typically undergo quality control testing to ensure reliable operation in Suzuki Verona cooling systems. For warranty details, refer to Motorad’s official documentation or contact authorized distributors.
