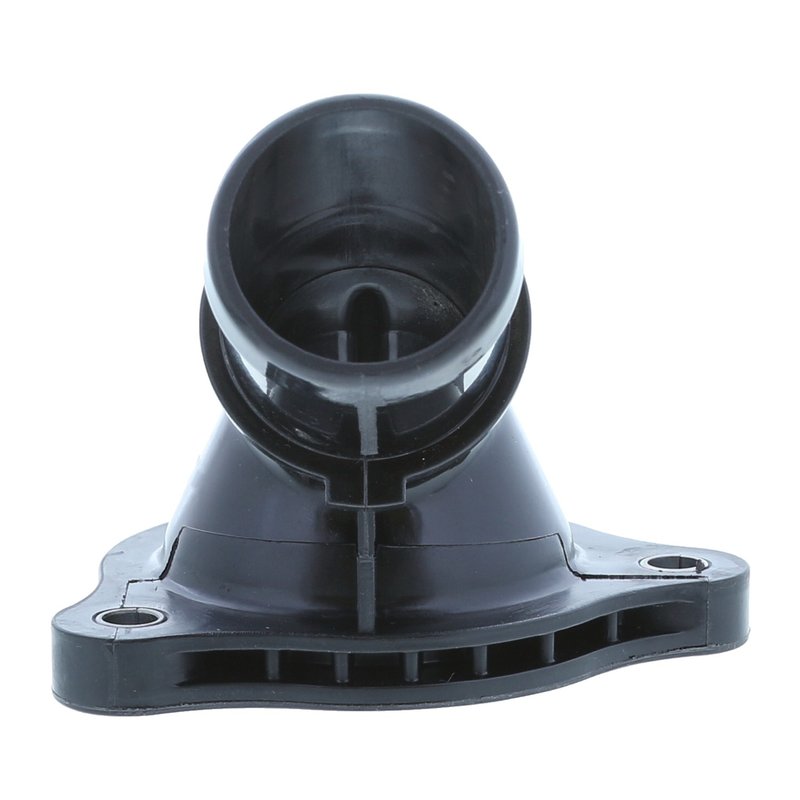

Motorad CH1084 Engine Coolant Thermostat Housing - Upper
OE Quality 60-Day Returns
Motorad

Motorad CH1084 Engine Coolant Thermostat Housing - Upper

Brand Motorad CH1084
Position Upper
Material Plastic
Color Black
Outlet Port Diameter 1.46
Height 3.05
Gasket Or Seal Included No
Mounting Hole Quantity 3
Bolt Hole Center To Bolt Hole Center 2.66
Inlet Port Diameter 1.92
Flange Thickness 0.4
Mounting Hole Diameter 0.27
Bolts Included No
Color Black
Height 3.05 in
Number Of Seals 0
Outlet Diameter 1.46 in
Outlet Port Quantity 1
Fits Hyundai and Kia · 35 vehicles

OE-quality housing. Built to OEM standards for demanding engine cooling systems.

Leak tested. Each housing is 100% leak tested before release.

Thermal shock validated. Verified for durability under rapid temperature changes.

Cross-references Motorad CH1084, 9CH1084 and 256313CAA0 for the same application. See all 3.

$45.98Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $45.98
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Engine Coolant Thermostat Housing options

Engine Coolant Thermostat Housing

Motorad CH1084 is an engine coolant thermostat housing built to OE quality standards for demanding cooling systems. It is a direct-fit style replacement for select Hyundai and Kia upper coolant outlet applications, including Santa Fe, Santa Fe XL, Sedona, Sorento, Azera, and Cadenza models.

  • Plastic housing in black finish
  • Upper engine coolant water outlet with housing
  • 1.92 in inlet port diameter
  • 1.46 in outlet port diameter
  • 3 mounting holes with 2.66 in bolt hole center spacing
  • Thermal shock validated and 100% leak tested
  • OE supplier manufacturing standards

Fitment Details

Compatible with upper coolant outlet applications on select Hyundai and Kia vehicles. Fits 2010-2018 Hyundai Santa Fe, upper; fits 2018-2019 Hyundai Santa Fe XL, upper; fits 2011-2018 Kia Sorento, upper; fits 2011-2012 Kia Sedona, upper; fits 2014-2018 Kia Sedona, upper; fits 2012-2017 Hyundai Azera, upper; fits 2014-2016 Kia Cadenza, upper.

This part cross-references OE-style numbers 9CH1084 and 256313CAA0 for the same application.

What It Helps Address

  • Coolant leakage at the upper water outlet housing
  • Cracked or heat-damaged plastic thermostat housing
  • Improper sealing at the coolant outlet connection
  • Replacement needs after thermostat housing failure

Installation Notes

Verify engine application and upper housing location before installation. The housing is supplied without a gasket or seal, and bolts are not included, so reuse or source the correct service parts as required by the vehicle.

Quality Assurance

Motorad manufactures this housing to OEM quality standards as an OE supplier. Each unit is thermal shock validated and 100% leak tested before release.

Related reading

This part fits 35 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersPositionNotes
2019HyundaiSanta Fe XL3.3LV6UpperEngine Coolant Water Outlet with housing.
2018HyundaiSanta Fe3.3LV6UpperEngine Coolant Water Outlet with housing.
2018HyundaiSanta Fe XL3.3LV6UpperEngine Coolant Water Outlet with housing.
2018KiaSedona3.3LV6UpperEngine Coolant Water Outlet with housing.
2018KiaSorento3.3LV6UpperEngine Coolant Water Outlet with housing.
2017HyundaiAzera3.3LV6UpperEngine Coolant Water Outlet with housing.
2017HyundaiSanta Fe3.3LV6UpperEngine Coolant Water Outlet with housing.
2017KiaSedona3.3LV6UpperEngine Coolant Water Outlet with housing.
2017KiaSorento3.3LV6UpperEngine Coolant Water Outlet with housing.
2016HyundaiAzera3.3LV6UpperEngine Coolant Water Outlet with housing.
2016HyundaiSanta Fe3.3LV6UpperEngine Coolant Water Outlet with housing.
2016KiaCadenza3.3LV6UpperEngine Coolant Water Outlet with housing.
2016KiaSedona3.3LV6UpperEngine Coolant Water Outlet with housing.
2016KiaSorento3.3LV6UpperEngine Coolant Water Outlet with housing.
2015HyundaiAzera3.3LV6UpperEngine Coolant Water Outlet with housing.
2015HyundaiSanta Fe3.3LV6UpperEngine Coolant Water Outlet with housing.
2015KiaCadenza3.3LV6UpperEngine Coolant Water Outlet with housing.
2015KiaSedona3.3LV6UpperEngine Coolant Water Outlet with housing.
2015KiaSorento3.3LV6UpperEngine Coolant Water Outlet with housing.
2014HyundaiAzera3.3LV6UpperEngine Coolant Water Outlet with housing.
2014HyundaiSanta Fe3.3LV6UpperEngine Coolant Water Outlet with housing.
2014KiaCadenza3.3LV6UpperEngine Coolant Water Outlet with housing.
2014KiaSedona3.5LV6UpperEngine Coolant Water Outlet with housing.
2014KiaSorento3.3LV6UpperEngine Coolant Water Outlet with housing.
2013HyundaiAzera3.3LV6UpperEngine Coolant Water Outlet with housing.
2013HyundaiSanta Fe3.3LV6UpperEngine Coolant Water Outlet with housing.
2013KiaSorento3.5LV6UpperEngine Coolant Water Outlet with housing.
2012HyundaiAzera3.3LV6UpperEngine Coolant Water Outlet with housing.
2012HyundaiSanta Fe3.5LV6UpperEngine Coolant Water Outlet with housing.
2012KiaSedona3.5LV6UpperEngine Coolant Water Outlet with housing.
2012KiaSorento3.5LV6UpperEngine Coolant Water Outlet with housing.
2011HyundaiSanta Fe3.5LV6UpperEngine Coolant Water Outlet with housing.
2011KiaSedona3.5LV6UpperEngine Coolant Water Outlet with housing.
2011KiaSorento3.5LV6UpperEngine Coolant Water Outlet with housing.
2010HyundaiSanta Fe3.5LV6UpperEngine Coolant Water Outlet with housing.
Directly replaces or cross-references 3 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Motorad — CH10849CH1084256313CAA0
