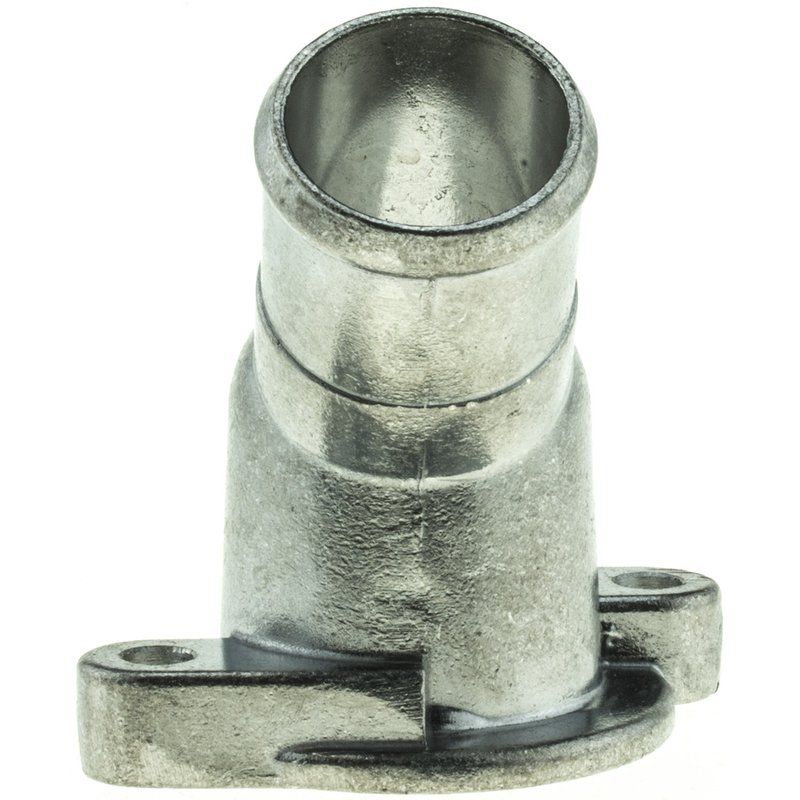

Motorad CH2040 Engine Coolant Thermostat Housing - Upper
| Brand | Motorad CH2040 |
|---|---|
| Position | Upper |
| Material | Steel |
| Color | Silver |
| Outlet Port Diameter | 1.50 |
| Height | 3.93 |
| Gasket Or Seal Included | Yes |
| Mounting Hole Quantity | 2 |
| Bolt Hole Center To Bolt Hole Center | 2.93 |
| Inlet Port Diameter | 1.50 |
| Flange Thickness | .58 |
| Mounting Hole Diameter | .40 |
| Bolts Included | No |
| Outlet Diameter | 1.5 in |
| Fits | Ford · 7 vehicles |
OE supplier quality. Built to OEM standards with proprietary material for demanding cooling systems.
Leak-tested design. Thermal shock validated and 100% leak tested for sealing confidence.
Complete sealing surface. Includes a gasket or seal for the housing connection.
Cross-references Dorman - OE Solutions 902-1040, Four Seasons 85187 and Gates CO34779 for the same application. See all 8.
Engine Coolant Thermostat Housing Overview
The Motorad CH2040 engine coolant thermostat housing is built for cooling-system service on compatible Ford Ranger applications. It uses steel construction, includes a gasket or seal, and is thermal shock validated and 100% leak tested for dependable sealing performance.
Key Features
- Steel thermostat housing with a silver finish.
- Includes gasket or seal for the cooling-system connection.
- Two mounting holes with 2.93 in. bolt hole center spacing.
- 1.50 in. inlet and outlet port diameters.
- Thermal shock validated and leak tested to meet OEM standards.
- Motorad CH2040 part number for easy identification.
Detailed Description
This thermostat housing is manufactured by an OE supplier to OEM quality standards and uses proprietary material selected for demanding cooling-system conditions. The CH2040 is engineered as a direct replacement-style coolant outlet housing for the Ford Ranger, with a steel body, 0.58 in. flange thickness, and 0.40 in. mounting holes. The Motorad CH2040 is also cross-referenced to Dorman - OE Solutions 902-1040, Four Seasons 85187, and Gates CO34779 for the same application.
Fits 2002-2008 Ford Ranger, upper. This fitment includes the engine coolant water outlet with housing and gasket included.
What It Is Used For
- Replacing a leaking or cracked coolant thermostat housing.
- Restoring a sealed coolant outlet connection.
- Addressing coolant loss at the housing interface.
- Correcting fitment issues on an upper cooling-system outlet.
- Supporting proper coolant flow through the housing assembly.
Installation Notes and Tips
Verify the port diameter, bolt pattern, and mounting-hole spacing before installation. Clean the mating surfaces thoroughly and inspect the gasket sealing area for corrosion or debris. Confirm upper-position fitment on the Ford Ranger before ordering or installing the Motorad CH2040.
Quality Assurance
Built to meet or exceed OEM standards, this housing is thermal shock validated and 100% leak tested for cooling-system reliability.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2008 | Ford | Ranger | 3.0L | V6 | Upper | Engine Coolant Water Outlet with housing and gasket included. |
| 2007 | Ford | Ranger | 3.0L | V6 | Upper | Engine Coolant Water Outlet with housing and gasket included. |
| 2006 | Ford | Ranger | 3.0L | V6 | Upper | Engine Coolant Water Outlet with housing and gasket included. |
| 2005 | Ford | Ranger | 3.0L | V6 | Upper | Engine Coolant Water Outlet with housing and gasket included. |
| 2004 | Ford | Ranger | 3.0L | V6 | Upper | Engine Coolant Water Outlet with housing and gasket included. |
| 2003 | Ford | Ranger | 3.0L | V6 | Upper | Engine Coolant Water Outlet with housing and gasket included. |
| 2002 | Ford | Ranger | 3.0L | V6 | Upper | Engine Coolant Water Outlet with housing and gasket included. |
