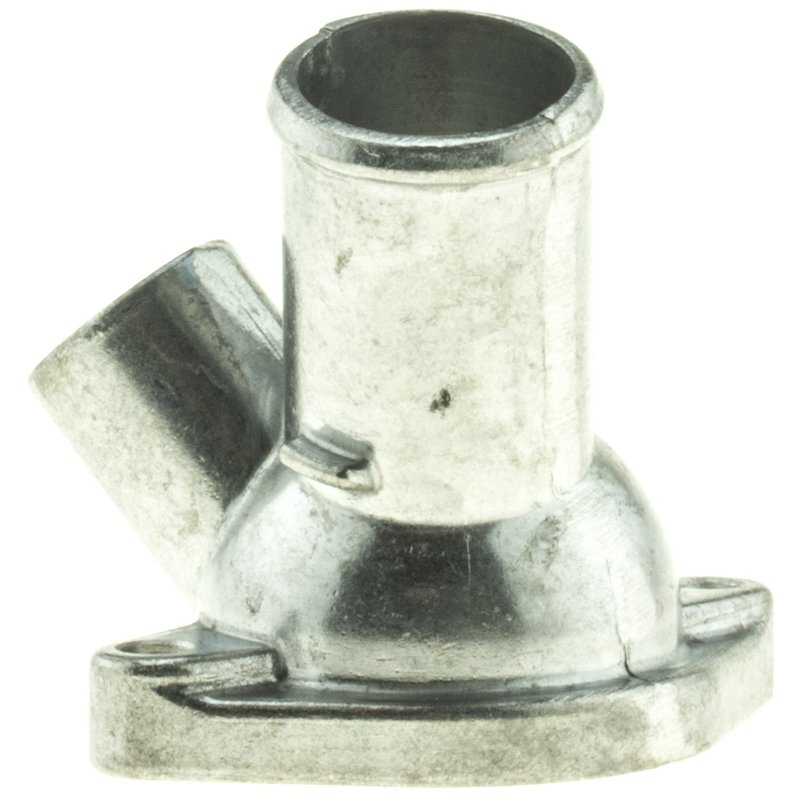

Motorad CH2401 Engine Coolant Water Outlet

Engine Coolant Water Outlet for Toyota Cooling Systems

The Motorad CH2401 engine coolant water outlet is built for Toyota cooling system service where a steel housing is required. It is manufactured to OEM quality standards by an OE supplier and validated for thermal shock and leak resistance.

Compatible with 1985-1991 Toyota Camry and 1986-1989 Toyota Celica applications that use an engine coolant water outlet with housing, this part number CH2401 supports accurate coolant routing in the engine cooling circuit.

Key Features

• Steel construction with a silver finish
• Two mounting holes for direct housing attachment
• No gasket or seal included
• No bolts included
• Thermal shock validated and 100% leak tested
• Built to meet or exceed OEM standards

Detailed Description

Motorad CH2401 is an engine coolant water outlet designed for Toyota Camry and Toyota Celica cooling system repairs where the outlet housing is part of the assembly. The steel body helps provide the rigidity needed in a hot coolant environment, while the OE-supplier manufacturing process supports consistent fit and function. This part number CH2401 is a practical replacement when the original outlet shows corrosion, leakage, or sealing surface wear.

This part cross-references Dayco 85061 for the same application.

Common Repair Symptoms

• Coolant leaking from the water outlet or housing area
• Corrosion or pitting on the outlet surface
• Cracked or warped coolant outlet housing
• Persistent coolant loss around the thermostat and housing area
• Overheating caused by coolant escape at the outlet

Installation Notes and Tips

• Confirm the vehicle uses an engine coolant water outlet with housing before ordering.
• Inspect the mating surface, hoses, and thermostat housing during service.
• Replace the gasket or seal if the application requires one, since it is not included.
• Verify fastener condition before installation because bolts are not included.
• Clean corrosion from the sealing area to help achieve a proper seal.

Quality Assurance

Motorad manufactures this coolant outlet to OEM quality standards using proprietary materials and testing procedures. CH2401 is thermal shock validated and 100% leak tested to support dependable cooling system service on Toyota Camry and Toyota Celica applications.
