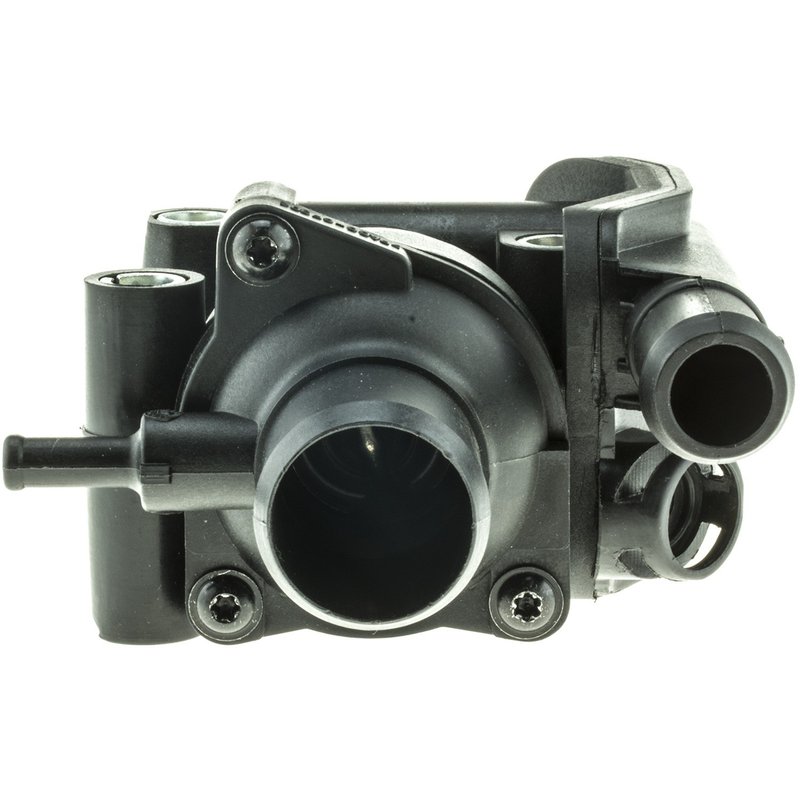

Motorad TA2201 Engine Coolant Thermostat Housing Assembly
| Brand | Motorad TA2201 |
|---|---|
| Bleeder Hole | Yes |
| Color | Black |
| Gasket Or Seal Included | No |
| Inside Diameter | 0.31 |
| Material | Plastic, Stainless Steel, Copper, Rubber |
| Mounting Hardware Included | No |
| Mounting Hole Quantity | 3 |
| Outlet Port Quantity | 2 |
| Temperature | 195 Deg. F |
| Thermostat Temp (F) | 195 |
| Product line | Thermostat Assembly |
| Fits | Ford and Mazda · 23 vehicles |
OE supplier quality. Built with OEM materials and processes for dependable cooling performance.
Rapid temperature response. Copper case and wax compound react quickly to coolant changes.
Air relief valve. Offset design helps purge trapped air in the cooling system.
Cross-references Bosch 15819, Delphi TA2201 and Dorman - OE Solutions 902-201 for the same application. See all 10.
Motorad TA2201 Thermostat Assembly
The Motorad TA2201 thermostat assembly is an OE-style engine coolant thermostat housing assembly built for precise coolant temperature control. It uses OEM-quality materials and an OE supplier manufacturing process to support consistent operation in demanding cooling systems.
Compatible With Ford Escape, Ford Focus, and Mazda Tribute applications that call for a 195°F thermostat assembly, including 2000-2004 Ford Focus and 2001-2004 Ford Escape and Mazda Tribute coverage.
Key Features
- 195°F thermostat temperature for OE-specified cooling control
- Black housing with plastic, stainless steel, copper, and rubber construction
- Bleeder hole included for air relief during service
- 3 mounting holes and 2 outlet ports
- Offset design for application-specific fitment
- Copper case and wax compound for quick response to coolant temperature changes
Product Details
The Motorad Thermostat Assembly line focuses on OE-style cooling system service parts built to match factory specifications and processes. TA2201 is an engine coolant thermostat housing assembly with an integrated thermostat design, intended for vehicles that require a 195°F operating temperature and a housing with OEM-style sealing features where applicable. This part cross-references Bosch 15819 for the same application.
Fits 2001-2004 Ford Escape, N/A. Fits 2000-2004 Ford Focus, N/A. Fits 2001-2004 Mazda Tribute, N/A. Fits 2001 Ford Focus, N/A.
Common Cooling System Issues Addressed
- Engine running cooler or warmer than the specified thermostat temperature
- Coolant flow control problems caused by a worn thermostat assembly
- Air trapped in the cooling system after thermostat service
- Housing wear or seal-related leakage at the thermostat assembly
- Temperature fluctuation from a slow-reacting thermostat element
Installation Notes
Verify the OE temperature specification before installation, especially on Ford Focus, Ford Escape, and Mazda Tribute applications listed for this part. The assembly uses a bleeder hole and an offset design; confirm housing orientation, outlet port layout, and mounting hole alignment before tightening. Gasket or seal and mounting hardware are not included unless separately specified by the vehicle service procedure.
Quality Assurance
Motorad manufactures this thermostat assembly with OEM-quality materials and OE-supplier processes to meet factory-level cooling system requirements. The copper case and wax compound are selected to respond quickly to coolant temperature changes, supporting stable thermostat operation under normal service conditions.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2004 | Ford | Escape | — | 2.0L | L4 | N/A | Temperature specified by the OE at 192F; Complete assembly with upper and lower housing, thermostat, and seal.; Thermostat Assembly |
| 2004 | Ford | Focus | — | 2.0L | L4 | N/A | Temperature specified by the OE at 192F; Complete assembly with upper and lower housing, thermostat, and seal.; Thermostat Assembly |
| 2004 | Mazda | Tribute | — | 2.0L | L4 | N/A | Temperature specified by the OE at 192F; Complete assembly with upper and lower housing, thermostat, and seal.; Thermostat Assembly |
| 2003 | Ford | Escape | — | 2.0L | L4 | N/A | Temperature specified by the OE at 192F; Complete assembly with upper and lower housing, thermostat, and seal.; Thermostat Assembly |
| 2003 | Ford | Focus | ZTS | 2.0L | L4 | N/A | Temperature specified by the OE at 192F; Complete assembly with upper and lower housing, thermostat, and seal.; Thermostat Assembly |
| 2003 | Ford | Focus | SE | 2.0L | L4 | N/A | Temperature specified by the OE at 192F; Complete assembly with upper and lower housing, thermostat, and seal.; Thermostat Assembly |
| 2003 | Ford | Focus | Mid | 2.0L | L4 | N/A | Temperature specified by the OE at 192F; Complete assembly with upper and lower housing, thermostat, and seal.; Thermostat Assembly |
| 2003 | Ford | Focus | LX | 2.0L | L4 | N/A | Temperature specified by the OE at 192F; Complete assembly with upper and lower housing, thermostat, and seal.; Thermostat Assembly |
| 2003 | Ford | Focus | High | 2.0L | L4 | N/A | Temperature specified by the OE at 192F; Complete assembly with upper and lower housing, thermostat, and seal.; Thermostat Assembly |
| 2003 | Ford | Focus | — | 2.0L | L4 | N/A | Temperature specified by the OE at 192F; Complete assembly with upper and lower housing, thermostat, and seal.; Thermostat Assembly |
| 2003 | Mazda | Tribute | — | 2.0L | L4 | N/A | Temperature specified by the OE at 192F; Complete assembly with upper and lower housing, thermostat, and seal.; Thermostat Assembly |
| 2002 | Ford | Escape | — | 2.0L | L4 | N/A | Temperature specified by the OE at 192F; Complete assembly with upper and lower housing, thermostat, and seal.; Thermostat Assembly |
| 2002 | Ford | Focus | ZTS | 2.0L | L4 | N/A | Temperature specified by the OE at 192F; Complete assembly with upper and lower housing, thermostat, and seal.; Thermostat Assembly |
| 2002 | Ford | Focus | SE | 2.0L | L4 | N/A | Temperature specified by the OE at 192F; Complete assembly with upper and lower housing, thermostat, and seal.; Thermostat Assembly |
| 2002 | Ford | Focus | Manual | 2.0L | L4 | N/A | Temperature specified by the OE at 192F; Complete assembly with upper and lower housing, thermostat, and seal.; Thermostat Assembly |
| 2002 | Ford | Focus | LX | 2.0L | L4 | N/A | Temperature specified by the OE at 192F; Complete assembly with upper and lower housing, thermostat, and seal.; Thermostat Assembly |
| 2002 | Ford | Focus | Base | 2.0L | L4 | N/A | Temperature specified by the OE at 192F; Complete assembly with upper and lower housing, thermostat, and seal.; Thermostat Assembly |
| 2002 | Ford | Focus | — | 2.0L | L4 | N/A | Temperature specified by the OE at 192F; Complete assembly with upper and lower housing, thermostat, and seal.; Thermostat Assembly |
| 2002 | Mazda | Tribute | — | 2.0L | L4 | N/A | Temperature specified by the OE at 192F; Complete assembly with upper and lower housing, thermostat, and seal.; Thermostat Assembly |
| 2001 | Ford | Escape | — | 2.0L | L4 | N/A | Temperature specified by the OE at 192F; Complete assembly with upper and lower housing, thermostat, and seal.; Thermostat Assembly |
| 2001 | Ford | Focus | — | 2.0L | L4 | N/A | Temperature 192F; Includes upper & lower housing, thermostat, and seal; Engine # 1G-780-A*, 2G-780-A*, 3G-780-A*; OE Specified Temperature; Thermostat Assembly |
| 2001 | Mazda | Tribute | — | 2.0L | L4 | N/A | Temperature specified by the OE at 192F; Complete assembly with upper and lower housing, thermostat, and seal.; Thermostat Assembly |
| 2000 | Ford | Focus | — | 2.0L | L4 | N/A | Temperature specified by the OE at 192F; Complete assembly with upper and lower housing, thermostat, and seal.; Thermostat Assembly |
