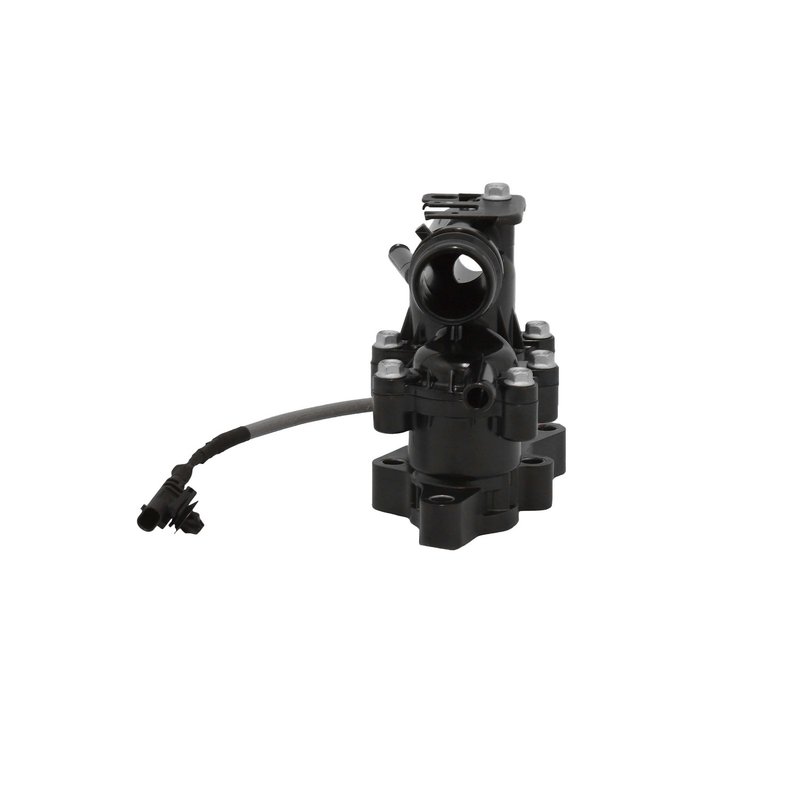

Motorad TA9199 HVAC Heater Control Valve
MotoRad TA9199 Heater Control Valve
The MotoRad TA9199 is an OEM-grade HVAC heater control valve built for precise coolant redirection and consistent temperature control. It is a direct-fit replacement for select Hyundai Elantra and Kia Niro applications, with materials and sealing features selected for durability in demanding heat and cold.
Key Features
- Specific-fit HVAC heater control valve for select vehicle applications
- Plastic housing with black finish
- Female oval connector with blade terminals
- Pre-installed rubber O-ring seal for leak-resistant sealing
- OEM-grade design manufactured to meet or exceed original specifications
- Electrical isolation features for added durability in extreme operating conditions
- Fits 2021-2023 Hyundai Elantra and 2017-2022 Kia Niro
Detailed Description
MotoRad TA9199 is designed for controlled coolant flow management in the HVAC system, helping regulate heater performance by redirecting coolant as needed. The valve uses a specific-fit design with five ports, a 4-bolt mounting pattern, and a female oval electrical connector with two male blade terminals. MotoRad TA9199 is engineered for vehicles that require accurate coolant control, including 2021-2023 Hyundai Elantra and 2017-2022 Kia Niro models. This part cross-references Monroe Shocks & Struts (e.g., 9919AT, 2560003HC5) for the same application.
What It Helps Address
- Inconsistent cabin heat output
- Coolant flow routing issues in the heater circuit
- Leaking or deteriorated heater control valve seals
- HVAC temperature control problems caused by valve wear
- Replacement needs for a failed OEM-style coolant control valve
Installation Notes and Tips
Verify connector shape, port dimensions, and mounting pattern before installation. Replace the valve only after the cooling system has been safely drained and depressurized, and inspect the sealing surfaces for contamination or damage. Use the pre-installed seal as supplied and confirm all hose and electrical connections are secure before refilling and bleeding the system.
Quality Assurance
MotoRad manufactures this heater control valve in ISO TS16949 facilities and tests it for precise coolant redirection and OEM-level fitment requirements. The TA9199 is built with OEM-approved materials and electrical isolation features to support reliable operation in extreme temperatures and conditions.
| Brand | Motorad |
|---|---|
| Part Number | TA9199 |
| Material | Plastic |
| Material | Plástico |
| Inlet Port Outside Diameter | 0.90 |
| Inlet Port Outside Diameter | 22.86 |
| Outlet Port Inside Diameter | 0.22 |
| Outlet Port Inside Diameter | 0.34 |
| Outlet Port Inside Diameter | 1.09 |
| Outlet Port Inside Diameter | 27.69 |
| Outlet Port Inside Diameter | 5.59 |
| Outlet Port Inside Diameter | 8.64 |
| Inlet Port Inside Diameter | 0.67 |
| Inlet Port Inside Diameter | 1.23 |
| Inlet Port Inside Diameter | 17.02 |
| Inlet Port Inside Diameter | 31.24 |
| Hose Connector Quantity | 0 |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Oem |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Connector Shape | Óvalo |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 2 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Outlet Port Outside Diameter | 0.40 |
| Outlet Port Outside Diameter | 0.55 |
| Outlet Port Outside Diameter | 1.38 |
| Outlet Port Outside Diameter | 10.16 |
This part fits 9 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2023 | Hyundai | Elantra | 1.6L | L4 | N/A | |
| 2022 | Hyundai | Elantra | 1.6L | L4 | N/A | |
| 2022 | Kia | Niro | 1.6L | L4 | N/A | |
| 2021 | Hyundai | Elantra | 1.6L | L4 | N/A | |
| 2021 | Kia | Niro | 1.6L | L4 | N/A | |
| 2020 | Kia | Niro | 1.6L | L4 | N/A | |
| 2019 | Kia | Niro | 1.6L | L4 | N/A | |
| 2018 | Kia | Niro | 1.6L | L4 | N/A | |
| 2017 | Kia | Niro | 1.6L | L4 | N/A |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
