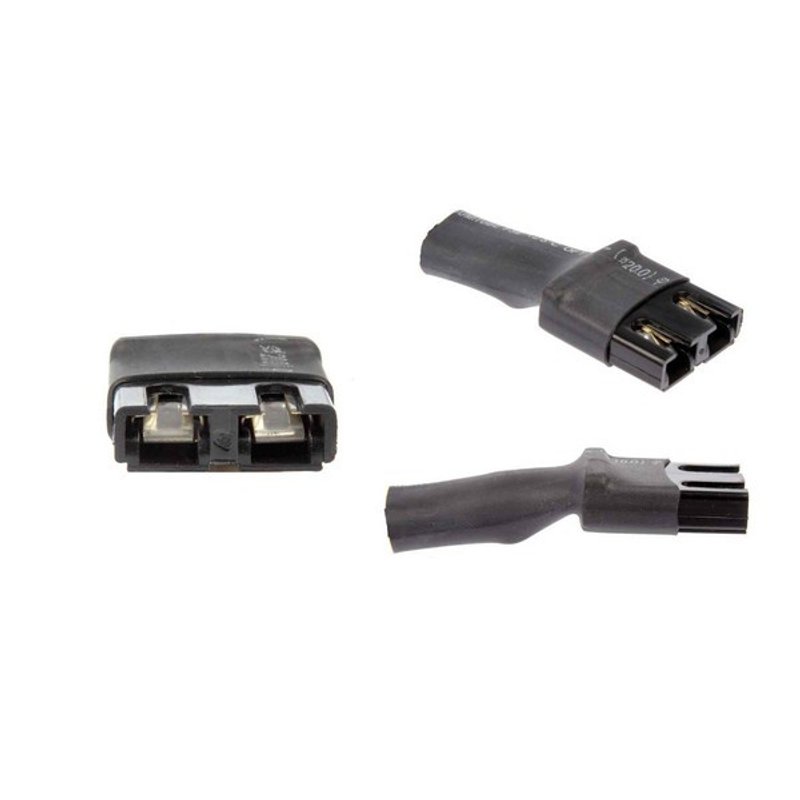

Motormite 85143 HVAC Clutch Coil Connector

Reliable HVAC Clutch Coil Connector for Select Vehicles

The Motormite 85143 HVAC clutch coil connector is designed to provide a secure and efficient electrical connection for your vehicle's air conditioning system. Compatible with a wide range of makes and models including Buick, Cadillac, Chevrolet, Ford, Mercedes-Benz, and Volvo, this connector ensures consistent performance in demanding automotive HVAC applications.

• 7-inch wiring harness length for flexible installation
• 18-gauge wire for optimal current capacity
• Blade-type female terminals with durable plastic material
• Includes a 2-wire A/C clutch connector with diode for proper electrical flow
• Compatible with multiple vehicle makes and models, including Mercedes-Benz 300E and Ford Mustang

Technical Details and Specifications

The Motormite 85143 features an 18-gauge wire gauge measurement, providing the necessary thickness to handle the electrical load of HVAC clutch coils. The wiring harness length of 7 inches offers sufficient reach for most engine bay configurations. This connector uses female blade terminals made from plastic, ensuring a secure fit and resistance to environmental factors. The included diode protects the circuit by preventing voltage spikes, which can damage the HVAC clutch coil or related components.

Compatible Vehicles and Applications

This HVAC clutch coil connector is compatible with a broad range of vehicles, including but not limited to Buick, Cadillac, Chevrolet, Chrysler, Dodge, Ford, GMC, Isuzu, Jaguar, Lincoln, Mercedes-Benz, Mercury, Oldsmobile, Plymouth, Pontiac, and Volvo. Specific models such as the Mercedes-Benz 300E, 300SE, Ford Mustang, Chevrolet Camaro, and GMC Yukon are supported, making it a versatile choice for many automotive HVAC repair needs.

Common Issues Addressed by This Connector

• Intermittent or failed A/C clutch engagement due to faulty wiring connections
• Electrical shorts or open circuits in the HVAC clutch coil wiring harness
• Corrosion or damage to original connectors causing HVAC system malfunctions
• Voltage spikes damaging the A/C clutch coil without proper diode protection
• Loose or poor terminal connections leading to inconsistent A/C performance

Installation Notes and Tips

• Ensure the vehicle’s battery is disconnected before installation to prevent electrical hazards
• Verify the connector’s terminal gender and type match the vehicle’s wiring harness
• Use dielectric grease on terminals to prevent corrosion and improve conductivity
• Route the 7-inch wiring harness carefully to avoid contact with hot or moving engine parts
• Confirm proper diode orientation to maintain correct electrical flow and protect the circuit

Quality Assurance and Warranty

Motormite products are manufactured to meet or exceed OEM standards for electrical connectors. The 85143 HVAC clutch coil connector undergoes quality control inspections to ensure reliable fitment and function. While specific warranty details may vary, Motormite typically offers coverage against manufacturing defects to provide confidence in product durability and performance.
