Motormite 85152 HVAC Clutch Coil Connector

Overview of Motormite HVAC Clutch Coil Connector 85152

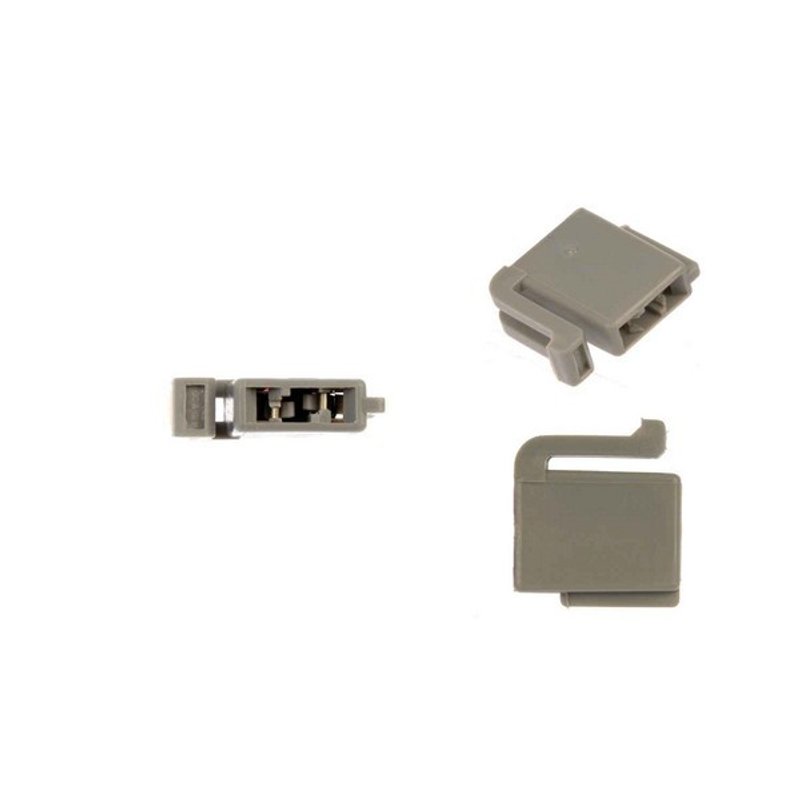

The Motormite HVAC Clutch Coil Connector 85152 is designed for reliable electrical connections in automotive HVAC systems. This connector is compatible with various Ford, Lincoln, Mazda, and Mercury models, providing a secure link for the compressor clutch coil wiring harness.

• Wiring harness length: 9 inches
• Wire gauge measurements supported: 2, 4, 6, 8, 10, and 12 gauge
• 2-wire compressor switch included
• Female terminal gender with pin-type terminals
• Durable plastic terminal material

Technical Details and Specifications

The Motormite 85152 HVAC clutch coil connector features a 9-inch wiring harness designed to accommodate multiple wire gauges, including 2, 4, 6, 8, 10, and 12 gauge wires. This versatility allows it to fit a wide range of compressor clutch coil wiring requirements. The connector includes two wires and female terminals with pin-type contacts, ensuring a secure and stable electrical connection. The terminal housing is made from plastic, providing insulation and protection against environmental factors.

Compatible Vehicles and Applications

This HVAC clutch coil connector is compatible with numerous Ford, Lincoln, Mazda, and Mercury vehicles. It fits models such as the Ford Bronco, F-150, Mustang, Explorer, and Econoline series, as well as Lincoln Continental, Mark series, and Mercury Cougar. It is suitable for use in HVAC systems requiring a 2-wire compressor switch connection, making it a practical replacement part for maintaining proper compressor clutch operation.

Common Issues Addressed by This Connector

• Intermittent compressor clutch engagement due to faulty wiring connections
• HVAC system failure caused by damaged or corroded clutch coil connectors
• Electrical shorts or open circuits in the compressor clutch wiring harness
• Replacement of worn or broken connectors in Ford, Lincoln, Mazda, and Mercury HVAC systems
• Ensuring consistent power delivery to the compressor clutch coil for reliable HVAC performance

Installation Notes and Tips

• Verify vehicle compatibility before installation using the part number 85152
• Ensure the wiring harness length and wire gauge match the vehicle’s specifications
• Disconnect the battery before beginning installation to prevent electrical shorts
• Use proper crimping tools to secure terminals and avoid loose connections
• Inspect the connector for damage or wear before installation to ensure optimal performance

Quality Assurance and Warranty Information

Motormite parts are manufactured to meet industry standards for durability and electrical performance. The HVAC clutch coil connector 85152 undergoes quality checks to ensure reliable operation in automotive HVAC systems. While specific warranty details may vary, Motormite products typically include limited warranties against manufacturing defects. Consult product documentation or the vehicle service manual for additional warranty information.
