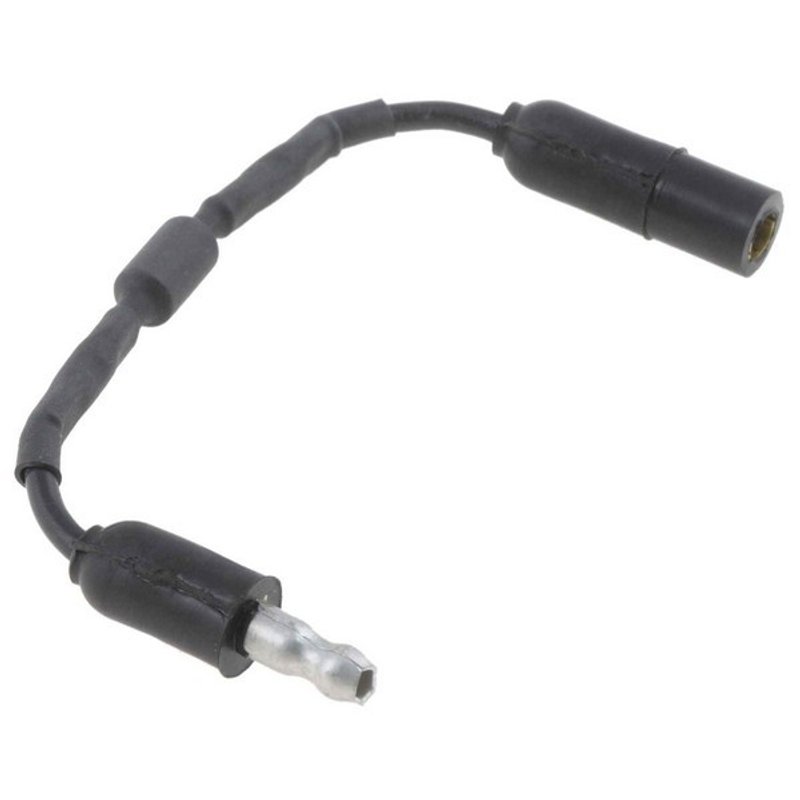

Motormite 85193 HVAC Clutch Coil Connector

HVAC Clutch Coil Connector for OE-Style Repair

Restore a secure electrical connection at the A/C compressor clutch coil with this Motormite HVAC clutch coil connector. Part number 85193 is built to match the original connector’s appearance and function for specified applications, using quality materials for dependable service in the engine bay.

It is a direct-fit style solution for vehicles that use a 1-wire harness with a diode, including select Hyundai Accent, Elantra, Scoupe, Sonata, and Excel models, as well as a wide range of BMW applications.

Key Features

• Motormite 85193 HVAC clutch coil connector
• OE-style replacement for specified compressor clutch wiring repairs
• 14-inch wiring harness length
• 18-gauge wire for HVAC electrical connection service
• Bullet-style male terminal with plastic terminal material
• Single-wire harness design for applications with a diode

Detailed Description

The Motormite 85193 is an HVAC clutch coil connector designed for compressor clutch circuit repair where the original connector has failed, overheated, or become damaged. It is engineered to match the form and function of the factory hardware on listed applications, making it a practical choice for Hyundai and BMW vehicles that require a 1-wire harness with diode configuration. This part number 85193 is commonly selected for A/C clutch coil connector replacement on 1980-1995 BMW and 1988-1995 Hyundai platforms.

This part cross-references 08835 and MT0129 for the same application.

Vehicle Fitment

• Fits 1995 Hyundai Accent, Diesel Kiki/Sanden compressor with 1 wire harness and diode
• Fits 1992-1995 Hyundai Elantra, Diesel Kiki/Sanden compressor with 1 wire harness and diode
• Fits 1991-1995 Hyundai Scoupe, Diesel Kiki/Sanden compressor with 1 wire harness and diode
• Fits 1989-1995 Hyundai Sonata, Diesel Kiki/Sanden compressor with 1 wire harness and diode
• Fits 1988-1994 Hyundai Excel, Diesel Kiki/Sanden compressor with 1 wire harness and diode
• Fits 1991 BMW 318i, 1-wire harness with diode for HVAC Clutch Coil Connector
• Fits 1984-1985 BMW 318i, 1-wire harness with diode for HVAC Clutch Coil Connector
• Fits 1991 BMW 318is, 1-wire harness with diode for HVAC Clutch Coil Connector
• Fits 1987-1991 BMW 325i, 1-wire harness with diode for HVAC Clutch Coil Connector
• Fits 1987-1991 BMW 325is, 1-wire harness with diode for HVAC Clutch Coil Connector
• Fits 1988-1991 BMW 325iX, 1-wire harness with diode for HVAC Clutch Coil Connector
• Fits 1985-1991 BMW 535i, 1-wire harness with diode for HVAC Clutch Coil Connector
• Fits 1985-1991 BMW 735i, 1-wire harness with diode for HVAC Clutch Coil Connector
• Fits 1988-1991 BMW 735iL, 1-wire harness with diode for HVAC Clutch Coil Connector
• Fits 1988-1991 BMW 750iL, 1-wire harness with diode for HVAC Clutch Coil Connector
• Fits 1991 BMW 850i, 1-wire harness with diode for HVAC Clutch Coil Connector
• Fits 1988-1991 BMW M3, 1-wire harness with diode for HVAC Clutch Coil Connector
• Fits 1991 BMW M5, 1-wire harness with diode for HVAC Clutch Coil Connector
• Fits 1988 BMW M5, 1-wire harness with diode for HVAC Clutch Coil Connector
• Fits 1989-1990 BMW 525i, 1-wire harness with diode for HVAC Clutch Coil Connector
• Fits 1985-1989 BMW 635CSi, 1-wire harness with diode for HVAC Clutch Coil Connector
• Fits 1982-1988 BMW 528e, 1-wire harness with diode for HVAC Clutch Coil Connector
• Fits 1988 BMW 535is, 1-wire harness with diode for HVAC Clutch Coil Connector
• Fits 1987-1988 BMW M6, 1-wire harness with diode for HVAC Clutch Coil Connector
• Fits 1984-1987 BMW 325e, 1-wire harness with diode for HVAC Clutch Coil Connector
• Fits 1985-1986 BMW 524td, 1-wire harness with diode for HVAC Clutch Coil Connector
• Fits 1983-1984 BMW 533i, 1-wire harness with diode for HVAC Clutch Coil Connector
• Fits 1980-1983 BMW 320i, 1-wire harness with diode for HVAC Clutch Coil Connector
• Fits 1980-1981 BMW 528i, 1-wire harness with diode for HVAC Clutch Coil Connector

Common Repair Uses

• Broken or heat-damaged A/C compressor clutch connector
• Intermittent compressor clutch engagement caused by poor terminal contact
• Corroded or brittle HVAC wiring at the compressor
• Restoration of factory-style electrical connection on listed Hyundai and BMW models

Installation Notes and Tips

Verify the compressor connector style before installation, especially on Diesel Kiki/Sanden applications and BMW vehicles using a 1-wire harness with diode. Match the bullet terminal configuration and wire routing to the original harness, and inspect the surrounding HVAC wiring for heat damage or corrosion before reconnecting the circuit. Confirm the vehicle application against the listed fitment details for the exact year and model.

Quality Assurance

Motormite manufactures this connector as an OE-style replacement using quality materials for reliable performance and durability in HVAC electrical service.
