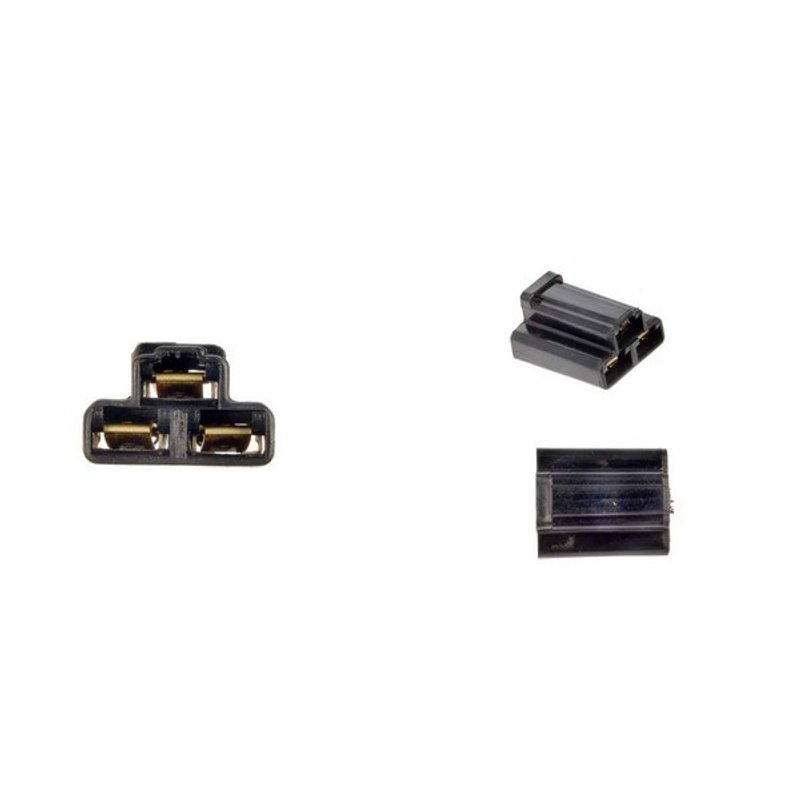

Motormite 85846 HVAC Relay Connector

Reliable HVAC Relay Connector for Chevrolet Blazer and GMC Jimmy

The Motormite 85846 HVAC relay connector is designed to provide a secure and efficient electrical connection for your vehicle's air conditioning system. Specifically compatible with Chevrolet Blazer and GMC Jimmy models, this connector ensures proper relay function and wiring integrity.

• 12-inch wiring harness length for flexible installation
• 18-gauge wire measurement suitable for HVAC electrical loads
• Three-wire configuration to support relay operation
• Female blade terminal type for secure and easy connections
• Durable plastic terminal material for insulation and protection

Technical Details of the Motormite 85846 HVAC Relay Connector

This HVAC relay connector features a 12-inch wiring harness that allows for convenient routing within the engine compartment or HVAC system area. The 18-gauge wire size is appropriate for handling the electrical current required by the air conditioning relay without excessive voltage drop. The connector includes three wires, each terminated with female blade terminals made from plastic material, providing reliable insulation and resistance to environmental factors. The blade terminal design facilitates quick and secure connections to the relay terminals, minimizing the risk of loose contacts or electrical faults.

Compatible Vehicles and Application

The Motormite 85846 relay connector is compatible with Chevrolet Blazer and GMC Jimmy models, making it a suitable replacement part for HVAC electrical repairs or upgrades. It is intended for use in the air conditioning relay circuit, ensuring proper relay activation and system performance.

• Resolves faulty or damaged HVAC relay connections
• Replaces worn or corroded wiring harnesses in the A/C system
• Addresses intermittent air conditioning relay operation
• Prevents electrical shorts caused by degraded terminals
• Supports restoration of HVAC system electrical integrity

Installation Notes and Tips

When installing the Motormite 85846 HVAC relay connector, ensure the vehicle's battery is disconnected to avoid electrical hazards. Route the 12-inch wiring harness carefully to prevent contact with hot engine components or moving parts. Confirm that the female blade terminals are fully seated on the relay terminals to maintain a secure connection. Use dielectric grease if necessary to protect terminals from moisture and corrosion. Verify proper operation of the air conditioning system after installation.

Quality Assurance and Warranty

Motormite parts are manufactured to meet or exceed OEM specifications for fit and function. The 85846 HVAC relay connector undergoes quality control inspections to ensure durability and electrical performance. While specific warranty details may vary, Motormite typically offers limited warranties covering defects in material and workmanship. Consult product documentation or the supplier for exact warranty terms.
