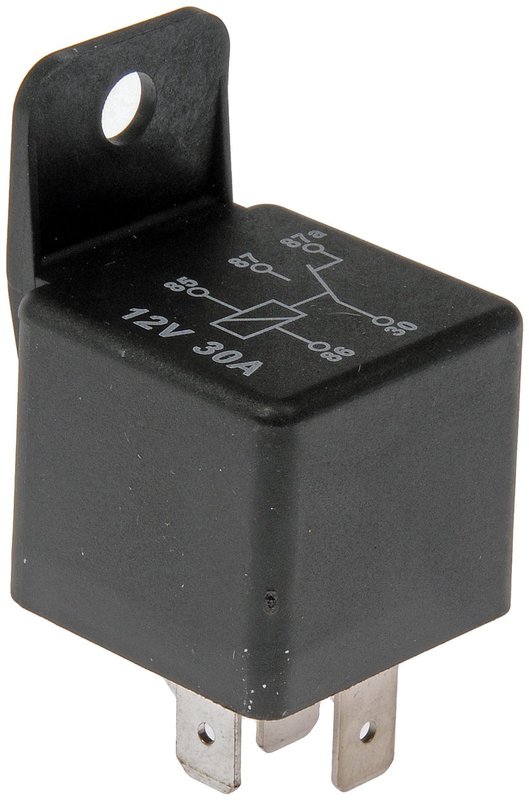

Motormite 88069 A/C Compressor Clutch Relay

Reliable Motormite A/C Compressor Clutch Relay for Select Vehicles

The Motormite 88069 A/C compressor clutch relay is designed to provide dependable performance in your vehicle's HVAC system. Engineered for 12-volt electrical systems, this relay ensures proper engagement of the A/C compressor clutch, helping maintain optimal air conditioning function in a variety of makes and models.

• Voltage: 12V for standard automotive electrical systems
• Terminal Type: Pin with blade design for secure connections
• Terminal Quantity: 5 terminals to support complex wiring needs
• Amperage Rating: 30 amps suitable for A/C compressor clutch circuits
• Mounting Bracket Included for easy and stable installation
• Compact Dimensions: 2.05 inches height, 1.24 inches length, 1.115 inches width
• Package Contents: Includes one relay unit

Technical Overview of Motormite 88069 Relay

This A/C compressor clutch relay from Motormite is built to meet the electrical demands of various automotive HVAC systems. The 12-volt relay features five blade-style pin terminals, providing reliable electrical contact and compatibility with factory wiring harnesses. Its 30-amp amperage rating supports the power requirements of compressor clutches in vehicles such as Chevrolet Blazer, GMC Sierra, Jeep Cherokee, Cadillac DeVille, and Porsche 928. The included mounting bracket simplifies installation by securing the relay firmly in place, reducing vibration and potential connection issues.

Compatible Vehicles and Applications

The Motormite 88069 relay is compatible with a wide range of vehicles, including but not limited to Buick, Cadillac, Chevrolet, Chrysler, Dodge, GMC, Jeep, Oldsmobile, Plymouth, Pontiac, and Porsche models. Specific models supported include Chevrolet Camaro, GMC Sierra 1500, Jeep Wrangler, Cadillac Eldorado, and Porsche 928, among others. This relay is ideal for replacing faulty or worn A/C compressor clutch relays in these vehicles to restore proper HVAC operation.

• Prevents A/C compressor clutch from failing to engage
• Resolves intermittent or no cooling issues related to relay failure
• Eliminates electrical faults causing compressor clutch cycling
• Addresses overheating or relay burnout problems
• Restores consistent A/C system performance in compatible vehicles

Installation Notes and Tips

When installing the Motormite 88069 relay, ensure the vehicle’s ignition is off and the battery is disconnected to avoid electrical hazards. Verify the relay terminals match the vehicle’s wiring harness and that the mounting bracket is securely fastened to prevent vibration damage. Consult the vehicle’s service manual for specific relay location and wiring diagrams. Proper installation will help maintain reliable A/C compressor clutch operation and extend the relay’s service life.

Quality Assurance and Warranty Information

Motormite products are manufactured to meet industry standards for automotive electrical components. The 88069 A/C compressor clutch relay undergoes quality control testing to ensure durability and consistent performance. While specific warranty details are not provided, Motormite typically offers limited warranties covering defects in materials and workmanship. For warranty claims, refer to the original purchase documentation or contact the product distributor.
