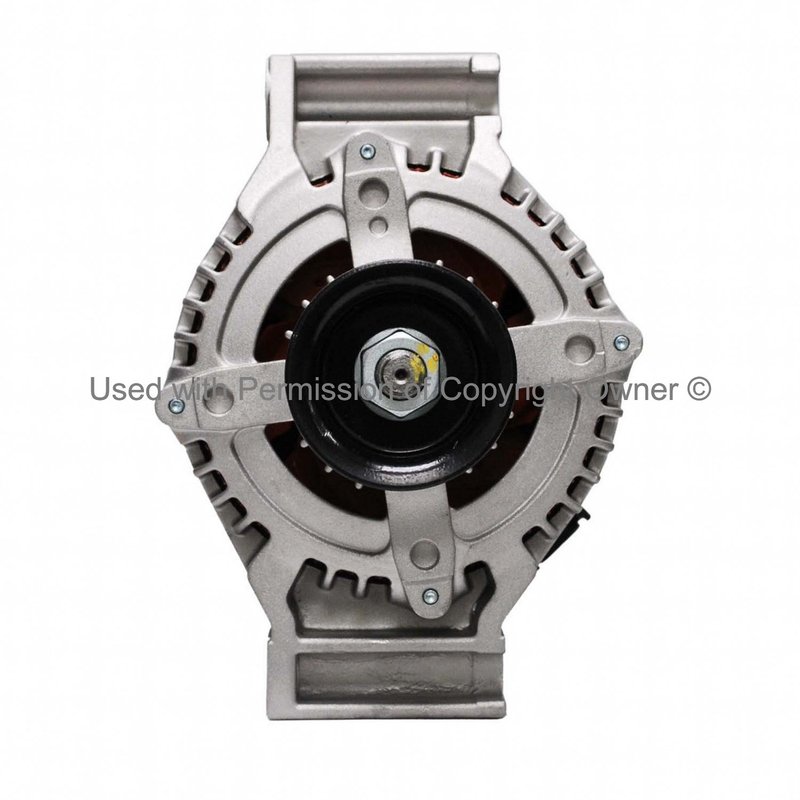

MPA Electrical 11248 Alternator
| Brand | MPA Electrical 11248 |
|---|---|
| Amps | 150 Amps |
| Clock | 7:30 |
| Fan | Internal |
| Manufacturer | Nippondenso |
| Pulley | 5 Groove Serpentine |
| Regulator | Internal |
| Rotation | Clockwise |
| Volts | 12 Volts |
| Product line | Remanufactured |
| Fits | Cadillac · 13 vehicles |
Remanufactured. Restored to deliver dependable charging performance.
Internal regulator. Built for stable voltage control in the charging system.
5-groove serpentine pulley. Provides secure belt engagement for smooth operation.
Cross-references Quality-Built 11248, 104210-4340 and 25709327 for the same application. See all 3.
Remanufactured Alternator for Cadillac STS and SRX
MPA Electrical Part Number 11248 is a remanufactured 12-volt alternator built for select Cadillac charging system applications. It delivers 150 amps and uses an internal regulator, internal fan, and a 5-groove serpentine pulley for direct-fit replacement service.
Key Features
- 150 amp output for stable charging performance
- 12 volt electrical system application
- Internal regulator for integrated voltage control
- Internal fan design for alternator cooling
- 5-groove serpentine pulley
- Clockwise rotation with 7:30 clock position
- Remanufactured by MPA Electrical
- Built by Nippondenso manufacturer specification
Product Details
This MPA Electrical remanufactured alternator, part number 11248, is specified for 2006-2010 Cadillac STS and 2006-2009 Cadillac SRX applications. It is a 150 amp, 12 volt unit with an internal regulator and internal fan, making it a direct replacement choice for vehicles that use the Nippondenso-style charging system. This part cross-references Quality-Built 11248 for the same application.
Common Charging System Issues
- Battery warning light or charging system warning on the dash
- Low battery voltage after driving
- Dim lights or electrical accessories operating inconsistently
- Alternator noise, bearing wear, or charging output loss
- Vehicle starting problems caused by insufficient charging
Installation Notes
Verify pulley style, rotation, clock position, and electrical connector match the original unit before installation. Confirm the vehicle uses a 5-groove serpentine belt setup and the correct Nippondenso alternator configuration. For Cadillac STS and Cadillac SRX charging system service, compare the original part number and mounting layout to Part Number 11248 before replacement.
Quality Assurance
MPA Electrical remanufactured components are rebuilt for replacement use in automotive charging systems. Part Number 11248 is listed with OE-style specifications for the confirmed Cadillac STS and SRX fitments shown above.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2010 | Cadillac | STS | 4.6L | V8 | N/A | Remanufactured |
| 2009 | Cadillac | SRX | 4.6L | V8 | N/A | Remanufactured |
| 2009 | Cadillac | STS | 4.6L | V8 | N/A | Remanufactured |
| 2009 | Cadillac | STS | 4.4L | V8 | N/A | Remanufactured |
| 2008 | Cadillac | SRX | 4.6L | V8 | N/A | Remanufactured |
| 2008 | Cadillac | STS | 4.6L | V8 | N/A | Remanufactured |
| 2008 | Cadillac | STS | 4.4L | V8 | N/A | Remanufactured |
| 2007 | Cadillac | SRX | 4.6L | V8 | N/A | Remanufactured |
| 2007 | Cadillac | STS | 4.6L | V8 | N/A | Remanufactured |
| 2007 | Cadillac | STS | 4.4L | V8 | N/A | Remanufactured |
| 2006 | Cadillac | SRX | 4.6L | V8 | N/A | Remanufactured |
| 2006 | Cadillac | STS | 4.6L | V8 | N/A | Remanufactured |
| 2006 | Cadillac | STS | 4.4L | V8 | N/A | Remanufactured |
