MPA Electrical
Remanufactured

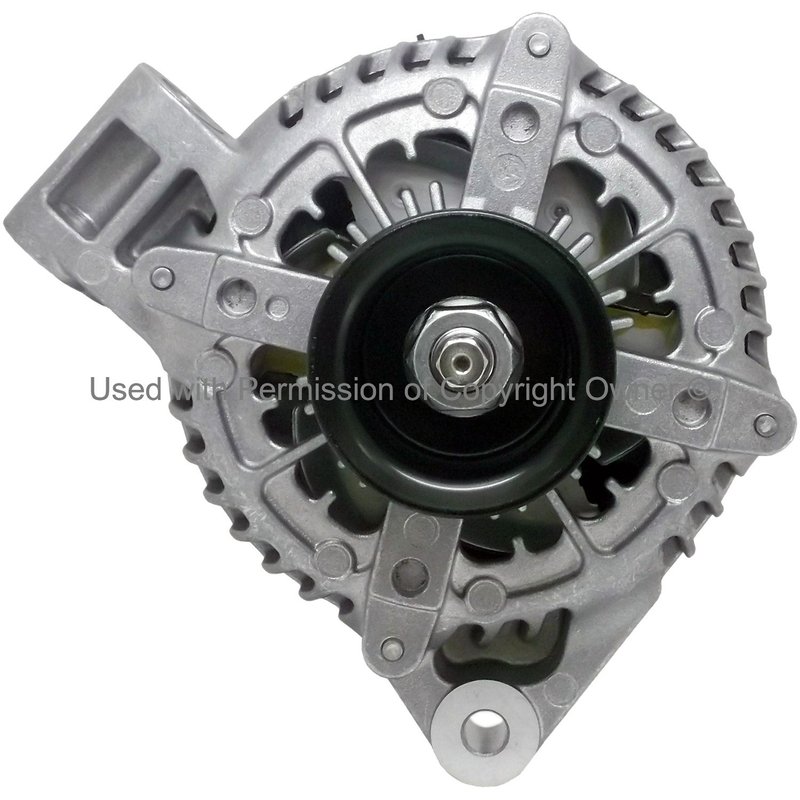

MPA Electrical 11645 Alternator

Brand MPA Electrical 11645
Voltage 12.0
Plug Clock Rear View Main Mounting Ear at 6 O Clock 1
Fan Type Internal
Rotation Direction Clockwise (right)
Pulley Included Yes
Family Nippondenso
Pulley Groove Quantity 6
Pulley Belt Type Serpentine
Regulator Type Internal
Decoupled Or Clutch Pulley No
Amperage Rating 220.0
Product line Remanufactured
Fits Cadillac · 7 vehicles

OE fit, form, and function. Remanufactured for a direct replacement experience.

Internal regulator. Built into the alternator for a cleaner, simpler setup.

Serpentine pulley included. Ready for belt-driven charging applications.

Cross-references 22738302 and 23113530 for the same application. See all 2.

$404.37Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $404.37
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.

Remanufactured Alternator for Cadillac XTS

MPA Electrical Part Number 11645 is a remanufactured 12-volt alternator built for OE fit, form, and function. It is engineered for the charging demands of the Cadillac XTS and uses updated remanufacturing and testing processes to support reliable electrical output.

Compatible with 2013-2019 Cadillac XTS charging system applications, this alternator includes an internal regulator, internal fan, and a serpentine pulley setup with 6 grooves. The clockwise rotation and Nippondenso family design help match the original equipment configuration for direct replacement service.

Key Features

  • MPA Electrical remanufactured alternator, Part Number 11645
  • 12.0-volt charging system component
  • 220.0 amp amperage rating
  • Internal regulator and internal fan design
  • Serpentine pulley with 6 grooves included
  • Clockwise (right) rotation
  • Nippondenso family construction
  • Rear view main mounting ear at 6 o'clock plug clock position

Product Details

This remanufactured alternator is built for drivers and technicians replacing a worn charging unit on a Cadillac XTS. MPA Electrical remanufactured alternators are produced to match OE fit, form, and function while using modern remanufacturing and testing methods to verify performance before installation. Part Number 11645 is also cross-referenced to 22738302 and 23113530 for the same application.

For 2013-2019 Cadillac XTS models, this alternator supports the vehicle’s electrical system by restoring charging output for battery maintenance, accessory operation, and stable voltage delivery. The included pulley and internal regulation setup help align the replacement unit with the original charging system layout.

What It Helps Fix

  • Battery warning light caused by low alternator output
  • Weak charging performance during driving
  • Dim lights or unstable electrical operation
  • Battery drain from a failing charging system
  • Noise or charging irregularities from a worn alternator

Installation Notes

Verify the vehicle’s original alternator specifications before installation, including voltage, amperage, pulley style, rotation direction, and plug clock position. This unit is configured for 2013-2019 Cadillac XTS applications and should be matched to the existing charging system layout. Confirm belt type, mounting ear orientation, and connector alignment during replacement.

Quality Assurance

MPA Electrical remanufactured alternators are processed with OE-style fitment goals and tested using current remanufacturing and validation methods to support dependable replacement performance. Part Number 11645 is built for direct replacement service on Cadillac XTS charging system applications.

This part fits 7 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersNotes
2019CadillacXTS3.6LV6Remanufactured
2018CadillacXTS3.6LV6Remanufactured
2017CadillacXTS3.6LV6Remanufactured
2016CadillacXTS3.6LV6Remanufactured
2015CadillacXTS3.6LV6Remanufactured
2014CadillacXTS3.6LV6Remanufactured
2013CadillacXTS3.6LV6Remanufactured
Directly replaces or cross-references 2 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
2273830223113530
