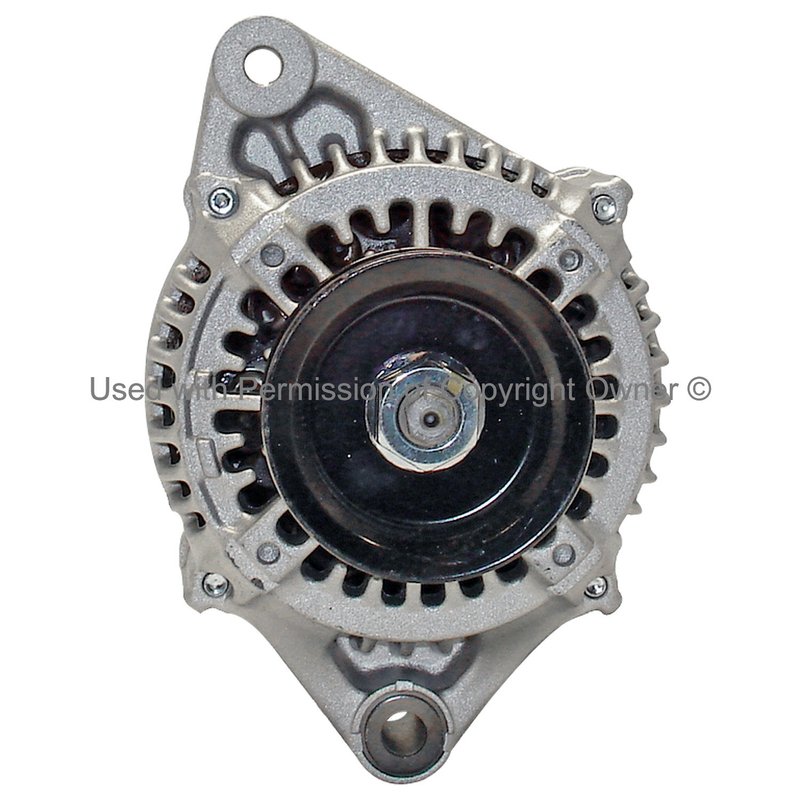

MPA Electrical 13677N Alternator
| Brand | MPA Electrical 13677N |
|---|---|
| Voltage | 12.0 |
| Plug Clock Rear View Main Mounting Ear at 6 O Clock | 12 |
| Fan Type | Internal |
| Rotation Direction | Counterclockwise (left) |
| Pulley Included | Yes |
| Family | Nippondenso |
| Pulley Groove Quantity | 4 |
| Pulley Belt Type | Serpentine |
| Regulator Type | Internal |
| Decoupled Or Clutch Pulley | No |
| Amperage Rating | 90.0 |
| Product line | New |
| Fits | Acura · 6 vehicles |
OE replacement. True fit, form, and function for a straightforward swap.
Internal regulator. Built with an internal fan and regulator for integrated control.
Serpentine pulley. Includes a 4-groove pulley for belt-driven operation.
Cross-references 06311-P75-A01, 31100-P72-013 and 31100-P72-013RM for the same application. See all 8.
OE Replacement Alternator for Integra
MPA Electrical 13677N is a new 12-volt alternator built as an OE-style replacement for select Acura Integra applications. It is configured with an internal regulator, internal fan, 90-amp output, and a 4-groove serpentine pulley for direct-fit charging system service.
Fits 1996-2001 Acura Integra, N/A. This part number, 13677N, is also referenced for related charging system applications where the same Nippondenso-style alternator configuration is required.
Key Features
- 12.0-volt alternator for standard vehicle charging systems
- 90.0 amp amperage rating for OE-style electrical output
- Internal regulator and internal fan design
- Counterclockwise (left) rotation direction
- 4-groove serpentine pulley included
- Nippondenso family alternator construction
- New replacement part from MPA Electrical
Product Details
MPA Electrical 13677N is engineered as a direct replacement alternator for Acura Integra models from 1996 through 2001. The unit uses a serpentine belt pulley, internal voltage regulation, and a counterclockwise rotation layout to match the original charging system configuration. With a 90-amp rating, this alternator supports the vehicle’s electrical demands while maintaining OE-style fit, form, and function. The 13677N part number is a practical match for drivers servicing a 1996-2001 Acura Integra charging system.
Common Issues This Part Can Address
- Battery warning light caused by alternator output loss
- Low charging voltage during normal driving
- Dim lights or unstable electrical performance
- Noise or wear related to a failing alternator assembly
- Charging system failure on Acura Integra models
Installation Notes and Tips
Verify pulley groove count, rotation direction, plug clock position, and mounting ear orientation before installation. Confirm the vehicle uses the Nippondenso-style alternator layout and a serpentine belt drive. Inspect the belt, electrical connectors, and charging system wiring during replacement to help ensure proper operation after installation.
Quality Assurance
MPA Electrical New Alternators are built as OE replacement parts with fit, form, and function in mind, and they are tested using current validation methods to support consistent product quality.
| Year | Make | Model | Submodel | Liters | Cylinders | Notes |
|---|---|---|---|---|---|---|
| 2001 | Acura | Integra | LS | 1.8L | L4 | New |
| 2000 | Acura | Integra | LS | 1.8L | L4 | New |
| 1999 | Acura | Integra | GS | 1.8L | L4 | New |
| 1998 | Acura | Integra | RS | 1.8L | L4 | New |
| 1997 | Acura | Integra | LS | 1.8L | L4 | New |
| 1996 | Acura | Integra | — | 1.8L | L4 | New |
