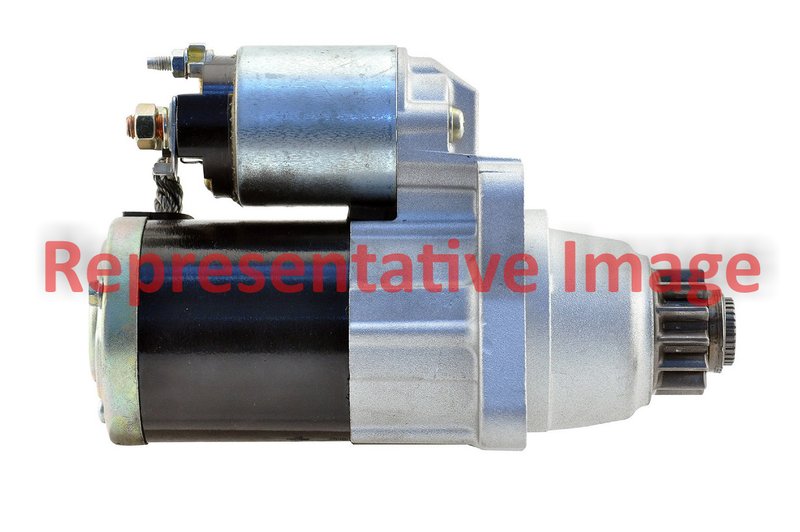

MPA Electrical 246-31126 Starter

Starter Overview

This MPA Electrical starter, part number 246-31126, is a new replacement unit for select Hino medium-duty trucks. It is built for applications that require a 12V, 4.8kW starter with an 11-tooth clockwise pinion and PA90L ND configuration.

Key Features

• New starter assembly for direct replacement use.
• 12V electrical system with 4.8kW output.
• 11-tooth clockwise pinion design.
• PA90L ND configuration for listed applications.
• Fits multiple Hino 238, 258ALP, 258LP, 268A, 338, and 358 applications.

Fitment Details

Compatible with 2011-2017 Hino 338, N/A; 2011-2017 Hino 358, N/A; 2011-2014 Hino 238, N/A; 2011-2014 Hino 258ALP, N/A; 2011-2014 Hino 258LP, N/A; and 2011-2014 Hino 268A, N/A. Part number 246-31126 is listed for 30 expanded vehicle applications across these Hino models.

Common Uses

• No-crank or slow-crank starting complaints.
• Starter failure from worn internal electrical components.
• Replacement after pinion or drive wear.
• Restoration of proper engine cranking performance.

Installation Notes

Verify the 12V system, 4.8kW rating, 11-tooth clockwise pinion, and PA90L ND configuration before installation. Match the starter to the vehicle’s original application data and confirm connector and mounting details against the removed unit. Part number 246-31126 should be checked against the existing starter specification before final installation.
