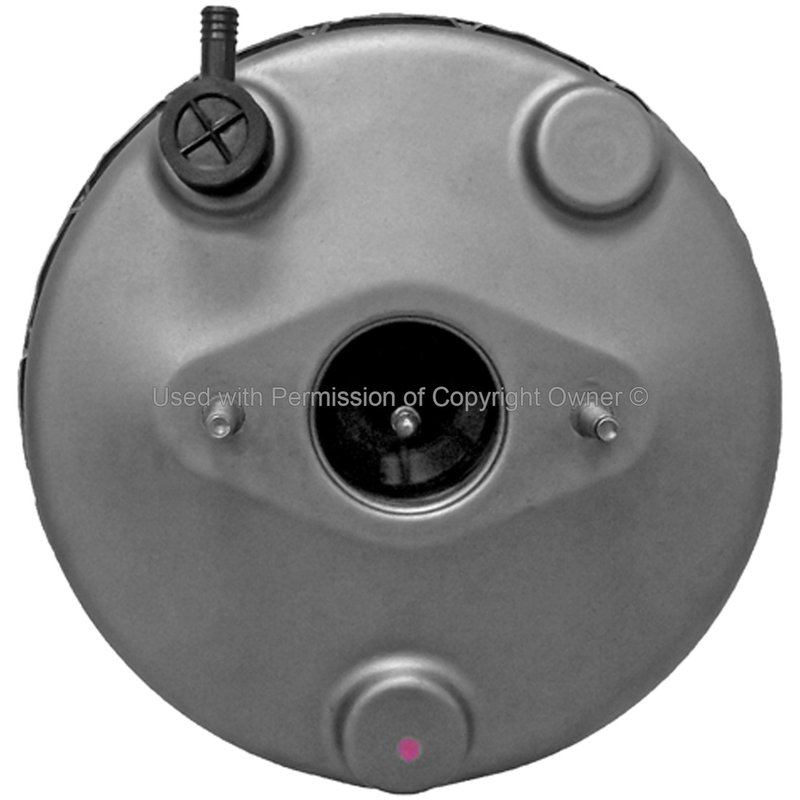

MPA Electrical B1302 Power Brake Booster

Remanufactured Vacuum Brake Booster for Ranger

Restore consistent brake assist with this remanufactured vacuum power brake booster from MPA Electrical. Built for 2007-2011 Ford Ranger applications, Part Number B1302 is a standard replacement for drivers needing firm vacuum assist and reduced pedal effort in everyday braking.

MPA Electrical’s Reman Vac Pwr Brake Booster w/o Master Cyl line focuses on replacement boosters that are tested for vacuum sealing, pressure transfer, and end-of-line performance. This unit is supplied without the master cylinder and uses a metal housing with an 8.77-inch diaphragm diameter for the specified Ranger fitment.

Key Features

• Brand: MPA Electrical
• Part Number: B1302
• Remanufactured vacuum power brake booster
• Standard replacement brake service grade
• Metal housing construction
• 8.77 in. diaphragm diameter
• 2 mounting studs
• Master cylinder not included
• Brake pedal rod extension not included
• Master cylinder stud thread size: 8 x 1.25 mm

Detailed Description

MPA Electrical B1302 is a remanufactured vacuum brake booster engineered for 2007-2011 Ford Ranger models. It is built to deliver braking assist with minimal pedal effort by maintaining a strong vacuum seal and reliable pressure transfer. The booster is tested at the end of the production process to verify performance before release.

This part cross-references Ford OE numbers 7L5Z2005AA and AL5Z2005A for the same application. If you are replacing a worn booster on a Ford Ranger, B1302 provides a direct-fit service replacement for the vacuum-assisted brake system.

Common Problems This Part Can Help Solve

• Hard brake pedal feel during normal stopping
• Reduced brake assist from a leaking vacuum booster
• Inconsistent pedal response under braking
• Loss of vacuum seal in the brake booster assembly
• Brake performance issues tied to booster wear on Ford Ranger models

Installation Notes and Tips

Fits 2007-2011 Ford Ranger, N/A. Confirm the master cylinder is transferred or replaced separately, since this booster does not include one. Verify the 8 x 1.25 mm master cylinder stud thread size and match the existing mounting layout before installation.

For best results, inspect the vacuum supply line, check the brake pedal linkage, and confirm the brake system is properly bled after service. Use the vehicle’s service information for torque values and adjustment procedures.

Quality Assurance

MPA Electrical remanufactures this booster with new replacement and specially treated components to support vacuum sealing and pressure transfer. Each unit undergoes 100% end-of-line testing using proprietary test equipment to verify function before shipment.
