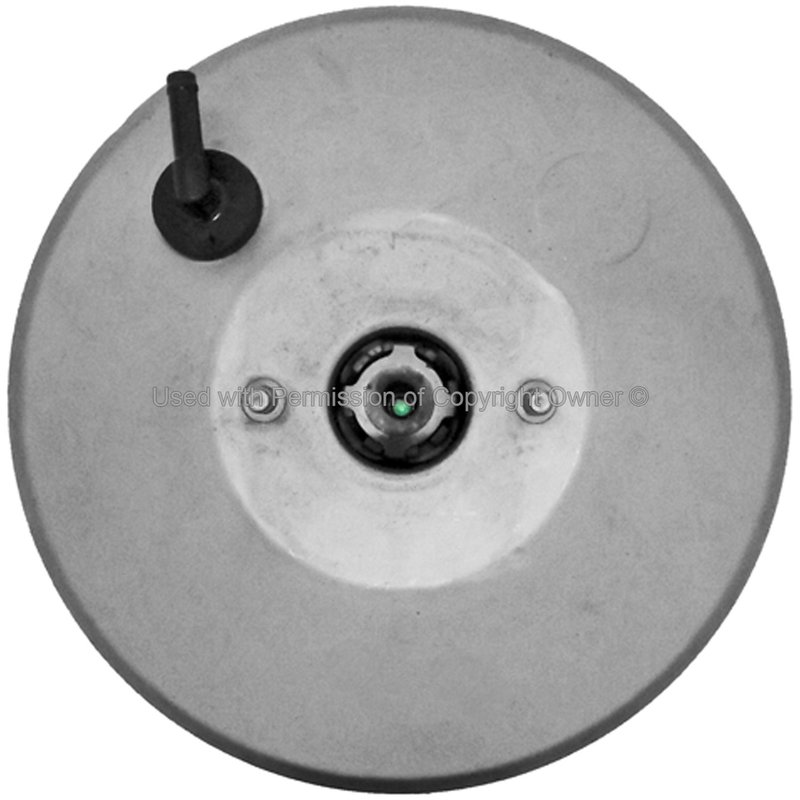

MPA Electrical B3060 Power Brake Booster

Vacuum Brake Booster for Toyota, Scion, and Pontiac

MPA Electrical B3060 is a remanufactured vacuum power brake booster built for direct replacement in select Toyota, Scion, and Pontiac applications. It is engineered to deliver strong braking assist with reduced pedal effort, helping restore consistent brake feel in vehicles such as the Toyota Corolla, Toyota Matrix, Scion tC, and Pontiac Vibe.

This MPA Electrical reman vac pwr brake booster w/o master cyl is a standard replacement unit with a metal housing and a 248.16 mm (9.77 in.) diaphragm diameter. It is supplied without the master cylinder, brake pedal rod extension, gasket or seal, front seal, or mounting bracket.

Key Features

• Part number: B3060
• Vacuum booster type for power brake assist
• Remanufactured standard replacement brake service grade
• Metal housing for OE-style fit and function
• 248.16 mm / 9.77 in. diaphragm diameter
• 2 mounting studs with 8 x 1.25 mm master cylinder stud thread size
• Master cylinder not included
• Brake pedal rod extension not included

Product Details

MPA Electrical’s remanufactured brake booster line is built for drivers who need dependable vacuum assist and consistent pedal response after booster wear or vacuum seal loss. Each unit is tested at the end of the production process using proprietary equipment to verify performance before release. B3060 is a direct-fit replacement for 2003-2008 Toyota Corolla, 2003-2008 Toyota Matrix, 2003-2008 Pontiac Vibe, and 2005-2010 Scion tC applications.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Fix

• Hard brake pedal feel caused by booster wear
• Reduced vacuum assist during braking
• Inconsistent pedal response after booster seal deterioration
• Brake assist loss related to internal diaphragm or housing wear
• Replacement needs on Toyota Corolla, Toyota Matrix, Scion tC, and Pontiac Vibe brake systems

Installation Notes

Verify master cylinder compatibility before installation, since the master cylinder is not included. Confirm the 2-stud mounting pattern and 8 x 1.25 mm stud thread size match the original setup on your vehicle. Inspect vacuum supply, pedal linkage, and sealing surfaces during replacement to help ensure proper brake assist after installation.

Quality Assurance

Each MPA Electrical B3060 remanufactured brake booster is end-of-line tested with proprietary equipment to confirm vacuum seal integrity and pressure transfer performance. The remanufactured construction uses new replacement and specially treated components to support reliable operation in the intended vehicle applications.
