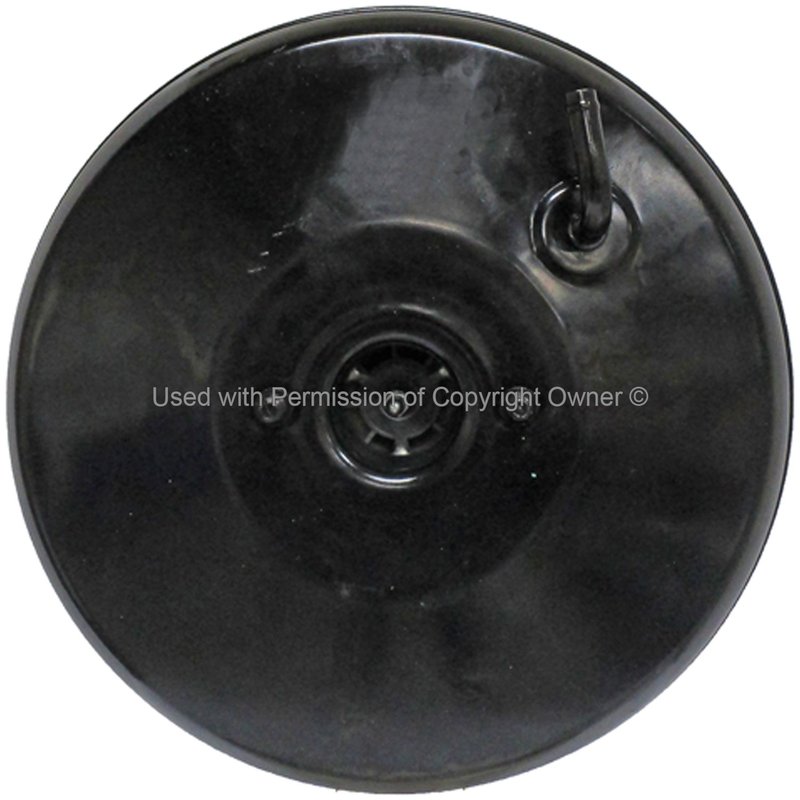

MPA Electrical B3068 Power Brake Booster

Reman Vacuum Brake Booster for Toyota and Lexus

MPA Electrical B3068 is a remanufactured vacuum power brake booster built for direct replacement on select Toyota and Lexus applications. It is engineered to deliver strong braking assist with low pedal effort, with 100% end-of-line testing to verify performance before it leaves the factory.

This reman Vac Pwr Brake Booster w/o Master Cyl is a standard replacement part for drivers servicing the brake assist system on 2001-2003 Lexus ES300, 2004-2006 Lexus ES330, 2002-2006 Toyota Camry, and 2004-2008 Toyota Solara. Part number B3068 is also cross-referenced to OE numbers 44610-06210 and 44610-06260 for the same application.

Key Features

• Brand: MPA Electrical
• Part number: B3068
• Remanufactured vacuum power brake booster
• Standard replacement brake service grade
• Metal housing construction
• 11.3 in. diaphragm diameter (287.02 mm)
• 2 mounting studs
• Master cylinder stud thread size: 8 x 1.25 mm
• Master cylinder not included
• Brake pedal rod extension not included
• Mounting bracket, gasket/seal, and front seal not included

Product Details

MPA Electrical’s reman Vac Pwr Brake Booster w/o Master Cyl line focuses on restoring brake assist performance with remanufactured and specially treated components. B3068 is built to help maintain vacuum seal integrity and consistent pressure transfer, which is critical when replacing a worn booster on a Toyota Camry, Lexus ES330, Lexus ES300, or Toyota Solara. The metal housing and vacuum booster design support OE-style fitment for the listed vehicles, while the 11.3-inch diaphragm size and 8 x 1.25 mm master cylinder stud thread size align with the specified brake system configuration.

Common Brake Assist Problems It Can Address

• Hard brake pedal feel caused by a failing vacuum booster
• Reduced brake assist during normal stopping
• Loss of vacuum seal in the brake booster assembly
• Inconsistent pedal response after booster wear or internal diaphragm issues
• Brake system service needs on high-mileage Toyota and Lexus sedans and coupes

Installation Notes and Fitment

• Fits 2001-2003 Lexus ES300, N/A
• Fits 2004-2006 Lexus ES330, N/A
• Fits 2002-2006 Toyota Camry, N/A
• Fits 2004-2008 Toyota Solara, N/A

Verify master cylinder compatibility, mounting points, and brake pedal linkage before installation. This booster is supplied without a master cylinder, brake pedal rod extension, gasket/seal, front seal, or mounting bracket, so reuse or source the correct related components as needed for the vehicle. Confirm the vacuum hose routing and inspect the brake system for leaks before returning the vehicle to service.

Quality Assurance

MPA Electrical subjects each brake booster to 100% end-of-line testing using proprietary test equipment. That process helps confirm vacuum performance and pressure transfer on the finished remanufactured unit before shipment.
