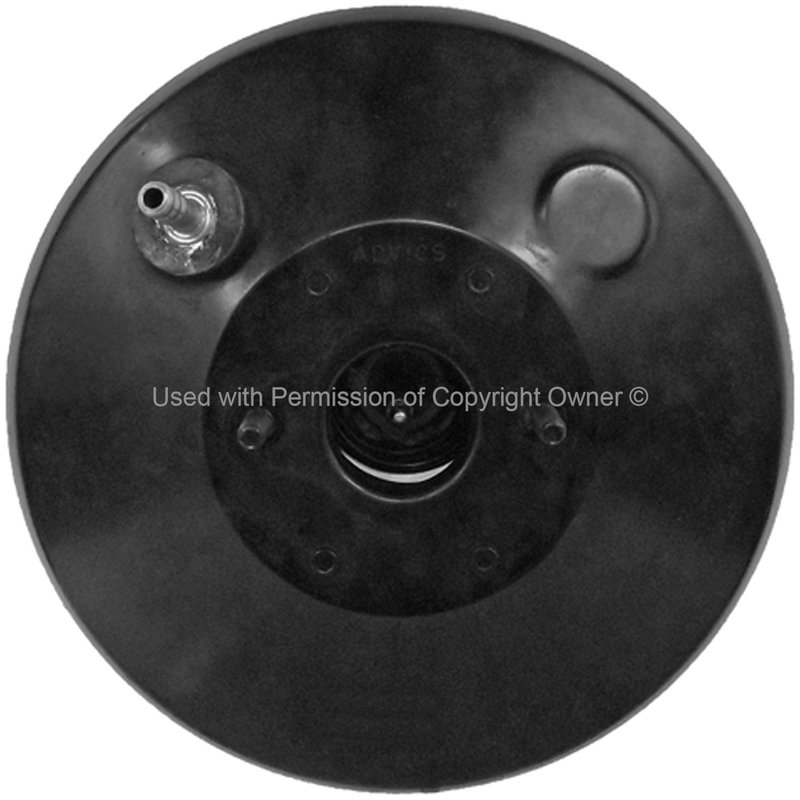

MPA Electrical B3260 Power Brake Booster

Remanufactured Vacuum Brake Booster for Toyota Yaris

Restore consistent brake assist with this remanufactured vacuum power brake booster from MPA Electrical. Built for 2006-2011 and 2015-2016 Toyota Yaris applications, Part Number B3260 is a standard replacement for drivers needing firm vacuum sealing and reduced pedal effort.

MPA Electrical’s Reman Vac Pwr Brake Booster w/o Master Cyl line focuses on remanufactured brake boosters that are tested for pressure transfer and vacuum retention. This B3260 unit follows that approach with a metal housing, vacuum booster design, and OE-style fitment for Toyota Yaris brake service.

Key Features

• Remanufactured vacuum power brake booster
• Standard replacement brake service grade
• Metal housing construction
• 247.65 mm / 9.75 in diaphragm diameter
• 2 mounting studs with 8 x 1.25 mm master cylinder stud thread size
• Master cylinder not included
• Brake pedal rod extension not included
• Gasket or seal not included
• Front seal not included
• Mounting bracket not included

Detailed Description

MPA Electrical B3260 is a remanufactured vacuum brake booster engineered for Toyota Yaris braking systems that require dependable assist with minimal pedal effort. It is built as a direct replacement-style booster for 2006-2011 Toyota Yaris and 2015-2016 Toyota Yaris applications, with a vacuum booster design and a 247.65 mm diaphragm diameter for consistent brake pedal response. The unit is supplied without a master cylinder, so it is intended for service where the existing master cylinder is retained or replaced separately.

This part cross-references Toyota 44610-52430 for the same application.

What It Helps Solve

• Hard brake pedal feel caused by a weak or leaking booster
• Reduced brake assist during normal stopping
• Vacuum loss that affects pedal response
• Brake system performance issues tied to booster wear
• Replacement needs on Toyota Yaris brake service jobs

Installation Notes and Tips

Verify the master cylinder stud thread size, mounting stud layout, and booster dimensions before installation. Because the master cylinder, gasket or seal, front seal, mounting bracket, and pedal rod extension are not included, transfer or source the required related components separately as needed. Confirm vacuum hose condition and inspect the brake system for leaks before returning the vehicle to service.

Quality Assurance

MPA Electrical remanufactures this brake booster with new replacement and specially treated components to improve vacuum sealing, pressure transfer, and overall performance. Each unit is 100% end-of-line tested using proprietary test equipment before release.
