Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

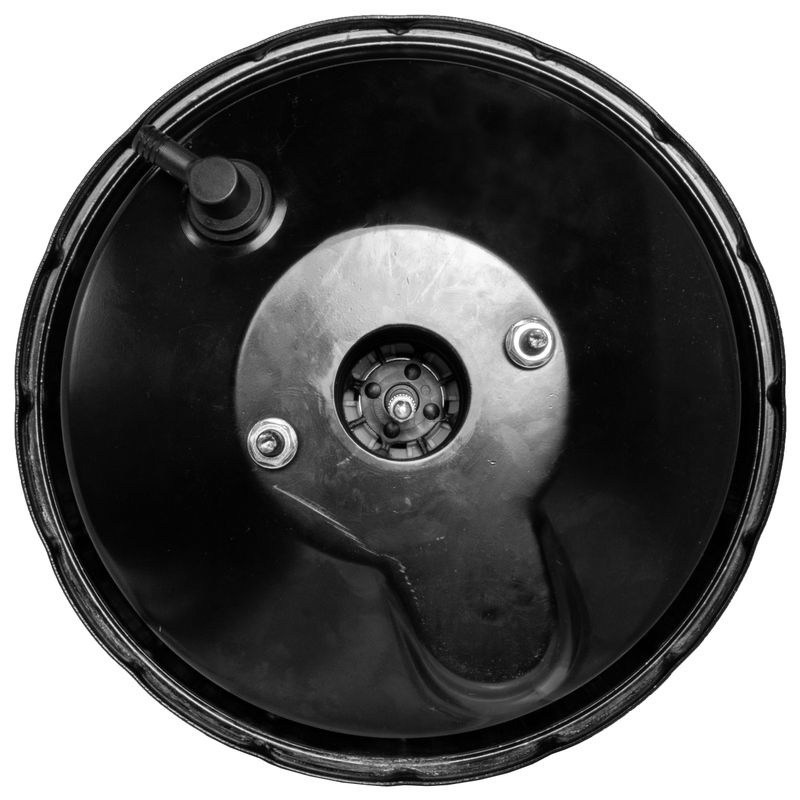

MPA Electrical B3285 Power Brake Booster
| Brand | MPA Electrical B3285 |
|---|---|
| Brake Service Grade | Standard replacement |
| Booster Type | Vacuum |
| Brake Pedal Rod Extension Included | No |
| Master Cylinder Included | No |
| Gasket Or Seal Included | No |
| Housing Material | Metal |
| Mounting Bracket Included | No |
| Front Seal Included | No |
| Master Cylinder Stud Thread Size (mm) | 8x1.25 |
| Mounting Stud Quantity | 2 |
| Product Condition | Remanufactured |
| Product line | Reman Vac Pwr Brake Booster w/o Master Cyl |
| Fits | Nissan · 6 vehicles |
Standard replacement. Remanufactured vacuum booster for dependable brake assist.
Metal housing. Built with specially treated components for a reliable vacuum seal.
100% tested. Every unit is end-of-line checked for consistent performance.
Cross-references 47210ZC00A, 47210ZC000 and 47210ZR00B for the same application. See all 4.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Vacuum Brake Booster for Nissan Titan
Restore firm, consistent brake assist with this remanufactured vacuum power brake booster from MPA Electrical. Built for 2004-2009 Nissan Titan applications, Part Number B3285 is a standard replacement unit for drivers replacing a worn booster on a Nissan Titan brake system.
MPA Electrical’s Reman Vac Pwr Brake Booster w/o Master Cyl line focuses on vacuum seal integrity, pressure transfer, and end-of-line testing. This B3285 booster is supplied without the master cylinder and uses a metal housing with an 8x1.25 master cylinder stud thread size.
Key Features
- Remanufactured vacuum power brake booster
- Standard replacement brake service grade
- Fits 2004-2009 Nissan Titan
- Metal housing construction
- Master cylinder not included
- Brake pedal rod extension not included
- Mounting bracket not included
- 2 mounting studs
- 8x1.25 master cylinder stud thread size
- 100% end-of-line tested by MPA Electrical
Product Details
MPA Electrical B3285 is engineered as a reman vacuum brake booster for Nissan Titan trucks from 2004 through 2009. It is built to deliver braking assist with reduced pedal effort by maintaining vacuum seal quality and reliable pressure transfer. The remanufactured construction uses specially treated and replacement components to support consistent brake pedal response in everyday driving.
This part cross-references Nissan OE numbers 47210ZC00A and 47210ZC000 for the same application. Use B3285 when replacing a worn or leaking booster on a 2004-2009 Nissan Titan brake system.
Common Problems This Part Can Address
- Hard brake pedal feel
- Reduced brake assist
- Vacuum leak at the booster
- Inconsistent pedal response
- Brake booster wear on a Nissan Titan
Installation Notes
Verify master cylinder compatibility before installation, since the master cylinder is not included. Confirm the 8x1.25 stud thread size, mounting points, and pedal linkage setup against the original unit before assembly. Proper vacuum line condition and correct sealing surfaces are important for reliable brake assist after replacement.
Quality Assurance
MPA Electrical subjects each booster to 100% end-of-line testing using proprietary test equipment to confirm performance before release. The remanufactured design is built around vacuum seal integrity and pressure transfer consistency for 2004-2009 Nissan Titan brake service.
| Year | Make | Model | Submodel | Drive Type | Notes |
|---|---|---|---|---|---|
| 2009 | Nissan | TITAN | — | — | Reman Vac Pwr Brake Booster w/o Master Cyl |
| 2008 | Nissan | TITAN | — | — | Reman Vac Pwr Brake Booster w/o Master Cyl |
| 2007 | Nissan | TITAN | XE | RWD | Reman Vac Pwr Brake Booster w/o Master Cyl |
| 2006 | Nissan | TITAN | — | RWD | Reman Vac Pwr Brake Booster w/o Master Cyl |
| 2005 | Nissan | TITAN | — | RWD | Reman Vac Pwr Brake Booster w/o Master Cyl |
| 2004 | Nissan | TITAN | — | RWD | Reman Vac Pwr Brake Booster w/o Master Cyl |
