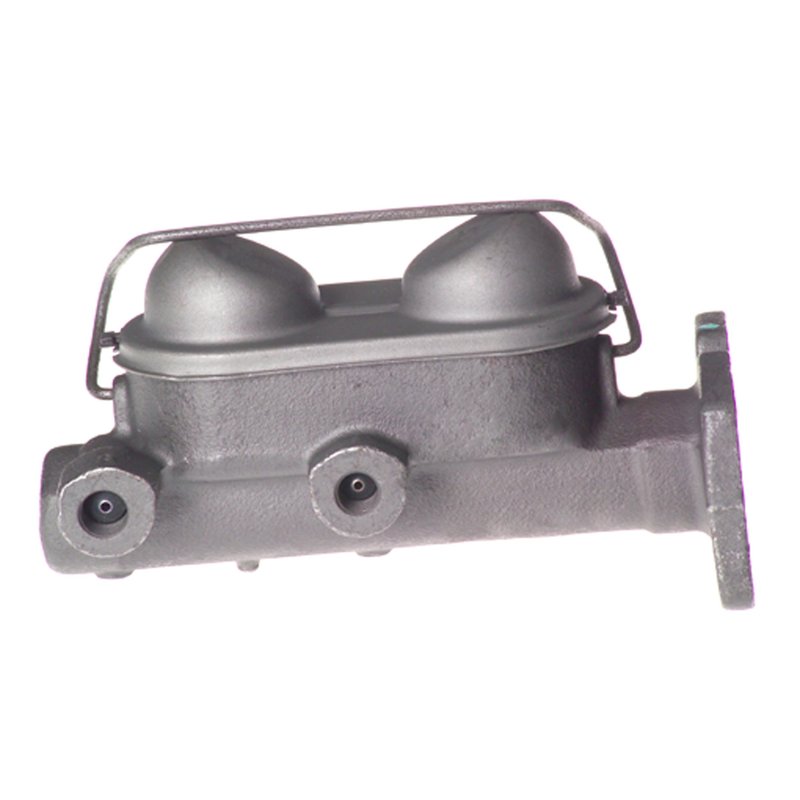

MPA Electrical M1516 Brake Master Cylinder
Brake Master Cylinder for Dodge Dart
Restore hydraulic braking response with this remanufactured brake master cylinder from MPA Electrical. Built for 1973-1975 Dodge Dart applications with front drum brakes, Part Number M1516 is a standard replacement that supports consistent pedal feel and dependable brake pressure delivery.
Key Features
- Remanufactured brake master cylinder for front drum brake applications
- Cast iron master cylinder body with integral reservoir material
- 0.938 bore diameter for the specified OE-style application
- Includes master cylinder cap and reservoir
- Uses DOT 3 brake fluid
- 4 mounting holes with 0.3400 mounting hole diameter
- Standard replacement grade for direct service use
- Part number M1516
Product Details
MPA Electrical remanufactures brake master cylinders using OE sample references and testing protocols that verify performance against OE specifications. This M1516 unit is built as a reman with front drum brakes for Dodge Dart models, and it is engineered to restore braking performance after wear, internal leakage, or loss of hydraulic pressure. The cast iron construction, integral reservoir design, and DOT 3 fluid compatibility make it a practical replacement for service work on 1973-1975 Dodge Dart brake systems. This part cross-references Monroe Shocks & Struts (e.g., 172286) for the same application.
What It Helps Fix
- Low or spongy brake pedal feel
- Brake fluid bypass inside the master cylinder
- Reduced hydraulic pressure to the brake system
- Brake warning symptoms caused by master cylinder wear
- Loss of braking consistency in front drum brake setups
Installation Notes and Tips
Fits 1973-1975 Dodge Dart, N/A, reman with front drum brakes. Verify bore size, mounting pattern, and brake system configuration before installation. Transfer or source any required external components not included with the cylinder, and bench bleed the master cylinder before connecting brake lines. Use fresh DOT 3 brake fluid and bleed the system thoroughly after installation to remove trapped air.
Quality Assurance
MPA Electrical tests each unit against OE specifications using proprietary processes and strict protocols to help ensure consistent braking performance out of the box. Part Number M1516 is a remanufactured standard replacement brake master cylinder for service-focused repairs.
| Brand | MPA Electrical |
|---|---|
| Part Number | M1516 |
| Position | Reman with front drum brakes |
| Reservoir Material | Integral |
| Mounting Hardware Included | No |
| Grade Type | Standard replacement |
| Gasket Or Seal Included | No |
| Mounting Hole Quantity | 4 |
| Master Cylinder Bore Diameter | 0.938 |
| Brake Booster Included | No |
| Master Cylinder Cap Included | Yes |
| Master Cylinder Material | Cast iron |
| Push Rod Included | No |
| Reservoir Included | Yes |
| Sensor Included | No |
| Mounting Hole Diameter | 0.3400 |
| Mounting Bracket Included | No |
| Brake Pressure Switch(s) Included | No |
| Fluid Type | Dot 3 |
| Product Condition | Remanufactured |
This part fits 3 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1975 | Dodge | Dart | N/A | Reman with front drum brakes |
| 1974 | Dodge | Dart | N/A | Reman with front drum brakes |
| 1973 | Dodge | Dart | N/A | Reman with front drum brakes |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
