OE Quality
60-Day Returns

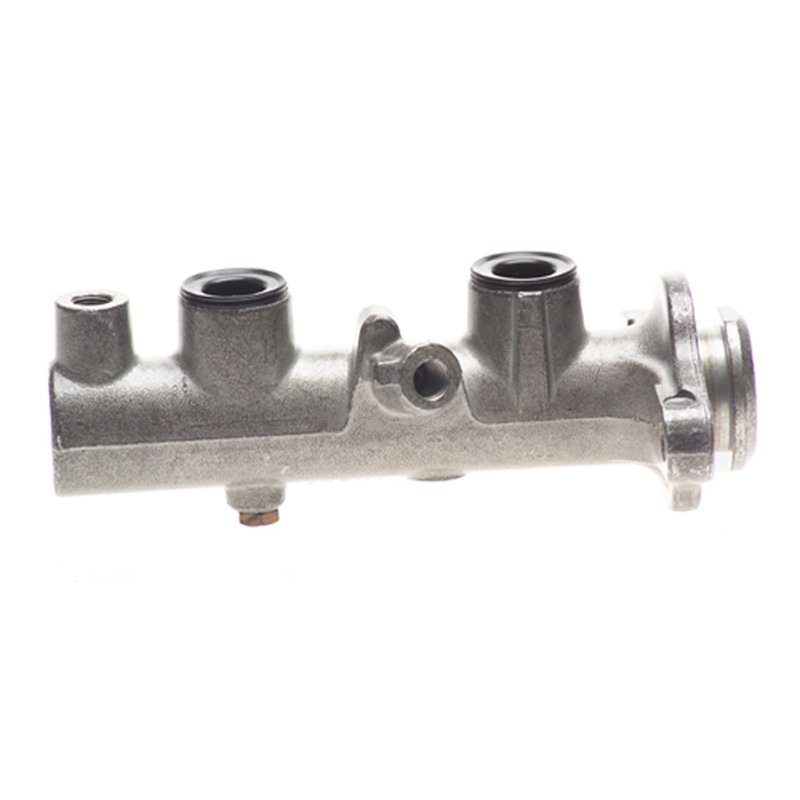

MPA Electrical M52734 Brake Master Cylinder
Brake Master Cylinder for Toyota Camry and Avalon
Restore hydraulic braking response with this remanufactured brake master cylinder from MPA Electrical. Built for Toyota Camry and Toyota Avalon applications with front disc brakes, part number M52734 is a standard replacement that helps return consistent pedal feel and braking performance.
Key Features
- Remanufactured brake master cylinder for brake hydraulic service
- 1-inch master cylinder bore diameter
- Aluminum master cylinder construction
- Gasket or seal included
- Uses DOT 3 brake fluid
- Two mounting holes with 0.355-inch mounting hole diameter
- Standard replacement grade
Product Details
MPA Electrical M52734 is engineered to restore braking performance using OE sample data and testing protocols aligned to OE specifications. This reman with front disc brakes application is compatible with 1992 Toyota Camry, 1995-2000 Toyota Camry, and 1995-1996 Toyota Avalon. The aluminum body, 1-inch bore, and remanufactured construction support dependable hydraulic pressure delivery in the brake system. This part cross-references 4720133110 for the same application.
Common Brake Issues It Can Address
- Low or inconsistent brake pedal response
- Internal hydraulic leakage in the master cylinder
- Brake fluid loss at the cylinder seals
- Reduced braking performance from worn internal components
- Pedal travel changes caused by master cylinder wear
Installation Notes and Tips
Before installation, verify the vehicle has front disc brakes and confirm the mounting pattern, bore size, and fluid specification. This master cylinder does not include the reservoir, cap, brake booster, push rod, sensor, or mounting hardware. Bench bleeding is recommended before final installation, and the brake system should be filled with DOT 3 fluid only.
Quality Assurance
MPA Electrical remanufactures brake master cylinders using OE reference samples and controlled testing against OE specifications to help ensure consistent braking performance out of the box. M52734 is built as a standard replacement for Toyota Camry and Toyota Avalon brake hydraulic service.
| Brand | MPA Electrical |
|---|---|
| Part Number | M52734 |
| Position | Reman with front disc brakes |
| Mounting Hardware Included | No |
| Grade Type | Standard replacement |
| Gasket Or Seal Included | Yes |
| Mounting Hole Quantity | 2 |
| Master Cylinder Bore Diameter | 1 |
| Brake Booster Included | No |
| Master Cylinder Cap Included | No |
| Master Cylinder Material | Aluminum |
| Push Rod Included | No |
| Reservoir Included | No |
| Sensor Included | No |
| Mounting Hole Diameter | 0.355 |
| Mounting Bracket Included | No |
| Brake Pressure Switch(s) Included | No |
| Fluid Type | Dot 3 |
| Product Condition | Remanufactured |
This part fits 9 vehicles. Search below:
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2000 | Toyota | Camry | 2.2L | L4 | N/A | Reman with front disc brakes | |
| 1999 | Toyota | Camry | N/A | Reman with front disc brakes | |||
| 1998 | Toyota | Camry | N/A | Reman with front disc brakes | |||
| 1997 | Toyota | Camry | N/A | Reman with front disc brakes | |||
| 1996 | Toyota | Avalon | N/A | Reman with front disc brakes | |||
| 1996 | Toyota | Camry | N/A | Reman with front disc brakes | |||
| 1995 | Toyota | Avalon | N/A | Reman with front disc brakes | |||
| 1995 | Toyota | Camry | N/A | Reman with front disc brakes | |||
| 1992 | Toyota | Camry | XLE | 3.0L | V6 | N/A | Reman with front disc brakes |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
