OE Quality
60-Day Returns

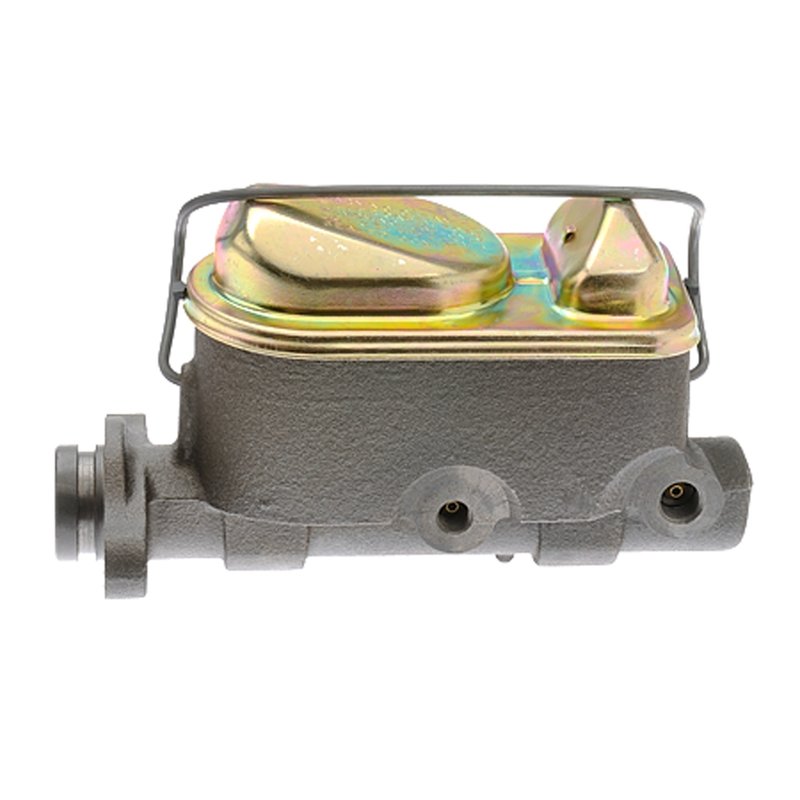

MPA Electrical NM1508 Brake Master Cylinder
Brake Master Cylinder for 1972 Ford, Lincoln, and Mercury
Restore braking response with this new brake master cylinder from MPA Electrical. Built for 1972 Ford LTD, Lincoln Continental, Mercury Colony Park, and Mercury Marquis models with front disc brakes, Part Number NM1508 is a standard replacement for hydraulic brake service.
MPA Electrical’s New with front disc brakes product line focuses on direct-fit brake hydraulics for specific vehicle applications. This master cylinder is engineered to match OE specifications and is tested against those standards for consistent pedal feel and dependable brake pressure delivery.
Key Features
- Brand: MPA Electrical
- Part Number: NM1508
- Brake master cylinder for front disc brake applications
- Cast iron master cylinder body with integral reservoir
- 0.938-inch bore diameter
- DOT 3 brake fluid type
- New condition, standard replacement grade
- Reservoir included; master cylinder cap included
- 2 mounting holes with 0.412-inch mounting hole diameter
Detailed Description
MPA Electrical NM1508 is a brake master cylinder designed for 1972 Ford LTD, 1972 Lincoln Continental, 1972 Mercury Colony Park, and 1972 Mercury Marquis vehicles equipped with front disc brakes. The cast iron construction and 0.938-inch bore support hydraulic brake system operation, while the integral reservoir and included cap provide the core components needed for master cylinder replacement. This part cross-references D2AZ2140A for the same application.
Common Problems This Part Can Address
- Low or inconsistent brake pedal response
- Internal hydraulic leakage in the master cylinder
- Brake fluid loss at the master cylinder assembly
- Reduced braking performance after master cylinder wear
- Brake system service needs on front disc brake vehicles
Installation Notes and Tips
Verify bore diameter, mounting hole spacing, and brake line connection points before installation. Bench bleed the master cylinder before final installation, then fill with DOT 3 brake fluid and bleed the brake system thoroughly to remove trapped air. Inspect the brake booster, lines, and wheel cylinders or calipers for wear or leaks during service.
Quality Assurance
MPA Electrical tests each unit against OE specifications using controlled processes and sample-based validation from its OE reference library to help ensure consistent braking performance out of the box.
| Brand | MPA Electrical |
|---|---|
| Part Number | NM1508 |
| Position | New with front disc brakes |
| Reservoir Material | Integral |
| Mounting Hardware Included | No |
| Grade Type | Standard replacement |
| Gasket Or Seal Included | No |
| Mounting Hole Quantity | 2 |
| Master Cylinder Bore Diameter | 0.938 |
| Brake Booster Included | No |
| Master Cylinder Cap Included | Yes |
| Master Cylinder Material | Cast iron |
| Push Rod Included | No |
| Reservoir Included | Yes |
| Sensor Included | No |
| Mounting Hole Diameter | 0.412 |
| Mounting Bracket Included | No |
| Brake Pressure Switch(s) Included | No |
| Fluid Type | Dot 3 |
| Product Condition | New |
This part fits 4 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1972 | Ford | LTD | N/A | New with front disc brakes |
| 1972 | Lincoln | Continental | N/A | New with front disc brakes |
| 1972 | Mercury | Colony Park | N/A | New with front disc brakes |
| 1972 | Mercury | Marquis | N/A | New with front disc brakes |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
