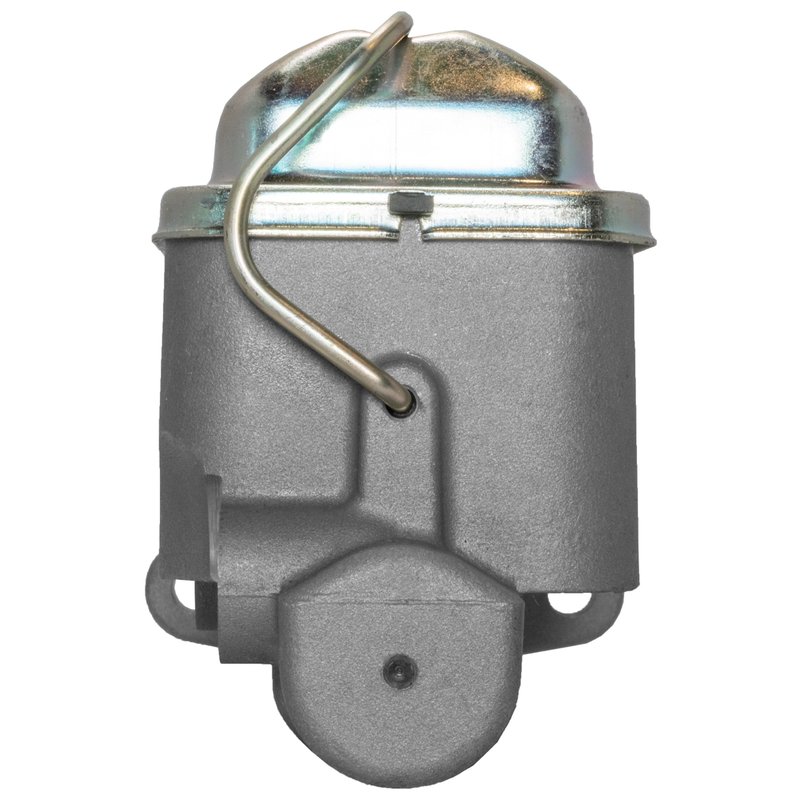

MPA Electrical NM1897 Brake Master Cylinder
| Brand | MPA Electrical NM1897 |
|---|---|
| Reservoir Material | Integral |
| Mounting Hardware Included | No |
| Grade Type | Standard replacement |
| Gasket Or Seal Included | No |
| Mounting Hole Quantity | 2 |
| Master Cylinder Bore Diameter | 1.125 |
| Brake Booster Included | No |
| Master Cylinder Cap Included | Yes |
| Master Cylinder Material | Cast iron |
| Push Rod Included | No |
| Reservoir Included | Yes |
| Sensor Included | No |
| Mounting Hole Diameter | 0.401 |
| Mounting Bracket Included | No |
| Brake Pressure Switch(s) Included | No |
| Fluid Type | Dot 3 |
| Product Condition | New |
| Product line | New with front disc brakes |
| Fits | Ford and Lincoln · 22 vehicles |
Standard replacement. Built for direct hydraulic brake service with OE-style fit and function.
Integral reservoir. Simplifies the master cylinder assembly with an integrated fluid reservoir.
Cast iron body. Provides a durable housing for consistent brake system operation.
Cross-references E25Y2140A for the same application. See all 1.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Brake Master Cylinder Overview
The MPA Electrical NM1897 is a standard replacement brake master cylinder built to restore hydraulic braking performance. It is a new unit with an integral reservoir, cast iron construction, and a 1.125-inch bore for applications that use front disc brakes.
Key Features
- Standard replacement brake master cylinder for hydraulic brake service
- Cast iron body with an integral reservoir
- 1.125-inch bore diameter for consistent pedal response
- Includes the master cylinder cap
- Uses DOT 3 brake fluid
Fitment Details
Fits 1984-1992 Lincoln Mark VII, New with front disc brakes. Fits 1982-1989 Lincoln Continental, New with front disc brakes. Fits 1974-1975 Lincoln Continental, New with front disc brakes. Fits 1984-1986 Ford Mustang, New with front disc brakes.
For buyers searching for a Lincoln Mark VII brake master cylinder, Lincoln Continental brake master cylinder, or Ford Mustang brake master cylinder, NM1897 matches the listed applications and front disc brake configuration.
What It Is Used For
- Restoring brake pedal feel when the original master cylinder is worn
- Addressing internal hydraulic leakage that reduces braking performance
- Replacing a damaged or corroded cast iron master cylinder
- Servicing vehicles that require a 1.125-inch bore and DOT 3 fluid
Installation Notes and Tips
Verify the brake system configuration before installation, including front disc brake application and bore size. This master cylinder does not include mounting hardware, a push rod, a brake booster, or seals, so confirm all related components are in serviceable condition before installation.
Quality Assurance
MPA Electrical tests each unit against OE specifications using proprietary processes and strict protocols to help ensure consistent braking performance out of the box. Part number NM1897 also cross-references E25Y2140A for the same application.
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 1992 | Lincoln | Mark VII | — | New with front disc brakes |
| 1991 | Lincoln | Mark VII | — | New with front disc brakes |
| 1990 | Lincoln | Mark VII | — | New with front disc brakes |
| 1989 | Lincoln | Continental | — | New with front disc brakes |
| 1989 | Lincoln | Mark VII | — | New with front disc brakes |
| 1988 | Lincoln | Continental | — | New with front disc brakes |
| 1988 | Lincoln | Mark VII | — | New with front disc brakes |
| 1987 | Lincoln | Continental | — | New with front disc brakes |
| 1987 | Lincoln | Mark VII | — | New with front disc brakes |
| 1986 | Ford | Mustang | SVO | New with front disc brakes |
| 1986 | Lincoln | Continental | — | New with front disc brakes |
| 1986 | Lincoln | Mark VII | — | New with front disc brakes |
| 1985 | Ford | Mustang | SVO | New with front disc brakes |
| 1985 | Lincoln | Continental | — | New with front disc brakes |
| 1985 | Lincoln | Mark VII | — | New with front disc brakes |
| 1984 | Ford | Mustang | SVO | New with front disc brakes |
| 1984 | Lincoln | Continental | — | New with front disc brakes |
| 1984 | Lincoln | Mark VII | — | New with front disc brakes |
| 1983 | Lincoln | Continental | — | New with front disc brakes |
| 1982 | Lincoln | Continental | — | New with front disc brakes |
| 1975 | Lincoln | Continental | — | New with front disc brakes |
| 1974 | Lincoln | Continental | — | New with front disc brakes |
