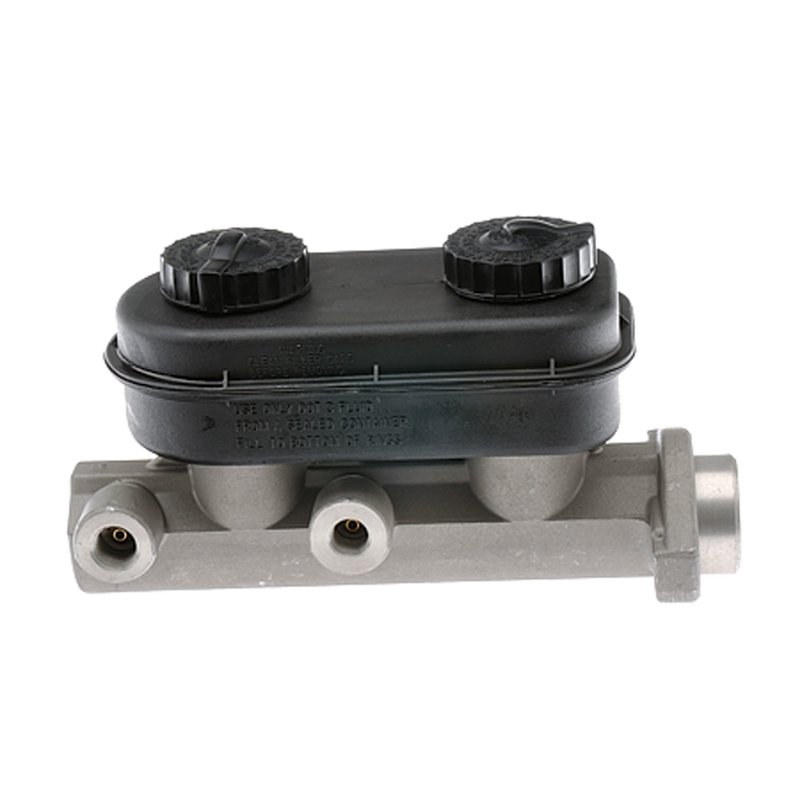

MPA Electrical NM2160 Brake Master Cylinder

Brake Master Cylinder for Dodge B-Series

Restore consistent brake pedal response with this MPA Electrical brake master cylinder, part number NM2160. It is a standard replacement master cylinder built with an aluminum body, integrated reservoir, and a 1.125-inch bore for Dodge B150, B250, B350, B1500, B2500, and B3500 models with front disc brakes.

MPA Electrical’s New with front disc brakes product line focuses on direct-fit hydraulic brake components for vehicles that need OE-style replacement parts. This NM2160 master cylinder is tested against OE specifications using controlled procedures to help deliver consistent braking performance after installation.

Key Features

• Brake master cylinder for front disc brake applications
• Standard replacement grade
• Aluminum master cylinder construction
• 1.125-inch bore diameter
• Reservoir included
• Uses DOT 3 brake fluid
• Two mounting holes with 0.338-inch mounting hole diameter
• Master cylinder cap included
• New condition

Detailed Description

Part number NM2160 is a brake master cylinder engineered for Dodge B-Series vans and trucks equipped with front disc brakes. It is compatible with 1990-1994 Dodge B150, B250, and B350, as well as 1995-1997 Dodge B1500, B2500, and B3500. This NM2160 master cylinder uses an aluminum housing, includes the reservoir, and is built as a standard replacement for hydraulic brake service.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Address

• Low or inconsistent brake pedal feel
• Internal hydraulic leakage in the master cylinder
• Brake fluid loss at the master cylinder assembly
• Reduced braking response in front disc brake systems
• Wear-related replacement needs on Dodge B150, B250, B350, B1500, B2500, and B3500 models

Installation Notes and Tips

Verify the vehicle is equipped with front disc brakes before ordering. Confirm the 1.125-inch bore, two-mount-hole design, and reservoir configuration match the original unit. This master cylinder does not include mounting hardware, push rod, brake booster, seals, or brake pressure switches. Use DOT 3 brake fluid and bleed the hydraulic system thoroughly after installation.

Quality Assurance

MPA Electrical tests each brake master cylinder against OE specifications using proprietary processes and strict protocols to help ensure consistent braking performance out of the box. Part number NM2160 is a new, standard replacement hydraulic brake component for direct service on the listed Dodge applications.
