OE Quality
60-Day Returns

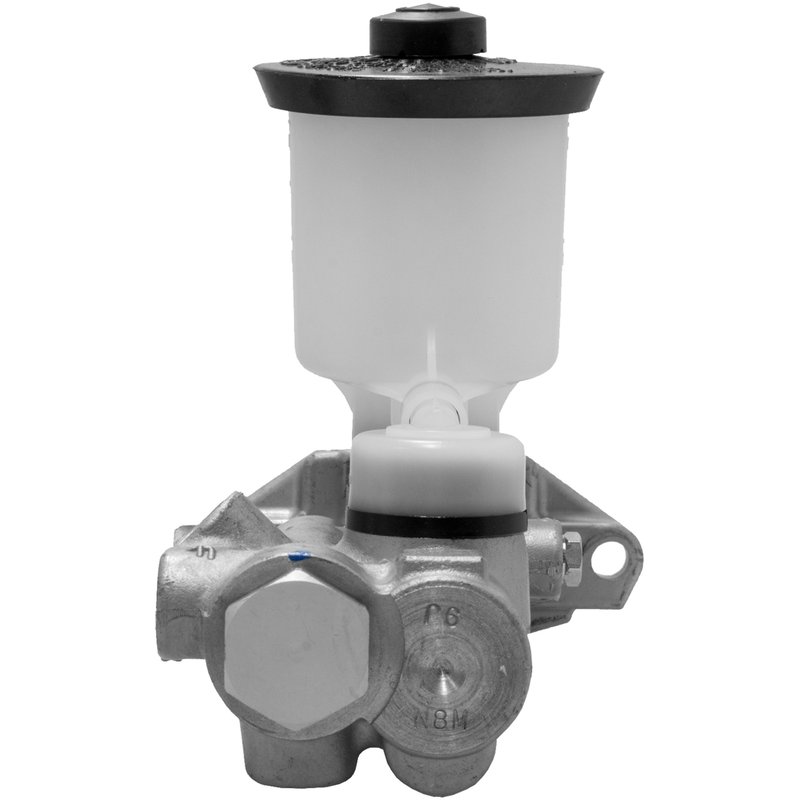

MPA Electrical NM2188 Brake Master Cylinder
Brake Master Cylinder for Corvette
Restore hydraulic braking response with this new brake master cylinder from MPA Electrical. Built as a standard replacement for 1986-1987 Chevrolet Corvette models with front disc brakes, Part Number NM2188 is engineered to match OE specifications for consistent pedal feel and dependable brake pressure.
Key Features
- Brand: MPA Electrical
- Part Number: NM2188
- Brake master cylinder with reservoir included
- 0.875 in. bore diameter
- Aluminum master cylinder construction
- Standard replacement grade
- Uses DOT 3 brake fluid
- Master cylinder cap included
- Two mounting holes with 0.355 in. mounting hole diameter
- New condition
Product Details
MPA Electrical NM2188 is a brake master cylinder for 1986-1987 Chevrolet Corvette applications with front disc brakes. It is built from aluminum and supplied with a reservoir and cap, while omitting mounting hardware, push rod, brake booster, sensor, and brake pressure switch components. The 0.875-inch bore size supports proper hydraulic output for the original braking system layout. This part cross-references 10052280 for the same application.
MPA Electrical uses OE sample data and testing protocols to verify each unit against original specifications before release. That process helps ensure the master cylinder is ready for installation and brake system service on the Chevrolet Corvette platform.
Common Problems This Part Can Address
- Low or inconsistent brake pedal response
- Internal master cylinder leakage
- Brake fluid loss at the hydraulic unit
- Reduced braking performance from worn seals or bore wear
- Pedal travel changes caused by a failing master cylinder
Installation Notes and Tips
Before installation, confirm the vehicle is a 1986-1987 Chevrolet Corvette with front disc brakes and verify the bore size, mounting hole layout, and reservoir configuration. Flush the brake system with fresh DOT 3 fluid, bleed the hydraulic system thoroughly, and inspect brake lines, fittings, and the booster interface for wear or contamination. Because mounting hardware is not included, reuse or source the required fasteners separately as needed.
Quality Assurance
MPA Electrical tests each brake master cylinder against OE specifications using controlled procedures and reference samples from its OE library. That manufacturing approach supports consistent hydraulic performance for the Corvette braking system. Part Number NM2188 is a new standard replacement master cylinder for direct service use.
| Brand | MPA Electrical |
|---|---|
| Part Number | NM2188 |
| Position | New with front disc brakes |
| Mounting Hardware Included | No |
| Grade Type | Standard replacement |
| Gasket Or Seal Included | No |
| Mounting Hole Quantity | 2 |
| Master Cylinder Bore Diameter | 0.875 |
| Brake Booster Included | No |
| Master Cylinder Cap Included | Yes |
| Master Cylinder Material | Aluminum |
| Push Rod Included | No |
| Reservoir Included | Yes |
| Sensor Included | No |
| Mounting Hole Diameter | 0.355 |
| Mounting Bracket Included | No |
| Brake Pressure Switch(s) Included | No |
| Fluid Type | Dot 3 |
| Product Condition | New |
This part fits 2 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1987 | Chevrolet | Corvette | N/A | New with front disc brakes |
| 1986 | Chevrolet | Corvette | N/A | New with front disc brakes |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
