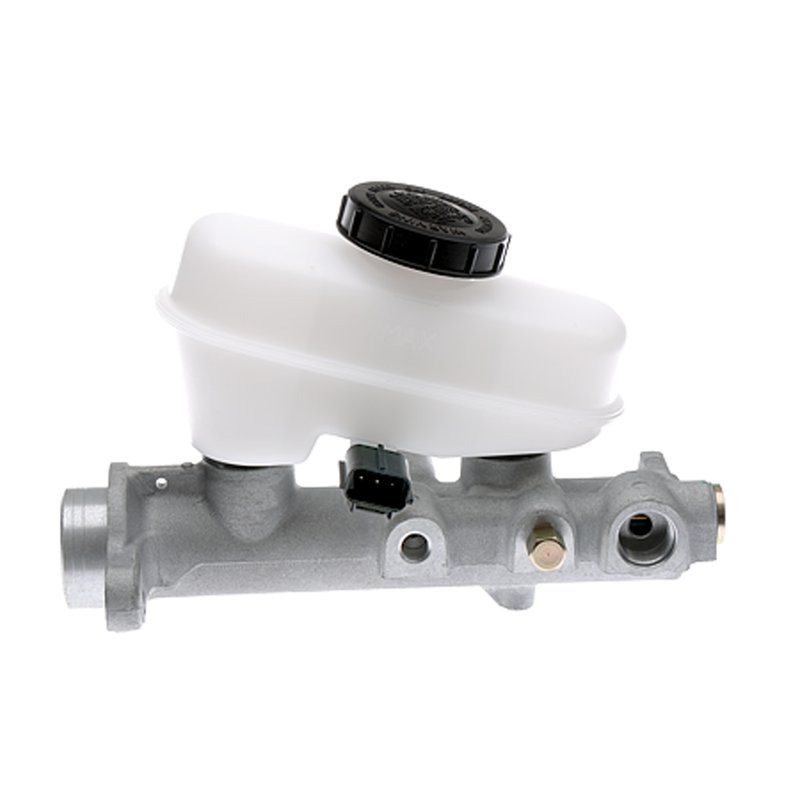

MPA Electrical NM3065 Brake Master Cylinder
| Brand | MPA Electrical NM3065 |
|---|---|
| Mounting Hardware Included | No |
| Grade Type | Standard replacement |
| Gasket Or Seal Included | No |
| Mounting Hole Quantity | 2 |
| Master Cylinder Bore Diameter | 1 |
| Brake Booster Included | No |
| Master Cylinder Cap Included | Yes |
| Master Cylinder Material | Aluminum |
| Push Rod Included | No |
| Reservoir Included | Yes |
| Sensor Included | No |
| Mounting Hole Diameter | 0.42 |
| Mounting Bracket Included | No |
| Brake Pressure Switch(s) Included | No |
| Fluid Type | Dot 3 |
| Product Condition | New |
| Product line | New with front disc brakes |
| Fits | Ford, Lincoln, and Mercury · 9 vehicles |
OE-spec testing. Built from OE sample data and verified through strict inspection protocols.
Aluminum construction. Lightweight body with a 1-inch bore for stable hydraulic response.
Reservoir included. New standard replacement master cylinder with cap included.
Cross-references F8AZ2140AA for the same application. See all 1.
Brake Master Cylinder Overview
The MPA Electrical NM3065 brake master cylinder is a standard replacement built to restore braking performance with OE-based testing and specification checks. It is a new aluminum unit with an integrated reservoir and a 1-inch bore for consistent hydraulic response.
Compatible With 1998-2000 Ford Crown Victoria, 1998-2000 Lincoln Town Car, and 1998-2000 Mercury Grand Marquis with front disc brakes.
Key Features
- Standard replacement brake master cylinder for hydraulic brake service
- Aluminum construction with a 1-inch bore diameter
- Reservoir included; master cylinder cap included
- Uses DOT 3 brake fluid
- Tested against OE specifications using proprietary processes
Detailed Description
MPA Electrical NM3065 is engineered as a direct-style brake master cylinder replacement for select Ford, Lincoln, and Mercury full-size sedans equipped with front disc brakes. The aluminum body helps keep weight down, while the 1-inch bore supports the hydraulic volume needed for stable pedal feel and brake system operation. This part number, NM3065, is built from new components and verified through OE sample-based testing to meet specification targets before it leaves the factory.
This part cross-references Ford F8AZ2140AA for the same application.
What It Helps Address
- Low or inconsistent brake pedal response
- Internal master cylinder leakage
- Brake fluid loss at the master cylinder
- Brake warning symptoms tied to hydraulic pressure loss
- Reduced braking performance from a worn hydraulic unit
Installation Notes
Confirm reservoir, bore size, and mounting-hole layout before installation. This NM3065 master cylinder does not include mounting hardware, a push rod, or a brake booster. Use DOT 3 brake fluid and bleed the brake system thoroughly after installation.
Quality Assurance
MPA Electrical tests each unit against OE specifications using proprietary procedures and strict inspection protocols. That process helps ensure the NM3065 arrives ready for consistent braking performance.
| Year | Make | Model | Notes |
|---|---|---|---|
| 2000 | Ford | Crown Victoria | New with front disc brakes |
| 2000 | Lincoln | Town Car | New with front disc brakes |
| 2000 | Mercury | Grand Marquis | New with front disc brakes |
| 1999 | Ford | Crown Victoria | New with front disc brakes |
| 1999 | Lincoln | Town Car | New with front disc brakes |
| 1999 | Mercury | Grand Marquis | New with front disc brakes |
| 1998 | Ford | Crown Victoria | New with front disc brakes |
| 1998 | Lincoln | Town Car | New with front disc brakes |
| 1998 | Mercury | Grand Marquis | New with front disc brakes |
