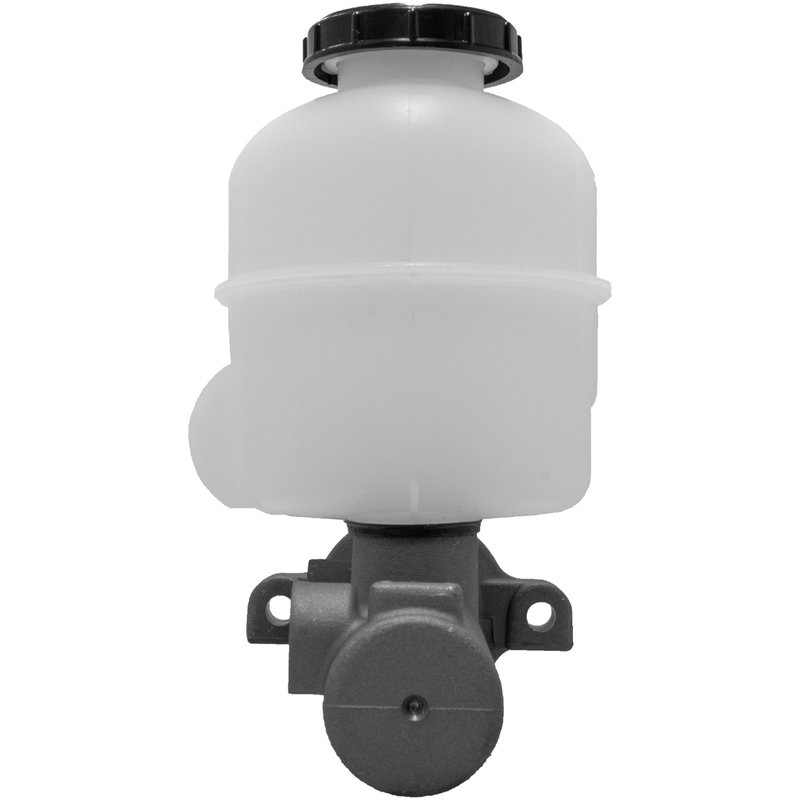

MPA Electrical NM4148 Brake Master Cylinder

Brake Master Cylinder for Ford F-150 and Mark LT

Restore consistent brake pedal response with this new brake master cylinder from MPA Electrical. Built as a standard replacement for front disc brake applications, it is engineered to match OE specifications for dependable hydraulic performance on the road.

Fits 2004-2008 Ford F-150, N/A. Fits 2006-2008 Lincoln Mark LT, N/A. Part number NM4148 is a direct-fit option for drivers replacing a worn or leaking master cylinder on these trucks.

Key Features

• Standard replacement brake master cylinder
• 1.125 in. bore diameter for hydraulic brake operation
• Aluminum master cylinder body with plastic reservoir
• Reservoir, cap, and gasket/seal included
• Uses DOT 3 brake fluid
• Two mounting holes with 0.356 in. mounting hole diameter
• New condition for front disc brake applications

Product Details

MPA Electrical NM4148 is a brake master cylinder designed to restore braking performance by maintaining proper hydraulic pressure in the brake system. The unit is tested against OE specifications using proprietary processes and controlled protocols, helping ensure consistent operation out of the box. This master cylinder is built with an aluminum housing, plastic reservoir, and a 1.125-inch bore diameter for the listed Ford and Lincoln applications. NM4148 also cross-references 4L3Z2140AA and 6L3Z2140A for the same application.

The MPA Electrical New with front disc brakes product line focuses on replacement hydraulic brake components for vehicles that need OE-style fit and function. For owners of a Ford F-150 or Lincoln Mark LT, this line provides a practical option when replacing a failing master cylinder in front disc brake setups.

Common Problems This Part Can Help Solve

• Low or sinking brake pedal feel
• Brake fluid leakage at the master cylinder
• Uneven or inconsistent hydraulic pressure
• Delayed brake response during normal driving
• Brake warning symptoms caused by internal seal wear

Installation Notes and Tips

Before installation, verify the bore size, mounting pattern, and brake fluid type match the vehicle requirements. Bench bleeding the master cylinder before installation helps remove trapped air and supports proper pedal feel after the system is reassembled. Inspect the brake lines, booster interface, and reservoir connections for wear or contamination before filling with DOT 3 fluid.

Quality Assurance

MPA Electrical tests each master cylinder against OE specifications using proprietary procedures and strict inspection protocols to support consistent braking performance. This new replacement part is built to restore hydraulic function for the listed Ford F-150 and Lincoln Mark LT applications.
