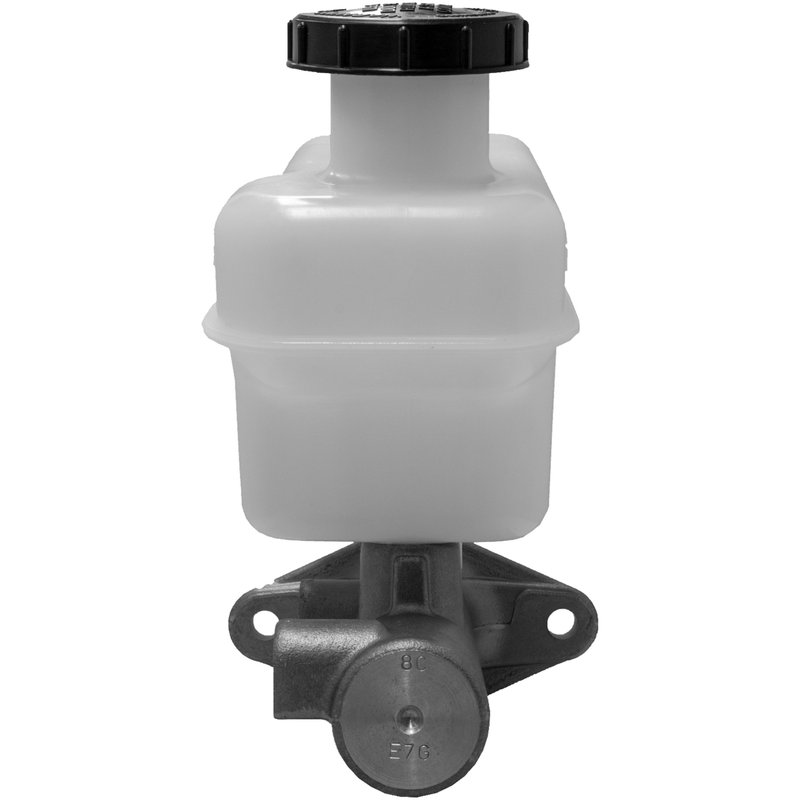

MPA Electrical NM4174 Brake Master Cylinder
Brake Master Cylinder for Ford Escape and Mercury Mariner
Restore hydraulic braking performance with this MPA Electrical brake master cylinder, part number NM4174. It is a standard replacement master cylinder built for 2009-2012 Ford Escape and 2009-2011 Mercury Mariner models with front disc brakes.
MPA Electrical NM4174 is engineered from OE sample data and verified against OE specifications to deliver consistent brake pedal response and dependable fluid pressure right out of the box.
Key Features
- Brake master cylinder for Ford Escape and Mercury Mariner applications
- Standard replacement grade for direct hydraulic system service
- Aluminum master cylinder body with plastic reservoir
- 1.0625 in. bore diameter for proper brake system pressure
- Reservoir included with cap and gasket/seal included
- Uses DOT 3 brake fluid
- Two mounting holes with 0.362 in. mounting hole diameter
- New condition, front disc brake application
Detailed Description
MPA Electrical NM4174 is a brake master cylinder designed for 2009-2012 Ford Escape and 2009-2011 Mercury Mariner vehicles equipped with front disc brakes. The aluminum housing, plastic reservoir, and 1.0625-inch bore diameter support proper hydraulic pressure for the brake system, while the included reservoir cap and seal help complete the assembly. This part cross-references Ford OE number 9M6Z-2140 A for the same application.
As a brake hydraulics component, this master cylinder is used to convert pedal force into hydraulic pressure for the front and rear brake circuits. For shoppers searching for a 2009 Ford Escape brake master cylinder, 2010 Mercury Mariner master cylinder, or 2012 Ford Escape brake master cylinder, NM4174 provides a direct-fit replacement option for the listed vehicles.
What It Helps Fix
- Low or inconsistent brake pedal feel
- Internal master cylinder fluid bypass
- Brake fluid leaks at the master cylinder body or reservoir area
- Loss of hydraulic pressure in the brake system
- Brake warning concerns related to master cylinder wear
Installation Notes and Tips
Confirm vehicle fitment by year, make, model, and front disc brake configuration before installation. Bench bleed the master cylinder before connecting brake lines, then bleed the full brake system after installation to remove trapped air. Use only DOT 3 brake fluid and inspect the brake booster, lines, and fittings for wear or leakage during service. Mounting hardware, brake booster, push rod, and brake pressure switch are not included.
Quality Assurance
MPA Electrical tests each master cylinder against OE specifications using controlled processes and an OE sample library to help ensure consistent braking performance after installation. NM4174 is a new standard replacement brake master cylinder built for dependable hydraulic operation in the listed Ford Escape and Mercury Mariner applications.
| Brand | MPA Electrical |
|---|---|
| Part Number | NM4174 |
| Position | New with front disc brakes |
| Reservoir Material | Plastic |
| Mounting Hardware Included | No |
| Grade Type | Standard replacement |
| Gasket Or Seal Included | Yes |
| Mounting Hole Quantity | 2 |
| Master Cylinder Bore Diameter | 1.0625 |
| Brake Booster Included | No |
| Master Cylinder Cap Included | Yes |
| Master Cylinder Material | Aluminum |
| Push Rod Included | No |
| Reservoir Included | Yes |
| Sensor Included | No |
| Mounting Hole Diameter | 0.362 |
| Mounting Bracket Included | No |
| Brake Pressure Switch(s) Included | No |
| Fluid Type | Dot 3 |
| Product Condition | New |
This part fits 7 vehicles. Search below:
| Year | Make | Model | Fuel Type | Position | Notes |
|---|---|---|---|---|---|
| 2012 | Ford | Escape | FULL HYBRID EV-GAS (FHEV) | N/A | New with front disc brakes |
| 2011 | Ford | Escape | FULL HYBRID EV-GAS (FHEV) | N/A | New with front disc brakes |
| 2011 | Mercury | Mariner | FULL HYBRID EV-GAS (FHEV) | N/A | New with front disc brakes |
| 2010 | Ford | Escape | FULL HYBRID EV-GAS (FHEV) | N/A | New with front disc brakes |
| 2010 | Mercury | Mariner | FULL HYBRID EV-GAS (FHEV) | N/A | New with front disc brakes |
| 2009 | Ford | Escape | FULL HYBRID EV-GAS (FHEV) | N/A | New with front disc brakes |
| 2009 | Mercury | Mariner | FULL HYBRID EV-GAS (FHEV) | N/A | New with front disc brakes |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
