OE Quality
60-Day Returns

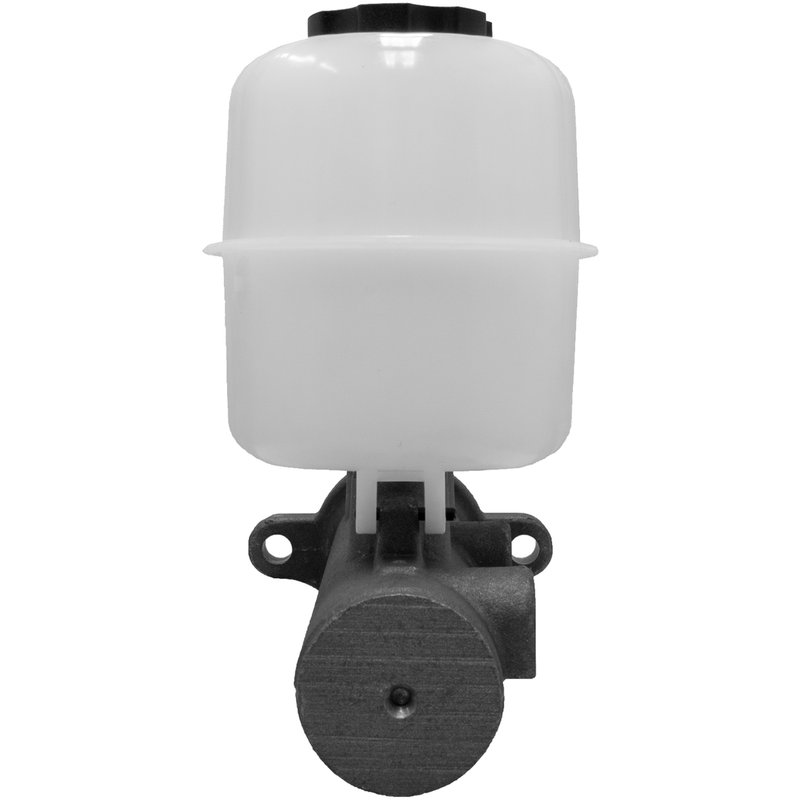

MPA Electrical NM4180 Brake Master Cylinder
Brake Master Cylinder for Silverado and Sierra HD
Restore consistent brake pedal response with this new brake master cylinder from MPA Electrical. Built for 2007-2008 Chevrolet Silverado 2500 HD, Silverado 3500 HD, GMC Sierra 2500 HD, and Sierra 3500 HD models with front disc brakes, part number NM4180 is a standard replacement for hydraulic brake service.
Key Features
- Brand: MPA Electrical
- Part number: NM4180
- Brake master cylinder for brake hydraulic repair
- New with front disc brakes application
- Aluminum master cylinder body with plastic reservoir
- Reservoir included with cap included
- 1.456 in. master cylinder bore diameter
- Uses DOT 3 brake fluid
- 2 mounting holes with 0.427 in. mounting hole diameter
- Standard replacement grade
Product Details
MPA Electrical NM4180 is a brake master cylinder engineered to restore braking performance by delivering hydraulic pressure to the brake system. The aluminum construction, integrated plastic reservoir, and OE-based testing process support consistent operation for Silverado 2500 HD, Silverado 3500 HD, Sierra 2500 HD, and Sierra 3500 HD trucks equipped with front disc brakes. This part cross-references GM 15775174 for the same application.
Common Brake Issues It Can Address
- Low or inconsistent brake pedal feel
- Internal hydraulic leakage in the master cylinder
- Brake fluid loss at the reservoir or cylinder body
- Reduced braking response during normal driving or towing
- Brake system performance concerns on front disc brake trucks
Installation Notes and Tips
Before installation, verify vehicle fitment by year, make, model, and brake configuration. This master cylinder does not include mounting hardware, a brake booster, push rod, gasket or seal, sensor, or brake pressure switch. Bench bleeding the master cylinder before installation helps remove trapped air and supports proper pedal feel after the system is filled with DOT 3 fluid.
Quality Assurance
MPA Electrical tests each unit against OE specifications using controlled procedures and an OE sample library to help ensure consistent braking performance out of the box. Part number NM4180 is a new standard replacement brake master cylinder for service on the listed Chevrolet and GMC HD trucks.
| Brand | MPA Electrical |
|---|---|
| Part Number | NM4180 |
| Position | New with front disc brakes |
| Reservoir Material | Plastic |
| Mounting Hardware Included | No |
| Grade Type | Standard replacement |
| Gasket Or Seal Included | No |
| Mounting Hole Quantity | 2 |
| Master Cylinder Bore Diameter | 1.456 |
| Brake Booster Included | No |
| Master Cylinder Cap Included | Yes |
| Master Cylinder Material | Aluminum |
| Push Rod Included | No |
| Reservoir Included | Yes |
| Sensor Included | No |
| Mounting Hole Diameter | 0.427 |
| Mounting Bracket Included | No |
| Brake Pressure Switch(s) Included | No |
| Fluid Type | Dot 3 |
| Product Condition | New |
This part fits 8 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2008 | Chevrolet | Silverado 2500 HD | N/A | New with front disc brakes |
| 2008 | Chevrolet | Silverado 3500 HD | N/A | New with front disc brakes |
| 2008 | GMC | Sierra 2500 HD | N/A | New with front disc brakes |
| 2008 | GMC | Sierra 3500 HD | N/A | New with front disc brakes |
| 2007 | Chevrolet | Silverado 2500 HD | N/A | New with front disc brakes |
| 2007 | Chevrolet | Silverado 3500 HD | N/A | New with front disc brakes |
| 2007 | GMC | Sierra 2500 HD | N/A | New with front disc brakes |
| 2007 | GMC | Sierra 3500 HD | N/A | New with front disc brakes |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
