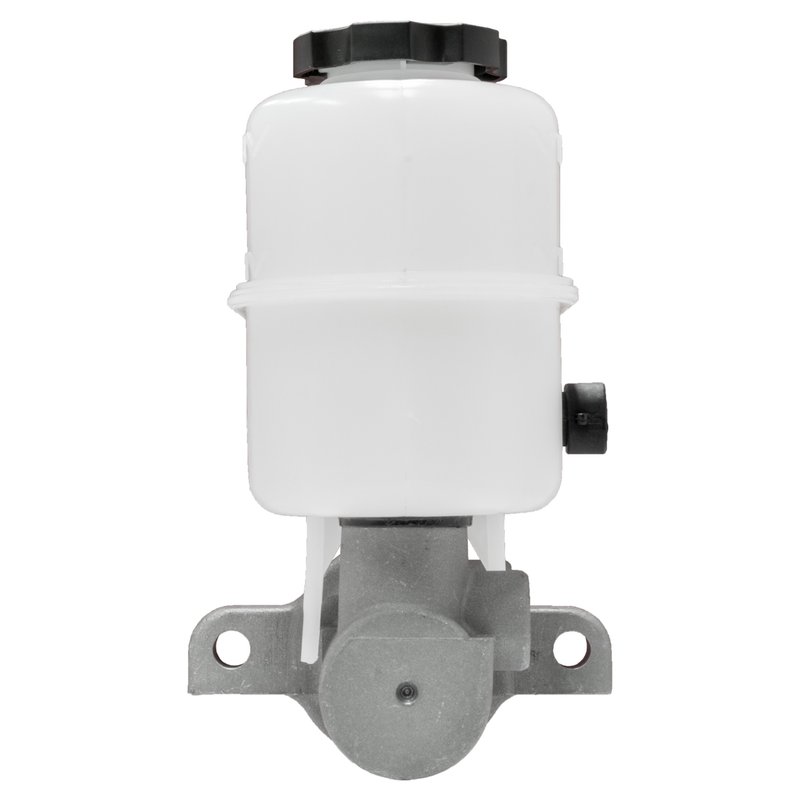

MPA Electrical NM4194 Brake Master Cylinder
Brake Master Cylinder for GM Trucks and SUVs
The MPA Electrical NM4194 brake master cylinder is a standard replacement part for front disc brake applications on select 2007-2008 Cadillac, Chevrolet, and GMC vehicles. Built with an aluminum body, plastic reservoir, and DOT 3 fluid compatibility, it is engineered to restore consistent hydraulic brake performance.
Key Features
- Part number NM4194
- Standard replacement brake master cylinder
- 1.25 in. bore diameter
- Aluminum master cylinder construction
- Plastic reservoir with cap included
- Gasket or seal included
- DOT 3 brake fluid type
- Two mounting holes with 0.430 in. mounting hole diameter
- No brake booster, push rod, sensor, or pressure switch included
Product Details
MPA Electrical NM4194 is built for vehicles equipped with front disc brakes and is listed for 2007-2008 Cadillac Escalade, Escalade ESV, and Escalade EXT; Chevrolet Avalanche, Cheyenne, Silverado 1500, Suburban 1500, and Tahoe; and GMC Sierra 1500, Yukon, and Yukon XL 1500. The master cylinder uses a 1.25-inch bore to support hydraulic brake pressure, while the aluminum housing and plastic reservoir provide a direct replacement format for service work. This part cross-references OE numbers 1943294 and 15821794 for the same application.
What It Helps Fix
- Low or inconsistent brake pedal response
- Internal hydraulic leakage in the master cylinder
- Brake fluid loss at the reservoir or seals
- Soft pedal feel caused by worn master cylinder components
- Brake performance decline on front disc brake systems
Installation Notes and Tips
Verify vehicle fitment by year, make, model, and brake configuration before installation. This NM4194 master cylinder is supplied without mounting hardware, brake booster, push rod, sensor, or brake pressure switch. Bench bleeding the master cylinder before installation and using fresh DOT 3 brake fluid helps reduce trapped air in the hydraulic system.
Quality Assurance
MPA Electrical tests each brake master cylinder against OE specifications using controlled procedures and sample-based validation to support consistent braking performance out of the box.
| Brand | MPA Electrical |
|---|---|
| Part Number | NM4194 |
| Position | New with front disc brakes |
| Reservoir Material | Plastic |
| Mounting Hardware Included | No |
| Grade Type | Standard replacement |
| Gasket Or Seal Included | Yes |
| Mounting Hole Quantity | 2 |
| Master Cylinder Bore Diameter | 1.25 |
| Brake Booster Included | No |
| Master Cylinder Cap Included | Yes |
| Master Cylinder Material | Aluminum |
| Push Rod Included | No |
| Reservoir Included | Yes |
| Sensor Included | No |
| Mounting Hole Diameter | 0.430 |
| Mounting Bracket Included | No |
| Brake Pressure Switch(s) Included | No |
| Fluid Type | Dot 3 |
| Product Condition | New |
This part fits 22 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2008 | Cadillac | Escalade | N/A | New with front disc brakes | |||
| 2008 | Cadillac | Escalade ESV | N/A | New with front disc brakes | |||
| 2008 | Cadillac | Escalade EXT | N/A | New with front disc brakes | |||
| 2008 | Chevrolet | Avalanche | N/A | New with front disc brakes | |||
| 2008 | Chevrolet | Cheyenne | N/A | New with front disc brakes | |||
| 2008 | Chevrolet | Silverado 1500 | N/A | New with front disc brakes | |||
| 2008 | Chevrolet | Suburban 1500 | N/A | New with front disc brakes | |||
| 2008 | Chevrolet | Tahoe | GAS | N/A | New with front disc brakes | ||
| 2008 | GMC | Sierra 1500 | N/A | New with front disc brakes | |||
| 2008 | GMC | Yukon | 6.2L | V8 | N/A | New with front disc brakes | |
| 2008 | GMC | Yukon XL 1500 | N/A | New with front disc brakes | |||
| 2007 | Cadillac | Escalade | N/A | New with front disc brakes | |||
| 2007 | Cadillac | Escalade ESV | N/A | New with front disc brakes | |||
| 2007 | Cadillac | Escalade EXT | N/A | New with front disc brakes | |||
| 2007 | Chevrolet | Avalanche | N/A | New with front disc brakes | |||
| 2007 | Chevrolet | Cheyenne | N/A | New with front disc brakes | |||
| 2007 | Chevrolet | Silverado 1500 | N/A | New with front disc brakes | |||
| 2007 | Chevrolet | Suburban 1500 | N/A | New with front disc brakes | |||
| 2007 | Chevrolet | Tahoe | N/A | New with front disc brakes | |||
| 2007 | GMC | Sierra 1500 | N/A | New with front disc brakes | |||
| 2007 | GMC | Yukon | N/A | New with front disc brakes | |||
| 2007 | GMC | Yukon XL 1500 | N/A | New with front disc brakes |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
