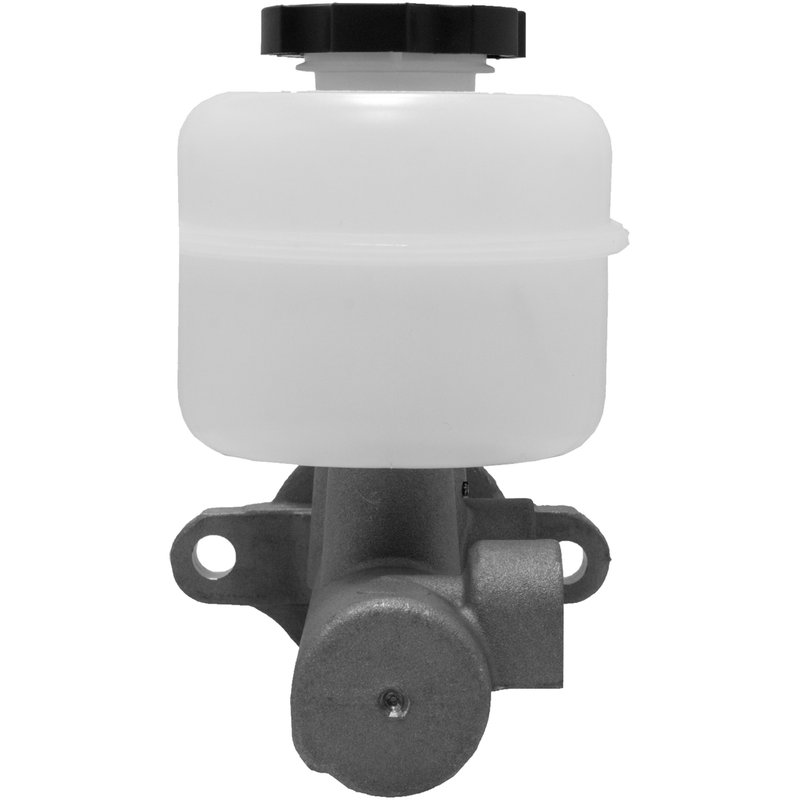

MPA Electrical NM4210 Brake Master Cylinder

Brake Master Cylinder for Corvette and XLR

Restore consistent brake pedal response with this new brake master cylinder from MPA Electrical. Built as a standard replacement with a 1-inch bore, aluminum body, plastic reservoir, and DOT 3 fluid compatibility, it is engineered for direct brake hydraulic service on select Cadillac and Chevrolet applications.

Compatible with 2004-2008 Cadillac XLR and 2005-2008 Chevrolet Corvette, this MPA Electrical NM4210 brake master cylinder is a practical OE-style replacement for vehicles with front disc brakes. The unit includes the reservoir and master cylinder cap, and it is tested against OE specifications using controlled validation processes for consistent performance out of the box.

Key Features

• Brake master cylinder for brake hydraulic repair
• 1-inch bore diameter for the specified application
• Aluminum master cylinder body with plastic reservoir
• Reservoir included; master cylinder cap included
• Standard replacement grade
• Uses DOT 3 brake fluid
• New condition
• MPA Electrical NM4210

Detailed Description

The MPA Electrical NM4210 is a brake master cylinder designed for vehicles equipped with front disc brakes, including the 2004-2008 Cadillac XLR and 2005-2008 Chevrolet Corvette. It is built with a 2-hole mounting pattern, a 1-inch bore, and an aluminum master cylinder housing paired with a plastic reservoir for service replacement in the brake hydraulic system. The reservoir and cap are included, while mounting hardware, push rod, brake booster, seals, and pressure switch are not included.

MPA Electrical uses OE sample data and testing protocols to verify dimensional and functional consistency against original specifications. This helps support proper pedal feel and hydraulic pressure delivery after replacement. This part cross-references 18060779 and 19209259 for the same application. The NM4210 is a direct-fit option for drivers searching for a brake master cylinder for 2005-2008 Chevrolet Corvette or 2004-2008 Cadillac XLR front disc brake service.

What This Part Helps Address

• Low or inconsistent brake pedal feel
• Internal master cylinder leakage
• Brake fluid loss at the master cylinder
• Reduced hydraulic pressure in the brake system
• Brake warning concerns related to master cylinder wear

Installation Notes and Tips

Before installation, confirm the vehicle uses front disc brakes and verify the 2-hole mounting pattern, 1-inch bore, and mounting hole diameter of 0.420 inch. Bench bleeding the master cylinder before final installation helps remove trapped air from the hydraulic circuit and supports proper pedal response. Use DOT 3 brake fluid only, and inspect the brake lines, booster interface, and reservoir connections during service.

Quality Assurance

MPA Electrical manufactures this brake master cylinder using OE reference data and controlled testing procedures to meet original equipment specifications for the listed Cadillac and Chevrolet applications. The NM4210 is a new standard replacement part built for consistent brake hydraulic performance.
