OE Quality
60-Day Returns

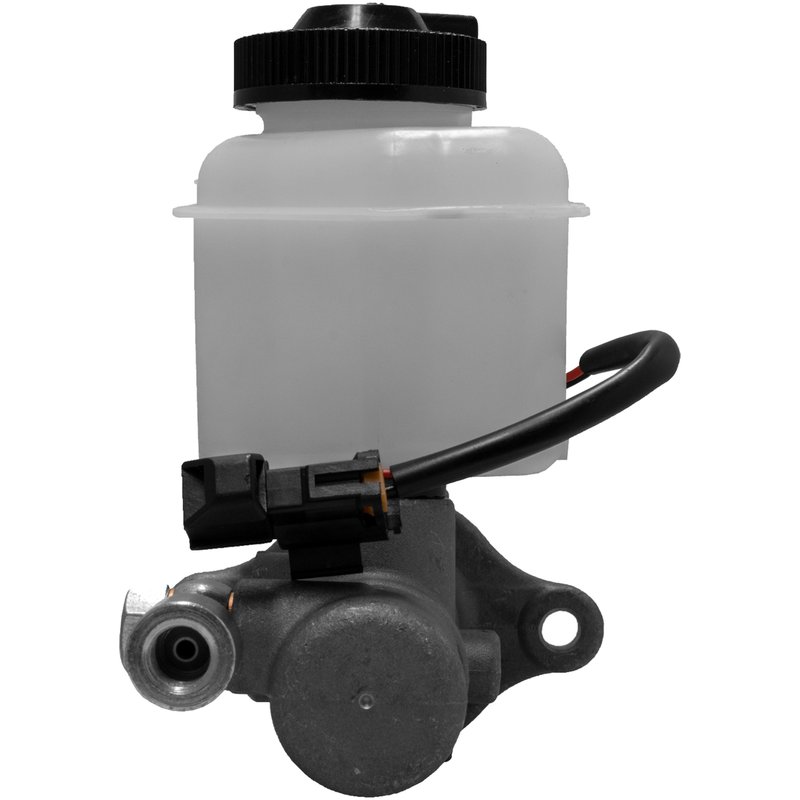

MPA Electrical NM4253 Brake Master Cylinder
Brake Master Cylinder for Kia Spectra
Restore hydraulic braking response with this MPA Electrical brake master cylinder, part number NM4253. It is a standard replacement for 2002-2004 Kia Spectra models with front disc brakes and is built to match OE specifications for consistent pedal feel and braking performance.
Key Features
- Fits 2002-2004 Kia Spectra, front disc brakes
- Brake master cylinder with 0.935 bore diameter
- Aluminum body with plastic reservoir
- Reservoir, cap, and gasket/seal included
- Uses DOT 3 or DOT 4 brake fluid
- Two mounting holes with 0.330 mounting hole diameter
- Standard replacement grade for direct service use
- MPA Electrical NM4253
Product Details
MPA Electrical NM4253 is engineered as a brake master cylinder replacement for Kia Spectra applications with front disc brakes. The aluminum housing and integrated plastic reservoir support dependable hydraulic operation, while the included cap and seal help simplify service preparation. This unit is tested against OE specifications using controlled validation processes to help ensure proper braking performance after installation. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Problems This Part Can Address
- Low or inconsistent brake pedal response
- Internal master cylinder leakage
- Brake fluid loss at the reservoir or seals
- Soft pedal feel caused by hydraulic wear
- Reduced braking performance on Kia Spectra models
Installation Notes and Tips
Verify the vehicle is a 2002-2004 Kia Spectra with front disc brakes before ordering. Bench bleed the master cylinder before installation, then bleed the brake system thoroughly after mounting. Mounting hardware, brake booster, push rod, sensor, and brake pressure switch are not included, so reuse or source those components as needed. Use only DOT 3 or DOT 4 brake fluid and confirm all line connections are clean and properly tightened.
Quality Assurance
MPA Electrical validates each brake master cylinder against OE specifications using proprietary testing and strict inspection protocols to support consistent performance out of the box. NM4253 is a new standard replacement part built for direct brake system service.
| Brand | MPA Electrical |
|---|---|
| Part Number | NM4253 |
| Position | New with front disc brakes |
| Reservoir Material | Plastic |
| Mounting Hardware Included | No |
| Grade Type | Standard replacement |
| Gasket Or Seal Included | Yes |
| Mounting Hole Quantity | 2 |
| Master Cylinder Bore Diameter | 0.935 |
| Brake Booster Included | No |
| Master Cylinder Cap Included | Yes |
| Master Cylinder Material | Aluminum |
| Push Rod Included | No |
| Reservoir Included | Yes |
| Sensor Included | No |
| Mounting Hole Diameter | 0.330 |
| Mounting Bracket Included | No |
| Brake Pressure Switch(s) Included | No |
| Fluid Type | Dot 3 or dot 4 |
| Product Condition | New |
This part fits 3 vehicles. Search below:
| Year | Make | Model | Body Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2004 | Kia | Spectra | Sedan | Automatic | 1.8L | L4 | N/A | New with front disc brakes |
| 2003 | Kia | Spectra | Sedan | Automatic | N/A | New with front disc brakes | ||
| 2002 | Kia | Spectra | Sedan | Automatic | N/A | New with front disc brakes |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
