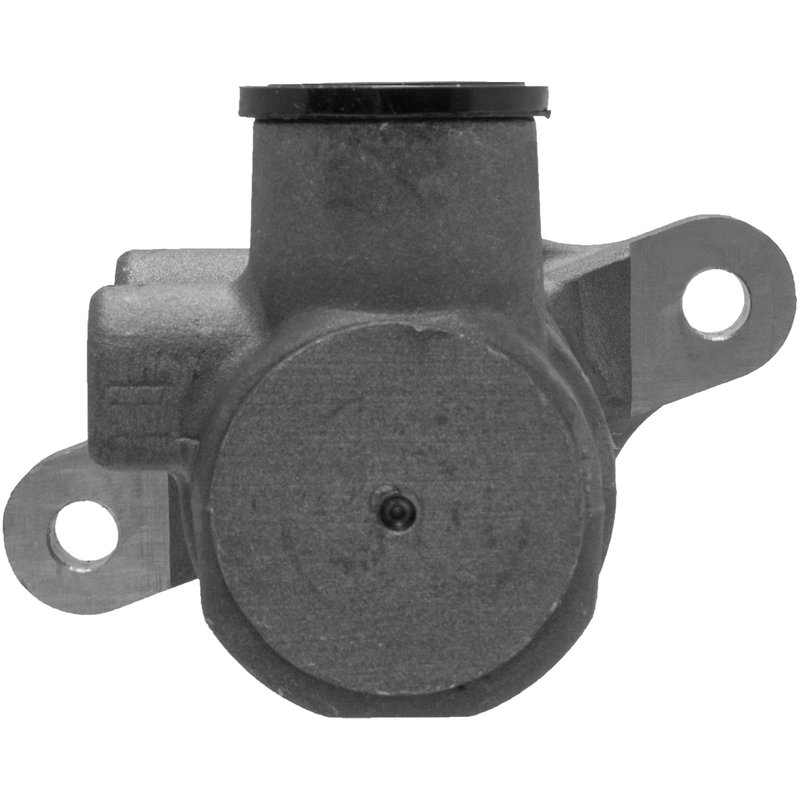

MPA Electrical NM4308 Brake Master Cylinder
Brake Master Cylinder for Ford F-150
Restore consistent brake pedal response with this MPA Electrical brake master cylinder for the 2015-2017 Ford F-150 with front disc brakes. Built as a standard replacement, NM4308 is engineered to match OE specifications for dependable hydraulic performance right out of the box.
The aluminum master cylinder body, 1.252-inch bore diameter, and included gasket or seal support a direct hydraulic replacement for the Ford F-150 brake system. This NM4308 master cylinder cross-references Ford FL3Z-2140-B for the same application.
Key Features
- Fits 2015-2017 Ford F-150, front disc brakes
- Standard replacement brake master cylinder
- Aluminum construction for OE-style fit and function
- 1.252-inch master cylinder bore diameter
- Gasket or seal included
- 2 mounting holes with 0.354-inch mounting hole diameter
- New product condition
- MPA Electrical NM4308 part number
Detailed Description
MPA Electrical NM4308 is a brake master cylinder for Ford F-150 trucks equipped with front disc brakes from 2015 through 2017. It is built from aluminum and tested against OE specifications using controlled inspection processes and sample-based validation to help deliver consistent braking performance after installation. The design follows a standard replacement format for service work where the original hydraulic master cylinder has worn, leaked, or lost pedal firmness. The NM4308 part number is also referenced as Ford FL3Z-2140-B for the same application.
What It Helps Fix
- Low or spongy brake pedal feel
- Internal master cylinder leakage
- Brake fluid loss at the hydraulic unit
- Uneven or inconsistent brake pressure
- Brake performance decline from a worn master cylinder
Installation Notes and Tips
Verify the vehicle is a 2015-2017 Ford F-150 with front disc brakes before installation. This master cylinder does not include a reservoir, cap, push rod, brake booster, sensor, or mounting hardware, so reuse or source the required related components as needed. Bench bleeding the master cylinder before final installation helps reduce trapped air in the hydraulic system and supports proper pedal feel after service.
Quality Assurance
MPA Electrical uses OE sample references and strict testing protocols to validate brake master cylinders against original specifications. That process supports consistent hydraulic performance and proper fitment for the Ford F-150 application covered by NM4308.
| Brand | MPA Electrical |
|---|---|
| Part Number | NM4308 |
| Position | New with front disc brakes |
| Mounting Hardware Included | No |
| Grade Type | Standard replacement |
| Gasket Or Seal Included | Yes |
| Mounting Hole Quantity | 2 |
| Master Cylinder Bore Diameter | 1.252 |
| Brake Booster Included | No |
| Master Cylinder Cap Included | No |
| Master Cylinder Material | Aluminum |
| Push Rod Included | No |
| Reservoir Included | No |
| Sensor Included | No |
| Mounting Hole Diameter | 0.354 |
| Mounting Bracket Included | No |
| Brake Pressure Switch(s) Included | No |
| Product Condition | New |
This part fits 3 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2017 | Ford | F-150 | N/A | New with front disc brakes |
| 2016 | Ford | F-150 | N/A | New with front disc brakes |
| 2015 | Ford | F-150 | N/A | New with front disc brakes |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
