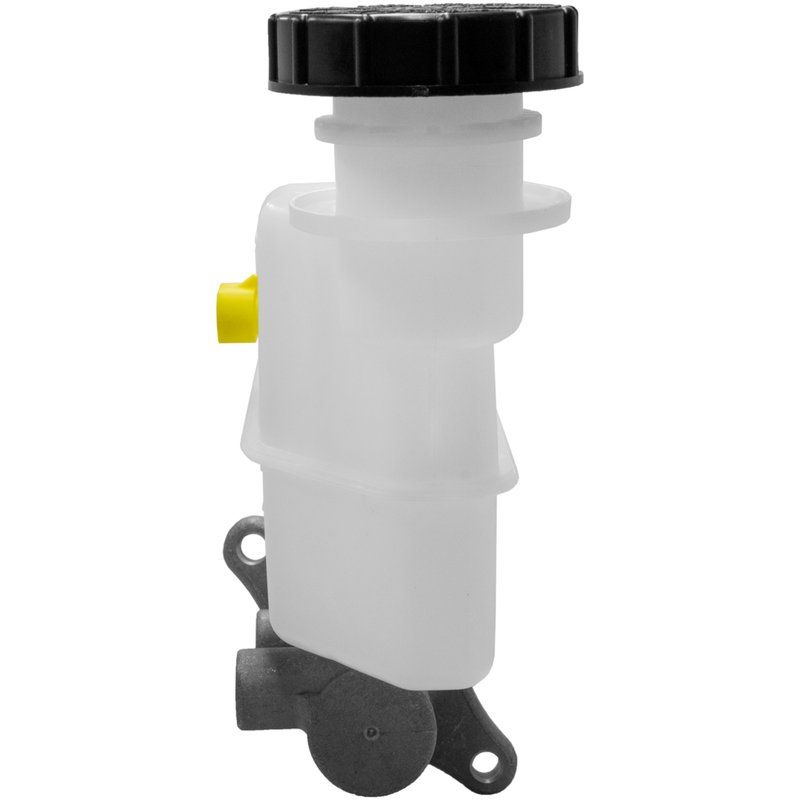

MPA Electrical NM4332 Brake Master Cylinder

Brake Master Cylinder for Dodge Dart

Restore consistent brake pedal response with this MPA Electrical brake master cylinder for the 2014-2016 Dodge Dart with front disc brakes. This new, standard replacement unit is built with an aluminum body, plastic reservoir, and DOT 3 fluid compatibility for a direct hydraulic service replacement.

MPA Electrical’s New with front disc brakes product line focuses on OE-style brake hydraulic replacements for vehicles that need dependable stopping performance after master cylinder wear or internal seal failure. Part number NM4332 is tested against OE specifications using controlled procedures and sample-based reference data to help deliver consistent operation out of the box.

Key Features

• Fits 2014-2016 Dodge Dart, front disc brakes
• Brake master cylinder, standard replacement grade
• Aluminum master cylinder body with plastic reservoir
• 0.9375 in. bore diameter
• Reservoir included with cap and gasket/seal included
• Two mounting holes; 0.358 in. mounting hole diameter
• Uses DOT 3 brake fluid
• New condition, part number NM4332

Detailed Description

This brake master cylinder is engineered for the Dodge Dart brake hydraulic system and is intended for vehicles equipped with front disc brakes. It includes the reservoir, cap, and seal, while omitting the brake booster, push rod, sensor, mounting bracket, brake pressure switch, and mounting hardware. The 0.9375-inch bore size and aluminum construction support proper hydraulic pressure transfer for everyday braking service. If you are replacing a worn or leaking master cylinder on a 2014, 2015, or 2016 Dodge Dart, NM4332 provides a direct-fit service part for the original brake system layout.

This part cross-references 68192615AA for the same application.

Common Problems This Part Can Address

• Low or sinking brake pedal
• Internal master cylinder fluid bypass
• Brake fluid leakage at the master cylinder
• Uneven or inconsistent brake pedal feel
• Loss of hydraulic pressure in the brake system

Installation Notes and Tips

Bench bleed the master cylinder before installation to reduce trapped air in the hydraulic circuit. Verify DOT 3 fluid compatibility with the vehicle’s brake system and inspect the brake lines, booster interface, and reservoir connections for wear or contamination before final assembly. Confirm the vehicle is a 2014-2016 Dodge Dart with front disc brakes and match the bore and mounting configuration to the original unit.

Quality Assurance

MPA Electrical tests each brake master cylinder against OE specifications using proprietary processes and strict protocols to help ensure consistent braking performance after installation.
