OE Quality
60-Day Returns

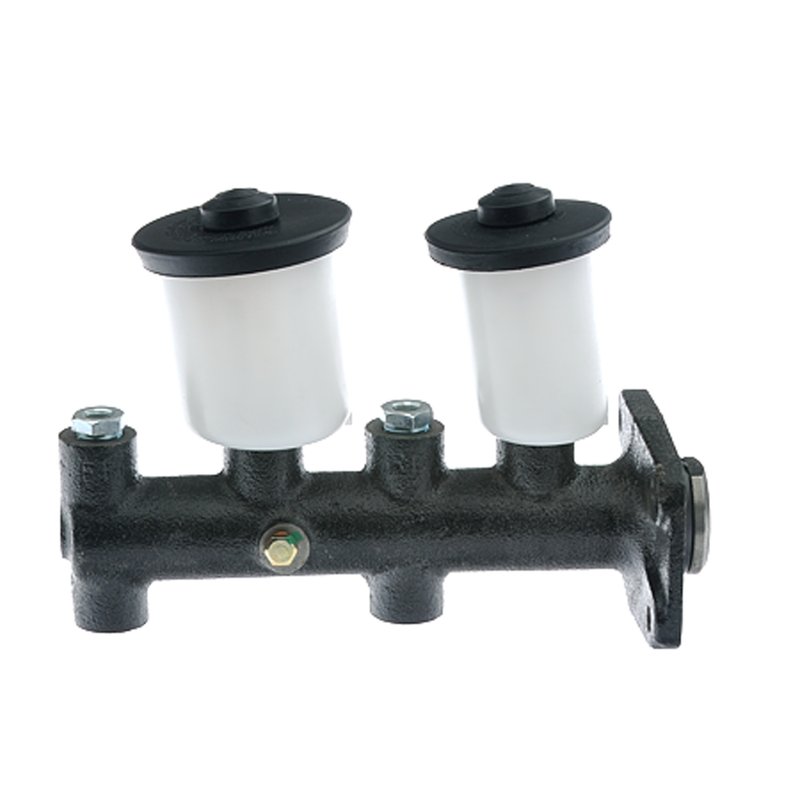

MPA Electrical NM51733 Brake Master Cylinder
Brake Master Cylinder for Toyota Land Cruiser
Restore consistent brake pedal response with this new brake master cylinder from MPA Electrical. Built for 1976-1980 Toyota Land Cruiser models with front disc brakes, part number NM51733 is a standard replacement brake hydraulic component for direct service use.
Key Features
- Fits 1976-1980 Toyota Land Cruiser, N/A
- 0.875-inch master cylinder bore diameter
- Cast iron master cylinder body
- Reservoir included
- Cap included
- Gasket or seal included
- Uses DOT 3 brake fluid
- Four mounting holes with 0.344-inch mounting hole diameter
- New condition standard replacement part
Product Details
MPA Electrical NM51733 is a brake master cylinder engineered for brake hydraulic service on Toyota Land Cruiser applications with front disc brakes. The cast iron construction, 0.875-inch bore, and included reservoir, cap, and seal support proper hydraulic pressure delivery for braking system repair. This part cross-references 4720160050 for the same application.
Common Repair Applications
- Hard or inconsistent brake pedal feel
- Loss of hydraulic pressure in the brake system
- Brake fluid leakage at the master cylinder
- Reduced braking performance after master cylinder wear
- Brake system restoration on Toyota Land Cruiser front disc brake models
Installation Notes
Verify bore size, mounting hole layout, and brake booster interface before installation. Mounting hardware, brake booster, push rod, brake pressure switch, and sensor are not included. Use clean DOT 3 brake fluid and bleed the hydraulic system thoroughly after installation. Confirm the vehicle is a 1976-1980 Toyota Land Cruiser with front disc brakes before ordering NM51733.
Quality Assurance
MPA Electrical tests each master cylinder against OE specifications using controlled processes and an OE sample library to help ensure consistent braking performance out of the box. NM51733 is a new standard replacement brake master cylinder for Toyota Land Cruiser brake hydraulic service.
| Brand | MPA Electrical |
|---|---|
| Part Number | NM51733 |
| Position | New with front disc brakes |
| Mounting Hardware Included | No |
| Grade Type | Standard replacement |
| Gasket Or Seal Included | Yes |
| Mounting Hole Quantity | 4 |
| Master Cylinder Bore Diameter | 0.875 |
| Brake Booster Included | No |
| Master Cylinder Cap Included | Yes |
| Master Cylinder Material | Cast iron |
| Push Rod Included | No |
| Reservoir Included | Yes |
| Sensor Included | No |
| Mounting Hole Diameter | 0.344 |
| Mounting Bracket Included | No |
| Brake Pressure Switch(s) Included | No |
| Fluid Type | Dot 3 |
| Product Condition | New |
This part fits 5 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1980 | Toyota | Land Cruiser | N/A | New with front disc brakes |
| 1979 | Toyota | Land Cruiser | N/A | New with front disc brakes |
| 1978 | Toyota | Land Cruiser | N/A | New with front disc brakes |
| 1977 | Toyota | Land Cruiser | N/A | New with front disc brakes |
| 1976 | Toyota | Land Cruiser | N/A | New with front disc brakes |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
