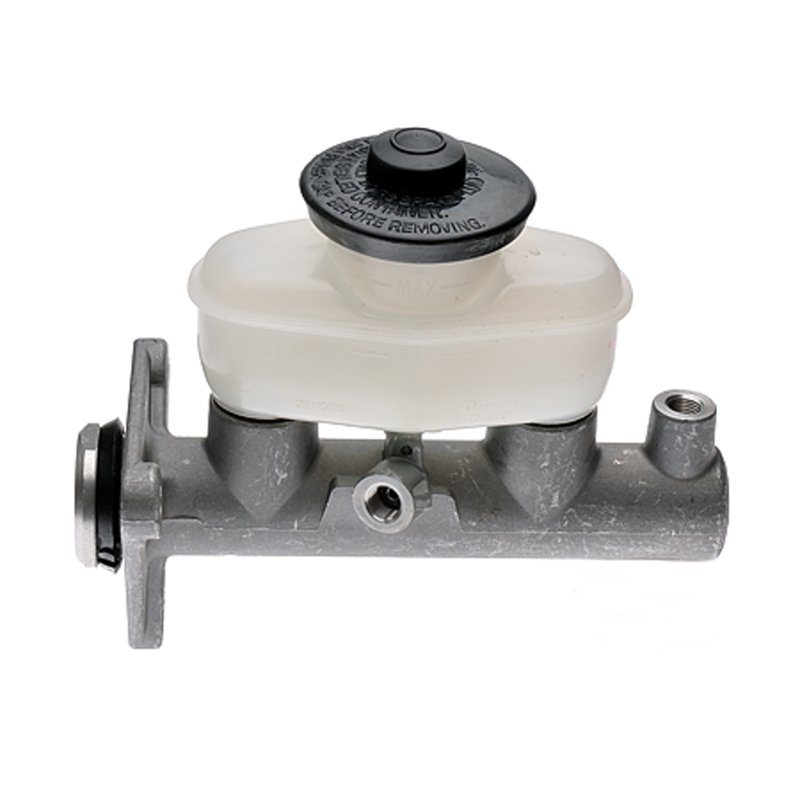

MPA Electrical NM52239 Brake Master Cylinder
Brake Master Cylinder for Toyota Celica
Restore consistent brake pedal response with this MPA Electrical brake master cylinder for the 1986-1988 Toyota Celica with front disc brakes. Part number NM52239 is a standard replacement unit built with an aluminum body, plastic reservoir, and included cap and seals for a direct hydraulic service replacement.
Key Features
- Fits 1986-1988 Toyota Celica, front disc brakes
- Brake master cylinder with 0.9375 in. bore diameter
- Aluminum master cylinder construction with plastic reservoir
- Reservoir included with cap and gasket/seal included
- Uses DOT 3 brake fluid
- Three mounting holes; mounting hardware not included
- New condition standard replacement part
Product Details
MPA Electrical NM52239 is engineered as a brake hydraulic replacement for Toyota Celica models equipped with front disc brakes. The cylinder is tested against OE specifications using sample-based validation and controlled inspection processes to help deliver consistent hydraulic performance after installation. This part cross-references Toyota applications listed under 4720120400 and 4720120401 for the same application.
The MPA Electrical New with front disc brakes line focuses on direct-fit brake hydraulic components for vehicles that need OE-style service replacement. For Toyota Celica brake master cylinder replacement, NM52239 provides the core hydraulic housing, reservoir, cap, and seal components needed for a proper brake system repair.
Common Repair Symptoms
- Low or sinking brake pedal
- Brake fluid leakage at the master cylinder
- Uneven or inconsistent braking response
- Internal hydraulic bypass causing pedal fade
- Brake warning concerns related to master cylinder wear
Installation Notes
- Verify bore diameter, mounting hole count, and reservoir layout before installation.
- Bench bleed the master cylinder before connecting brake lines.
- Use clean DOT 3 brake fluid and flush the system as needed.
- Mounting hardware, booster, push rod, and bracket are not included.
- Confirm fitment for 1986-1988 Toyota Celica, front disc brakes, before final assembly.
Quality Assurance
MPA Electrical tests brake master cylinders against OE specifications to help ensure proper hydraulic function out of the box. NM52239 is a new standard replacement brake master cylinder for Toyota Celica applications requiring front disc brake service.
| Brand | MPA Electrical |
|---|---|
| Part Number | NM52239 |
| Position | New with front disc brakes |
| Reservoir Material | Plastic |
| Mounting Hardware Included | No |
| Grade Type | Standard replacement |
| Gasket Or Seal Included | Yes |
| Mounting Hole Quantity | 3 |
| Master Cylinder Bore Diameter | 0.9375 |
| Brake Booster Included | No |
| Master Cylinder Cap Included | Yes |
| Master Cylinder Material | Aluminum |
| Push Rod Included | No |
| Reservoir Included | Yes |
| Sensor Included | No |
| Mounting Hole Diameter | 0.356 |
| Mounting Bracket Included | No |
| Brake Pressure Switch(s) Included | No |
| Fluid Type | Dot 3 |
| Product Condition | New |
This part fits 3 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 1988 | Toyota | Celica | N/A | New with front disc brakes | ||
| 1987 | Toyota | Celica | N/A | New with front disc brakes | ||
| 1986 | Toyota | Celica | 2.0L | L4 | N/A | New with front disc brakes |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
