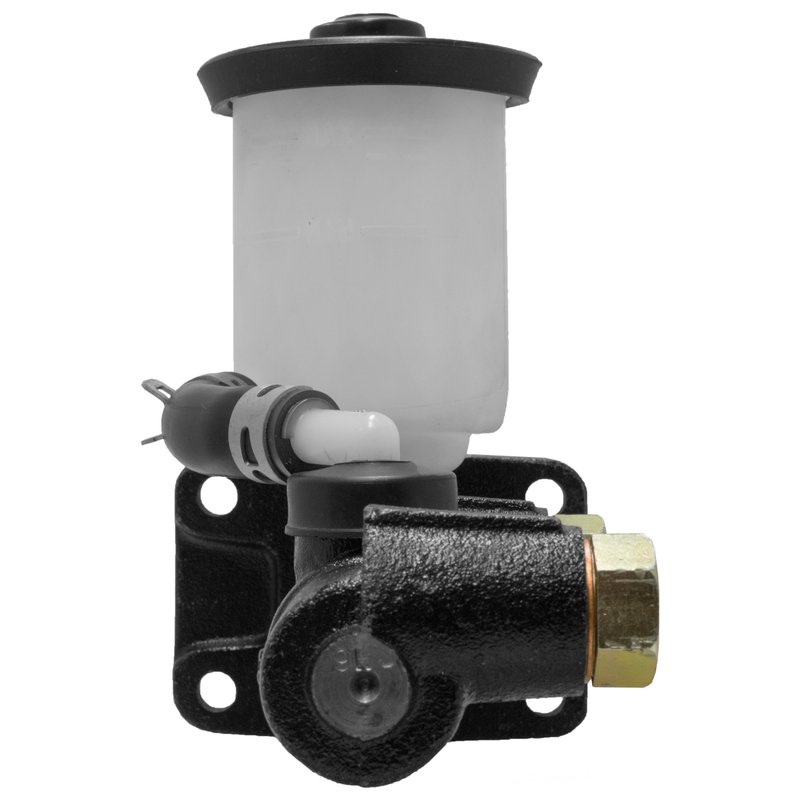

MPA Electrical NM52248 Brake Master Cylinder
| Brand | MPA Electrical NM52248 |
|---|---|
| Reservoir Material | Plastic |
| Mounting Hardware Included | No |
| Grade Type | Standard replacement |
| Gasket Or Seal Included | Yes |
| Mounting Hole Quantity | 4 |
| Master Cylinder Bore Diameter | 0.938 |
| Brake Booster Included | No |
| Master Cylinder Cap Included | Yes |
| Master Cylinder Material | Cast iron |
| Push Rod Included | No |
| Reservoir Included | Yes |
| Sensor Included | No |
| Mounting Hole Diameter | 0.36 |
| Mounting Bracket Included | No |
| Brake Pressure Switch(s) Included | No |
| Fluid Type | Dot 3 |
| Product Condition | New |
| Product line | New with front disc brakes |
| Fits | Toyota · 4 vehicles |
OE-spec tested. Built using proprietary processes and strict protocols for consistent braking performance.
Standard replacement. Cast iron master cylinder with a plastic reservoir for the listed application.
Complete service parts. Includes reservoir, cap, and gasket or seal for brake hydraulic repair.
Cross-references 4720135370, 4720135490 and 4720135551 for the same application. See all 4.
Brake Master Cylinder Overview
The MPA Electrical NM52248 brake master cylinder is a standard replacement for vehicles equipped with front disc brakes. It is built to restore hydraulic braking performance with OE-spec testing and consistent output.
Fits 1985-1988 Toyota Pickup, N/A.
Key Features
- Standard replacement brake master cylinder for hydraulic brake service
- Cast iron body with a plastic reservoir
- 0.938 bore diameter for the specified application
- Includes reservoir, cap, and gasket or seal
- Uses DOT 3 brake fluid
Detailed Description
MPA Electrical NM52248 is engineered as a direct hydraulic replacement for the listed Toyota Pickup applications with front disc brakes. The cast iron master cylinder body and included plastic reservoir are matched to the application, while OE-based testing helps deliver consistent brake pedal response after installation. The NM52248 is a practical choice when the original master cylinder shows internal wear, leakage, or reduced hydraulic pressure. This part cross-references Toyota part numbers 4720135370 and 4720135490 for the same application.
Common Issues It Can Help Solve
- Soft or sinking brake pedal
- External brake fluid leakage at the master cylinder
- Reduced hydraulic pressure in the brake system
- Uneven or inconsistent pedal feel
Installation Notes and Tips
Verify the vehicle uses front disc brakes and confirm the bore size, mounting hole pattern, and fluid type before installation. Bench bleeding the master cylinder before final installation helps reduce trapped air in the hydraulic system. Use only DOT 3 brake fluid as specified.
Quality Assurance
MPA Electrical tests each unit against OE specifications using proprietary processes and strict protocols to support consistent braking performance. Part number NM52248 is supplied as a new standard replacement component.
| Year | Make | Model | Drive Type | Liters | Cylinders | Fuel Type | Notes |
|---|---|---|---|---|---|---|---|
| 1988 | Toyota | Pickup | RWD | 2.4L | L4 | — | New with front disc brakes |
| 1987 | Toyota | Pickup | RWD | — | — | GAS | New with front disc brakes |
| 1986 | Toyota | Pickup | RWD | — | — | GAS | New with front disc brakes |
| 1985 | Toyota | Pickup | — | — | — | GAS | New with front disc brakes |
