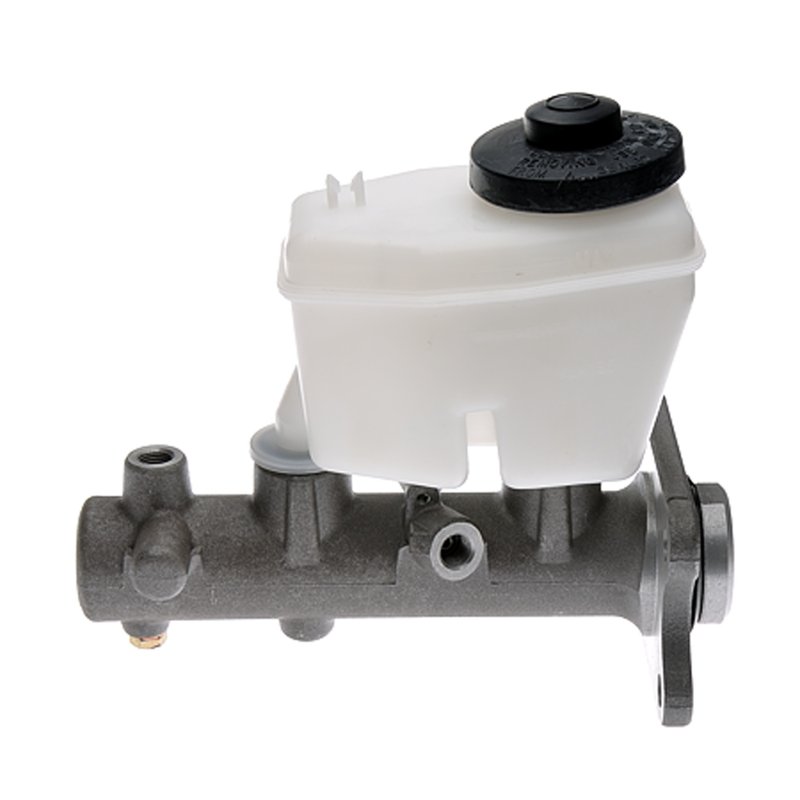

MPA Electrical NM52711 Brake Master Cylinder
Brake Master Cylinder for Toyota 4Runner
Restore consistent brake pedal response with this new brake master cylinder from MPA Electrical. Built for 1994-1995 Toyota 4Runner models with front disc brakes, Part Number NM52711 is a standard replacement brake hydraulic component for direct-service applications.
MPA Electrical’s New with front disc brakes product line focuses on OE-style brake hydraulic replacements that are tested against OE specifications for consistent performance out of the box. This NM52711 master cylinder is built with an aluminum body, plastic reservoir, included reservoir cap, and DOT 3 fluid compatibility.
- Fits 1994-1995 Toyota 4Runner, front disc brakes
- Standard replacement brake master cylinder
- Aluminum master cylinder construction
- Plastic reservoir with cap included
- 1.0625 in. bore diameter
- Gasket or seal included
- 4 mounting holes with 0.36 in. mounting hole diameter
- DOT 3 brake fluid type
- New condition
Detailed Product Overview
MPA Electrical NM52711 is a brake master cylinder engineered for brake hydraulic service on the Toyota 4Runner. It is specified for 1994-1995 Toyota 4Runner applications with front disc brakes and uses a 1.0625-inch bore diameter to match the intended hydraulic setup. The aluminum master cylinder body and plastic reservoir support a direct replacement approach for vehicles needing renewed brake pressure delivery. This part cross-references 472013D240 for the same application.
Common Brake Issues Addressed
- Low or inconsistent brake pedal feel
- Internal master cylinder leakage
- Brake fluid loss at the hydraulic unit
- Reduced braking response from worn seals
- Brake warning symptoms tied to master cylinder wear
Installation Notes and Tips
Verify the vehicle is a 1994-1995 Toyota 4Runner with front disc brakes before installation. Bench bleeding the master cylinder before final installation helps remove trapped air from the hydraulic circuit. Transfer any required components not included with the unit, and confirm the brake system is filled with DOT 3 fluid after installation. Check all connections for leaks and pedal firmness before returning the vehicle to service.
Quality Assurance
MPA Electrical tests each brake master cylinder against OE specifications using proprietary processes and strict protocols to help ensure consistent braking performance after installation.
| Brand | MPA Electrical |
|---|---|
| Part Number | NM52711 |
| Position | New with front disc brakes |
| Reservoir Material | Plastic |
| Mounting Hardware Included | No |
| Grade Type | Standard replacement |
| Gasket Or Seal Included | Yes |
| Mounting Hole Quantity | 4 |
| Master Cylinder Bore Diameter | 1.0625 |
| Brake Booster Included | No |
| Master Cylinder Cap Included | Yes |
| Master Cylinder Material | Aluminum |
| Push Rod Included | No |
| Reservoir Included | Yes |
| Sensor Included | No |
| Mounting Hole Diameter | 0.36 |
| Mounting Bracket Included | No |
| Brake Pressure Switch(s) Included | No |
| Fluid Type | Dot 3 |
| Product Condition | New |
This part fits 2 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1995 | Toyota | 4Runner | N/A | New with front disc brakes |
| 1994 | Toyota | 4Runner | N/A | New with front disc brakes |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
