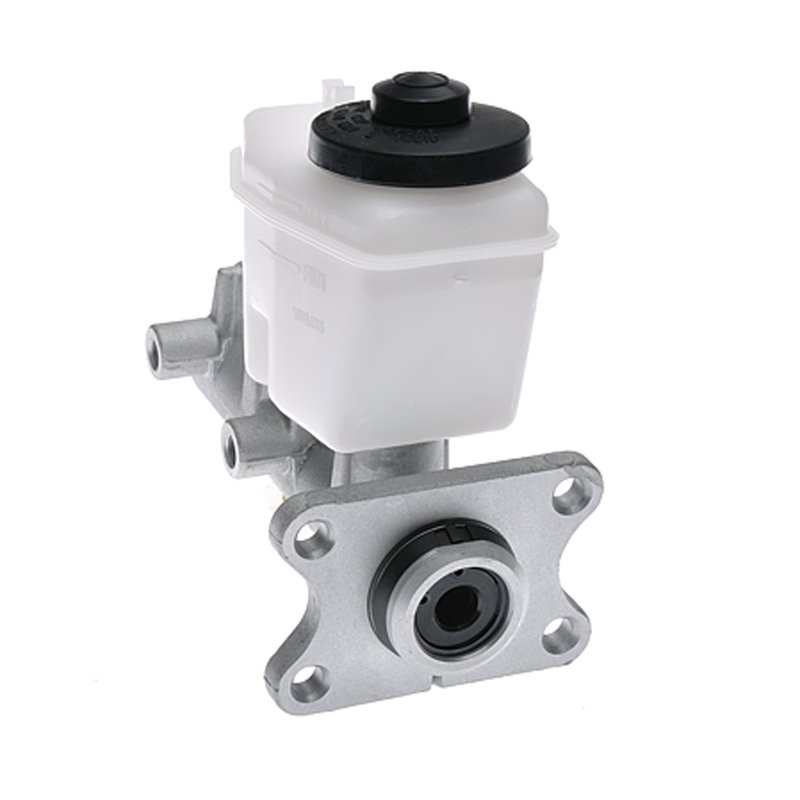

MPA Electrical NM52713 Brake Master Cylinder
Brake Master Cylinder for Toyota Front Disc Brakes
Restore consistent brake pedal response with this MPA Electrical brake master cylinder, part number NM52713. It is a standard replacement unit built with an aluminum body, plastic reservoir, and DOT 3 fluid compatibility for select Toyota trucks and SUVs with front disc brakes.
Compatible with 1993-1995 Toyota 4Runner, 1993-1995 Toyota Pickup, and 1994 Toyota T100, this master cylinder is built for direct brake hydraulic service on the listed applications. The NM52713 is also a practical OE-style replacement for drivers searching for a Toyota 4Runner brake master cylinder or Toyota Pickup brake master cylinder by part number.
Key Features
- Brand: MPA Electrical
- Part number: NM52713
- Brake master cylinder for brake hydraulic repair
- Aluminum master cylinder body with plastic reservoir
- 1-inch bore diameter
- Reservoir included with cap and gasket/seal included
- 4 mounting holes
- Standard replacement grade
- DOT 3 brake fluid type
- New condition
Product Details
MPA Electrical brake master cylinders are engineered to restore braking performance using OE sample references and testing protocols aligned to OE specifications. For this application, NM52713 includes the reservoir, cap, and gasket/seal, while omitting the brake booster, push rod, sensor, pressure switch, mounting bracket, and mounting hardware. The result is a straightforward replacement for Toyota 4Runner, Toyota Pickup, and Toyota T100 brake hydraulic service where the original master cylinder has worn, leaked, or lost pedal consistency.
This part cross-references Toyota 472013D141 and 4720104020 for the same application.
Common Issues This Part Can Address
- Low or sinking brake pedal
- External brake fluid leakage at the master cylinder
- Uneven or inconsistent hydraulic pressure
- Soft pedal feel after master cylinder wear
- Brake warning symptoms tied to hydraulic loss
Installation Notes
Verify bore size, mounting pattern, and reservoir configuration before installation. Bench bleeding is recommended before connecting brake lines to help remove trapped air from the master cylinder. Use only DOT 3 brake fluid and inspect the brake system for leaks, contaminated fluid, or worn components before returning the vehicle to service. Confirm fitment for 1993-1995 Toyota 4Runner, 1993-1995 Toyota Pickup, and 1994 Toyota T100 with front disc brakes.
Quality Assurance
Each unit is tested against OE specifications using proprietary inspection processes and strict protocols to support consistent braking performance out of the box.
| Brand | MPA Electrical |
|---|---|
| Part Number | NM52713 |
| Position | New with front disc brakes |
| Reservoir Material | Plastic |
| Mounting Hardware Included | No |
| Grade Type | Standard replacement |
| Gasket Or Seal Included | Yes |
| Mounting Hole Quantity | 4 |
| Master Cylinder Bore Diameter | 1 |
| Brake Booster Included | No |
| Master Cylinder Cap Included | Yes |
| Master Cylinder Material | Aluminum |
| Push Rod Included | No |
| Reservoir Included | Yes |
| Sensor Included | No |
| Mounting Hole Diameter | 0.35 |
| Mounting Bracket Included | No |
| Brake Pressure Switch(s) Included | No |
| Fluid Type | Dot 3 |
| Product Condition | New |
This part fits 7 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 1995 | Toyota | 4Runner | N/A | New with front disc brakes | ||
| 1995 | Toyota | Pickup | 3.0L | V6 | N/A | New with front disc brakes |
| 1994 | Toyota | 4Runner | N/A | New with front disc brakes | ||
| 1994 | Toyota | Pickup | 3.0L | V6 | N/A | New with front disc brakes |
| 1994 | Toyota | T100 | N/A | New with front disc brakes | ||
| 1993 | Toyota | 4Runner | N/A | New with front disc brakes | ||
| 1993 | Toyota | Pickup | 3.0L | V6 | N/A | New with front disc brakes |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
