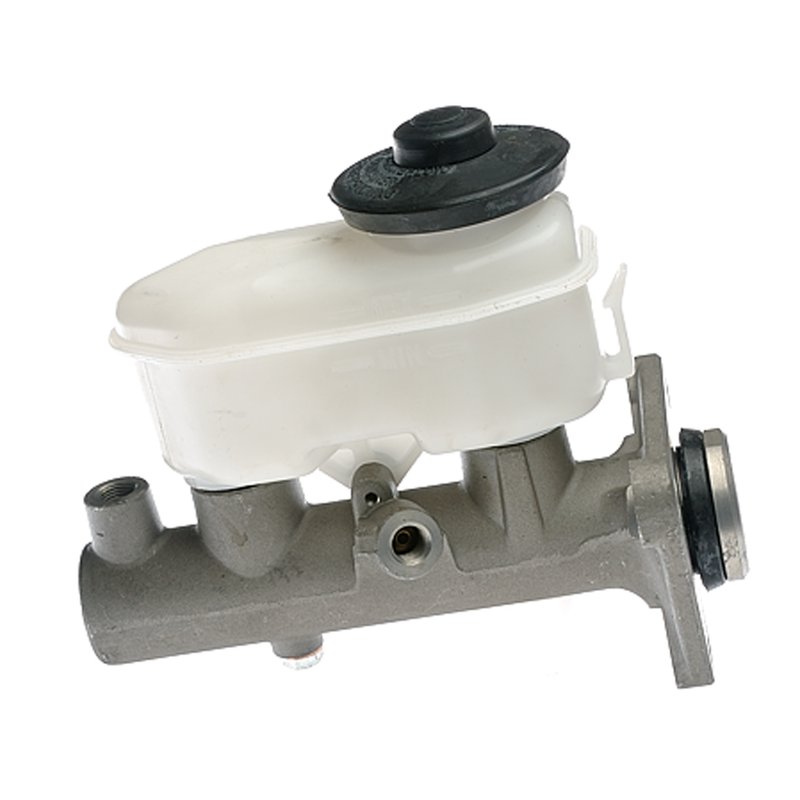

MPA Electrical NM55022 Brake Master Cylinder

Brake Master Cylinder for Toyota Camry

Restore consistent brake pedal response with this MPA Electrical brake master cylinder for the 1992-1994 Toyota Camry with front disc brakes. Built as a standard replacement, Part Number NM55022 is engineered for direct hydraulic performance and OE-style fitment.

MPA Electrical’s New with front disc brakes product line focuses on replacement brake hydraulics for specific vehicle applications. This master cylinder is tested against OE specifications using controlled validation processes to help deliver reliable braking performance after installation.

Key Features

• Brake master cylinder for 1992-1994 Toyota Camry, front disc brakes
• Standard replacement grade
• Aluminum master cylinder body with plastic reservoir
• 1-inch bore diameter
• Reservoir included with cap and gasket/seal included
• Uses DOT 3 brake fluid
• Three mounting holes with 0.364-inch mounting hole diameter
• New condition

Detailed Description

MPA Electrical NM55022 is a brake master cylinder designed for Toyota Camry brake hydraulic service on 1992, 1993, and 1994 models with front disc brakes. The aluminum housing and integrated reservoir support dependable fluid control, while the 1-inch bore size matches the specified application for proper pedal feel and hydraulic output. This part cross-references Toyota OE numbers 4720106010 and 4720133030 for the same application.

Use NM55022 when replacing a worn or leaking master cylinder on a Toyota Camry. The included reservoir, cap, and seal help simplify the rebuild path for the brake hydraulic system, while the standard replacement design supports direct service on the listed vehicle fitment.

What This Part Helps Solve

• Low or inconsistent brake pedal response
• Brake fluid leakage from the master cylinder body or seals
• Internal hydraulic bypass that reduces braking pressure
• Soft pedal feel caused by worn master cylinder components
• Brake system performance loss on a 1992-1994 Toyota Camry with front disc brakes

Installation Notes and Tips

Before installation, confirm the vehicle is a 1992-1994 Toyota Camry with front disc brakes and verify the bore size and mounting pattern match the original unit. Bench bleeding the master cylinder before final installation helps remove trapped air from the hydraulic circuit. Use clean DOT 3 brake fluid and inspect the brake lines, booster interface, and reservoir connections for wear or contamination during service.

Quality Assurance

MPA Electrical tests each unit against OE specifications using proprietary processes and strict protocols to help ensure consistent braking performance out of the box. Part Number NM55022 is a new brake master cylinder built for the listed Toyota Camry application.
