OE Quality
60-Day Returns

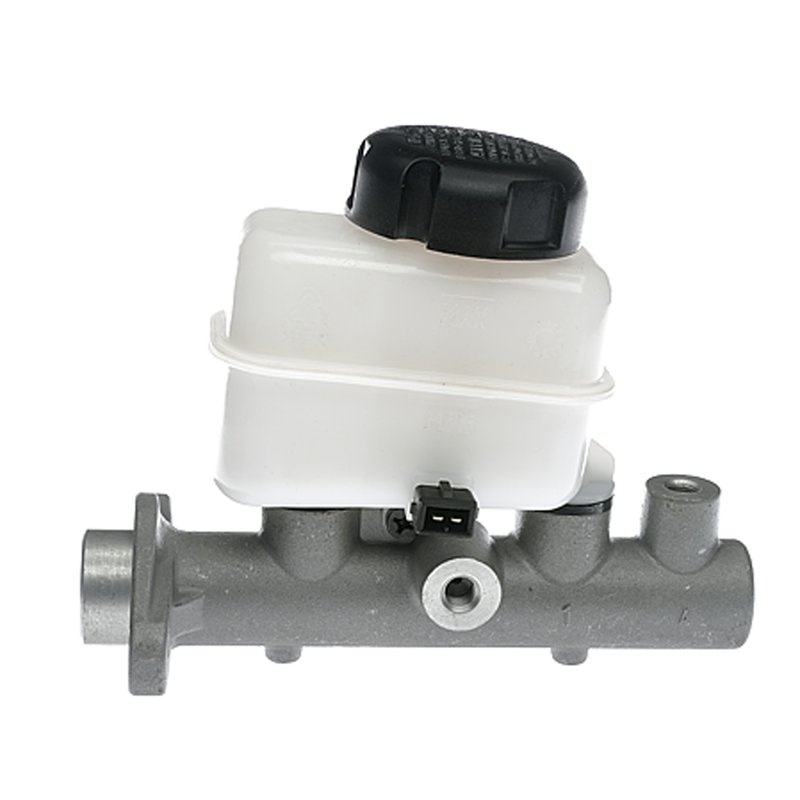

MPA Electrical NM55158 Brake Master Cylinder
Brake Master Cylinder for Hyundai Santa Fe
Restore consistent brake pedal response with this MPA Electrical brake master cylinder for the 2001-2006 Hyundai Santa Fe with front disc brakes. Part number NM55158 is a standard replacement master cylinder built with an aluminum body, plastic reservoir, and included cap for a direct hydraulic service replacement.
MPA Electrical’s New with front disc brakes product line focuses on OE-style brake hydraulic replacements for vehicles equipped with front disc brake systems. This NM55158 master cylinder is tested against OE specifications using controlled inspection processes to help deliver reliable braking performance after installation.
- Fits 2001-2006 Hyundai Santa Fe, N/A
- Standard replacement brake master cylinder
- Aluminum master cylinder body with plastic reservoir
- 1-inch bore diameter for brake hydraulic service
- Reservoir and master cylinder cap included
- Uses DOT 3 or DOT 4 brake fluid
- Two mounting holes with 0.337-inch mounting hole diameter
- New condition replacement part
Detailed Product Overview
The NM55158 brake master cylinder is built for Hyundai Santa Fe models listed with front disc brakes, providing the hydraulic pressure needed for normal brake system operation. It is a direct-fit brake hydraulics replacement for 2001, 2002, 2003, 2004, 2005, and 2006 Hyundai Santa Fe applications, and it cross-references Genuine 5911026050 and interchange 5851026050 for the same application. The aluminum housing, integrated reservoir, and included cap support a clean replacement of a worn or leaking master cylinder.
Common Problems This Part Can Help Solve
- Low or inconsistent brake pedal feel
- External brake fluid leakage at the master cylinder
- Loss of hydraulic pressure in the brake system
- Brake pedal travel that increases over time
- Brake warning symptoms related to master cylinder wear
Installation Notes and Tips
Before installation, confirm the vehicle is a 2001-2006 Hyundai Santa Fe with front disc brakes and verify the brake fluid specification. This master cylinder does not include mounting hardware, a brake booster, push rod, or seals, so transfer or source any required related components during service. Bench bleeding and careful system bleeding are recommended after installation to remove trapped air and restore pedal firmness.
Quality Assurance
MPA Electrical tests each brake master cylinder against OE specifications using proprietary inspection processes and strict protocols to help ensure consistent braking performance out of the box. Part number NM55158 is a new standard replacement brake master cylinder for Hyundai Santa Fe brake hydraulic service.
| Brand | MPA Electrical |
|---|---|
| Part Number | NM55158 |
| Position | New with front disc brakes |
| Reservoir Material | Plastic |
| Mounting Hardware Included | No |
| Grade Type | Standard replacement |
| Gasket Or Seal Included | No |
| Mounting Hole Quantity | 2 |
| Master Cylinder Bore Diameter | 1 |
| Brake Booster Included | No |
| Master Cylinder Cap Included | Yes |
| Master Cylinder Material | Aluminum |
| Push Rod Included | No |
| Reservoir Included | Yes |
| Sensor Included | No |
| Mounting Hole Diameter | 0.337 |
| Mounting Bracket Included | No |
| Brake Pressure Switch(s) Included | No |
| Fluid Type | Dot 3 or dot 4 |
| Product Condition | New |
This part fits 6 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2006 | Hyundai | Santa Fe | N/A | New with front disc brakes |
| 2005 | Hyundai | Santa Fe | N/A | New with front disc brakes |
| 2004 | Hyundai | Santa Fe | N/A | New with front disc brakes |
| 2003 | Hyundai | Santa Fe | N/A | New with front disc brakes |
| 2002 | Hyundai | Santa Fe | N/A | New with front disc brakes |
| 2001 | Hyundai | Santa Fe | N/A | New with front disc brakes |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
